5" 800x480 TFT LCD Display with capacitive touch panel
Regular price:
€36.50
・Kup teraz i zapłać za 30 dni
product unavailable
Description
Description

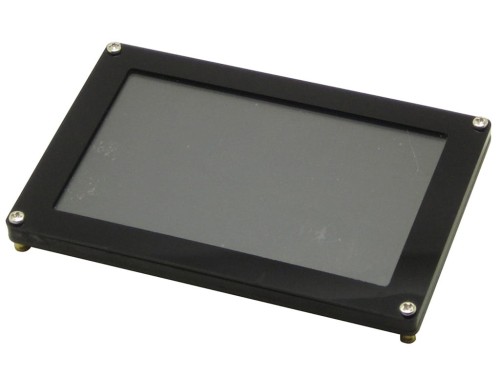

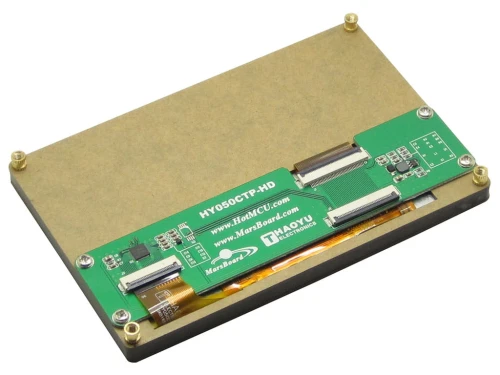

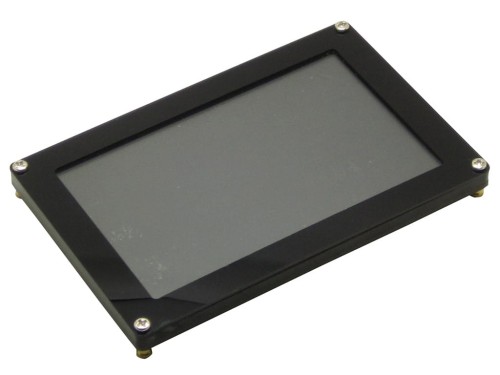

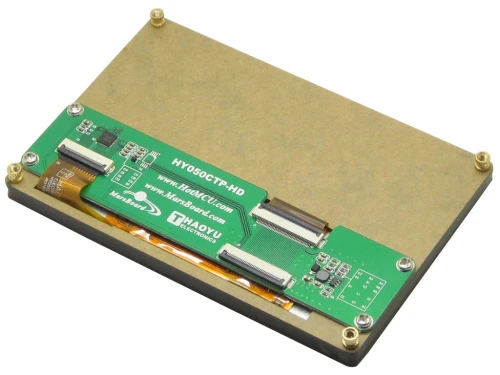

The HY050CTP-HD 5 inch LCD Module is designed to work with HAOYU Electronics's ARM development boards and MarsBoard's single board computers. It has one 5 inch TFT LCD including capacitive touch screen with 800 by 480 pixels resolution.
Features
| LCD size | 5 inch(Diagonal) |
| Touch Screen Controller | FT5206 |
| LCD Type | TFT |
| Resolution | 800 × 3 (RGB) × 480 |
| Backlight | LED |
| Interface type | RGB |
| Active area | 108 x 64.8 mm |
RGB Pin Assignment
| PIN NO | Symbol | I/O | Function |
| 1 | BLVDD | Power | Backlight power supply connect 5V |
| 2 | BLVDD | Power | Backlight power supply connect 5V |
| 3 | GND | Power | Power ground |
| 4 | VDD | Power | Power supply voltage connect 3.3V |
| 5 | R0 | Input | Red data (LSB) |
| 6 | R1 | Input | Red data |
| 7 | R2 | Input | Red data |
| 8 | R3 | Input | Red data |
| 9 | R4 | Input | Red data |
| 10 | R5 | Input | Red data |
| 11 | R6 | Input | Red data |
| 12 | R7 | Input | Red data (MSB) |
| 13 | G0 | Input | Green data (LSB) |
| 14 | G1 | Input | Green data |
| 15 | G2 | Input | Green data |
| 16 | G3 | Input | Green data |
| 17 | G4 | Input | Green data |
| 18 | G5 | Input | Green data |
| 19 | G6 | Input | Green data |
| 20 | G7 | Input | Green data (MSB) |
| 21 | B0 | Input | Blue data (LSB) |
| 22 | B1 | Input | Blue data |
| 23 | B2 | Input | Blue data |
| 24 | B3 | Input | Blue data |
| 25 | B4 | Input | Blue data |
| 26 | B5 | Input | Blue data |
| 27 | B6 | Input | Blue data |
| 28 | B7 | Input | Blue data (MSB) |
| 29 | GND | Power | Power ground |
| 30 | PCLK | Input | Pixel clock |
| 31 | LCD-BL-EN | Input | LCD backlight on/off, On=1; Off = 0; |
| 32 | HSYNC | Input | Horizontal Sync Signal |
| 33 | VSYNC | Input | Vertical Sync Signal |
| 34 | DE | Input | Data Enable |
| 35 | LCD-BL-ADJ | Input | LCD backlight Control (PWM control) |
| 36 | GND | Power | Power ground |
| 37 | CTP-SDA | Input/Output | CTP I2C SDA |
| 38 | CTP-SCL | Input | CTP I2C SCL |
| 39 | CTP-RST | Input | CTP Reset input |
| 40 | CTP-INT | Output | CTP Interrupt output |
Hardware Specifications
RGB signal interface is compatible with HY070CTP, HY070CTP-HD, HY101CTP.
Software Specifications
LCD display timing is compatible with HY070CTP, capacitive touch driver compatible with HY070CTP, HY070CTP-HD, HY101CTP.
Package content
- 1 x HY050CTP-HD
- 1 x 40 pin connect cable
Documents
HY050CTP-HD LCD DataSheet.pdf
ft5x06 source code application and LCD Timing
FT5x06 DataSheet V4.0.pdf
HY070CTP Dimension.dxf
HY_LCD_Reference Design.pdf
