50A Current Sensor(AC/DC) / Czujnik prądu 50A (AC / DC)
Price:
incl. 23% TAX, excl. shipping costs
17.97
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Vendor:
DFRobot
Product code:
SEN0098
Description
Introduction

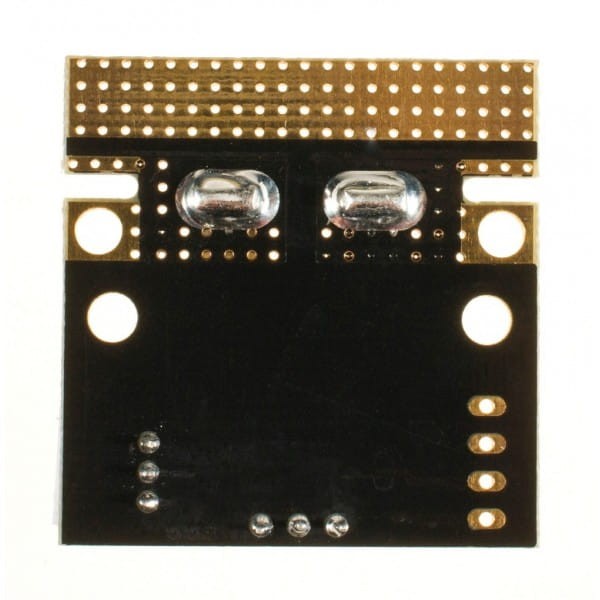

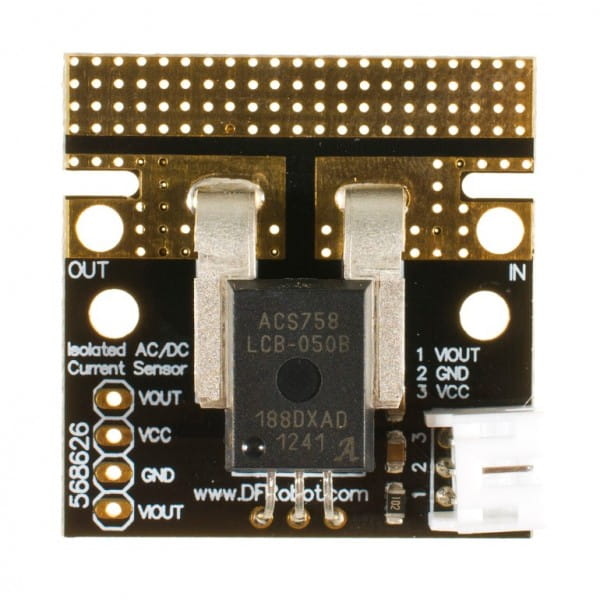

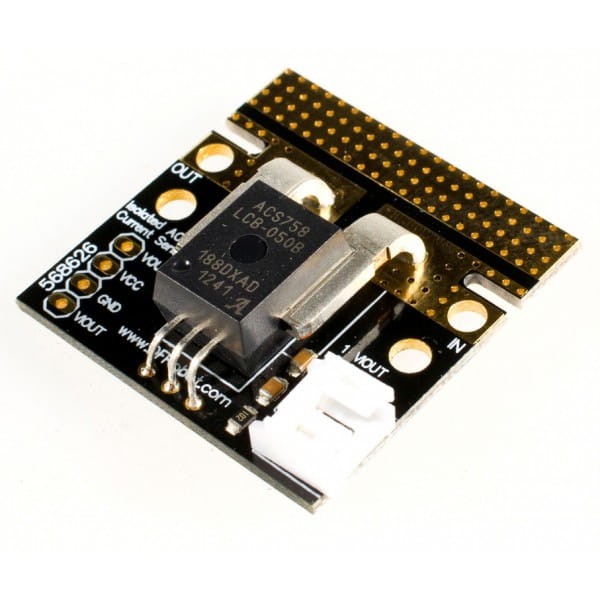

This is a breakout board for the fully integrated Hall Effect based linear ACS758 current sensor. The sensor gives precise current measurement for both AC and DC signals.The thickness of the copper conductor allows survival of the device at high overcurrent conditions.
The ACS758 outputs an analog voltage output signal that varies linearly with sensed current.
This current sensor enables you to monitor currents in your project every second for energy saving or circuit protecting purposes.
Features
- Arduino interface compatible
- 120 kHz typical bandwidth
- 3 μs output rise time in response to step input current
- Output voltage proportional to AC or DC currents
- Factory-trimmed for accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
- Total output error improvement through gain and offset trim over temperature
- Monolithic Hall IC for high reliability
- Ultra-low power loss: 100 μΩ internal conductor resistance
Specifications
- Operating Voltage(analog): 5V
- Peak Measuring Voltage:3000V(AC),500V(DC)
- Current Measuring Rang:-50~50A
- Sensitivity:40 mV/A
- Operating Temperature: -40~150°C
- Dimension:34x34mm
Shipping List
- Sensor (1 unit)
- Analog Sensor Cable (1 unit) (SKU:FIT0031)
