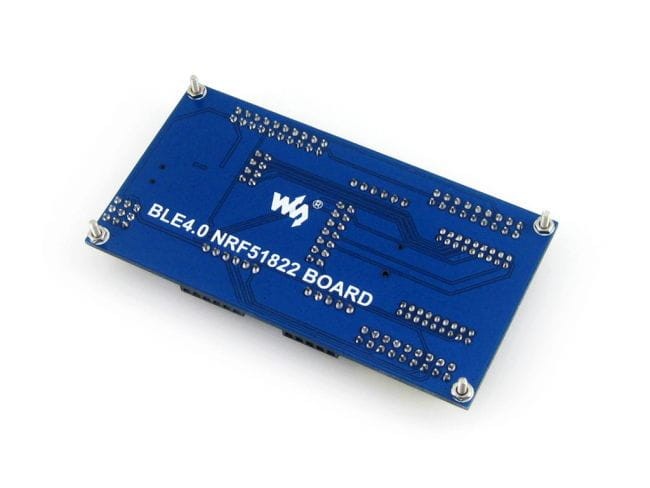

BLE4.0 Bluetooth 2.4G Mother Board
product unavailable
Description
Overview
BLE400 is a mother board designed for BLE4.0 Bluetooth 2.4G Wireless Module.
BLE400 Features
- Onboard battery holder, multi power supplies are available
- All the IOs are accessible for easy expansion
- Integrates CP2102 for debugging
- LEDs and user keys, compatible with other official boards, easy to use

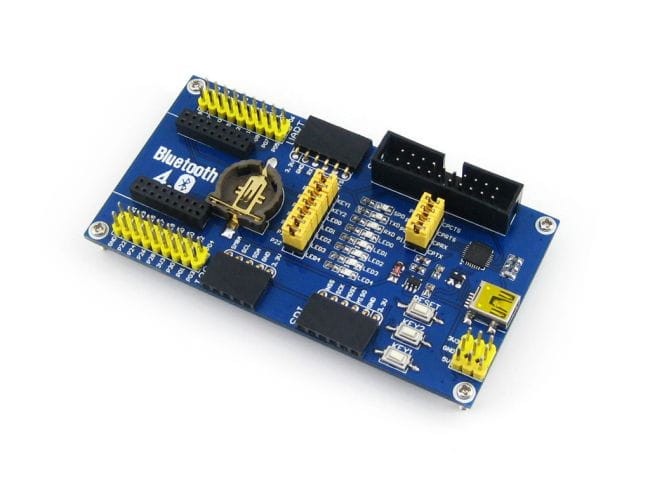

What's on the BLE400

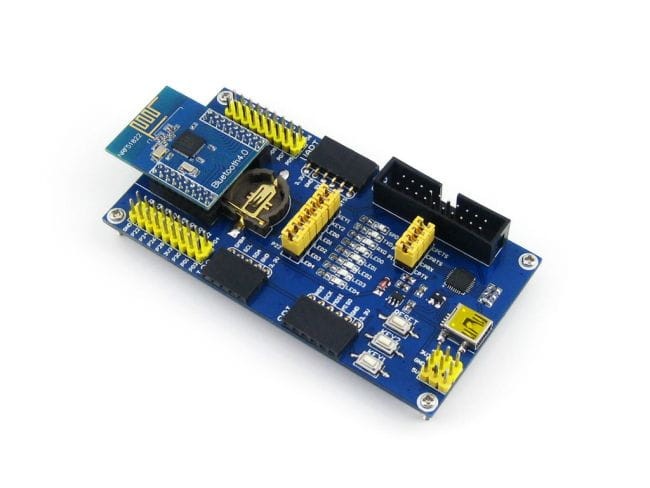

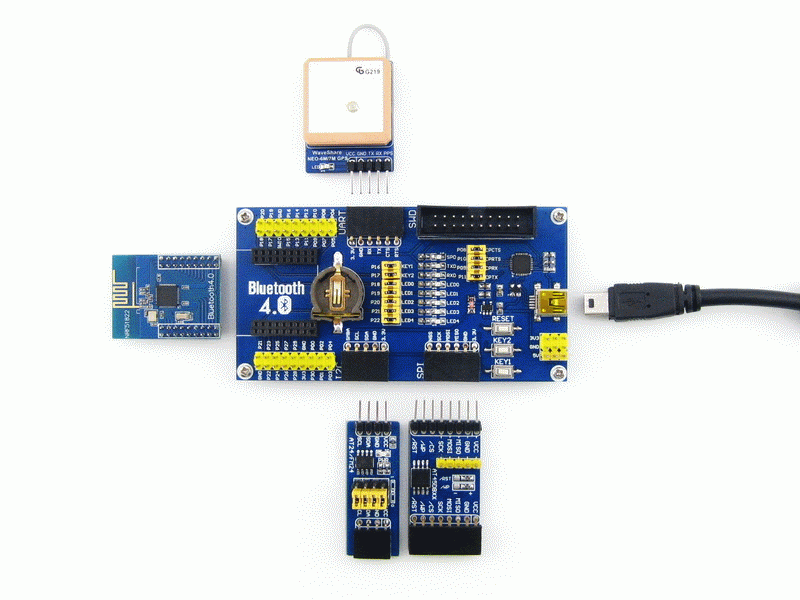

- Wireless module connector: for easily connecting modules like Core51822
- MCU pins expansion connector
- I2C interface
- SPI interface
- 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
- USB connector: USB TO UART via onboard convertor CP2102
- Debugging interface
- UART interface
- Battery holder
- User LEDs
- User keys
- Reset button
- CP2102
- USB TO UART jumper
- LEDs & Keys jumper
Package Contains
- BLE400 x 1
- USB type A to Mini-B cable x 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
