Cubieboard 4 A80
product unavailable
Description
Cubie single board computer A80 is a the fourth generation board of cubie team. The calculated performance is 5 times of cubietruck, A80 is a 28nm 8 -core high-performance application processor with a CPU dominant frequency of 2GHz.
1. A new generation of 64-core GPU graphics core PowerVR G6230
2. A new generation of display engine that supports H.265 hardware solution, 4K resolution codec, 3-screen simultaneous output
3. It supports more than 2GB of memory
4. It supports USB 3.0
5. It supports 16 million -pixel high-definition camera
Specyfication:
SOC:
- Allwinner A80, Octa- Core big-LITTLE A15/A7, 28mm
- CPU: Arm Cortex A15x4 up to 2.0GHz, A7x4 up to 1.3GHz
- GPU: PowerVR 64-core G6230
Memory:
- 2GB, 64bit, dual channel, 1600MTPS
Storage:
- EMMC, up to 64GB, default 8GB, write/red speed 25MB/s
TF card:
- Micro SD card slot, SD card specification V2.0
USB:
- USB 2.0 host x 4
- USB 3.0 OTG x 1
Display:
- HDMI Port A, HDMI V1.4
- VGA, support 1080P resolution output
Ethernet:
- 10M/100M/1000M NIC
Wireless:
- Wi-Fi: 2.4G/5.8G, dual band, 300Mbps
- Bt: BT4.0+EDR
IR:
- IR receiver Philips standard
RTC:
- Support 1220 size rechargable button cell
Audio:
- Support 3.5 headphone jack for Audio output
- Support 3.5 jack for Micphone
Power:
- DCIN 5V/2.5A power
- Support USB 3.0 jack power
- Support 3.7V Li-Po battery
Keys:
- Power key, Reset key, Reboot key
Leds:
- Power led x 1, User led x 2
Debug port:
- UART0 and JTAG. Some I2C interface to peripherals

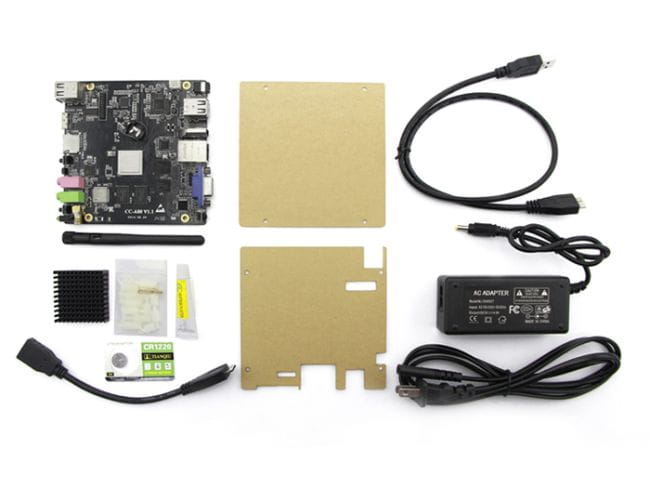

Include:
- CCA80 main board x1
- Micro 3.0 USB cable x1
- Micro 3.0 USB OTG x1
- 40*10*10 cooling fin
- 5G/ 2.4G antenna
- RTG battery
- acrylic plates *2
- screw
