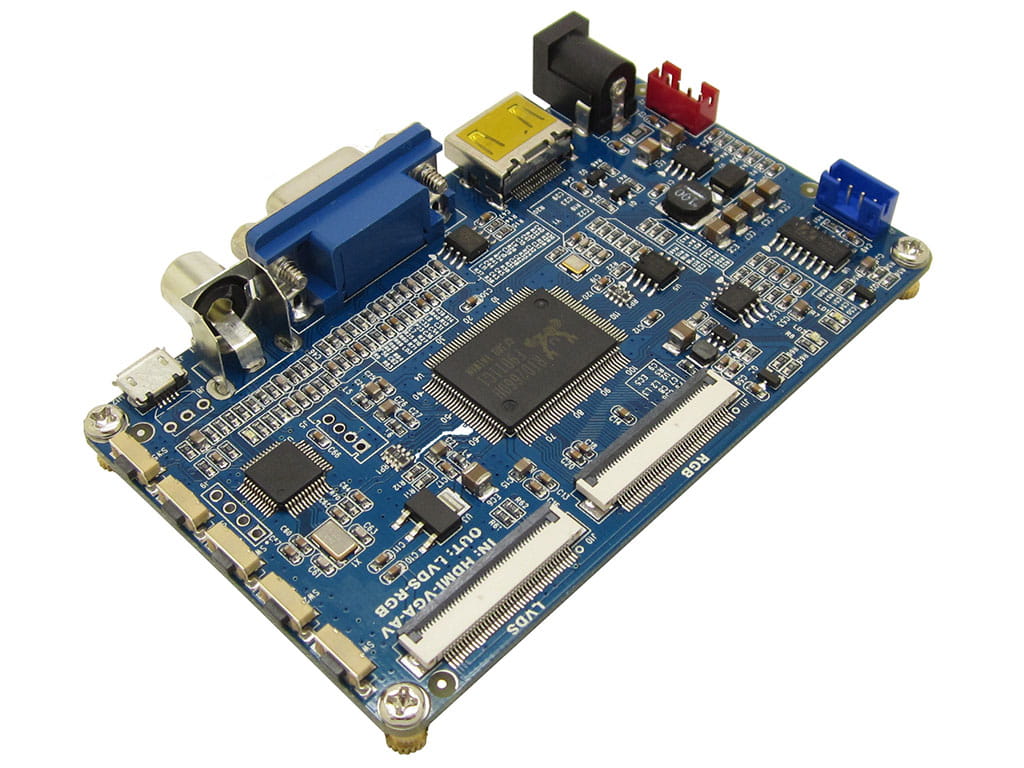

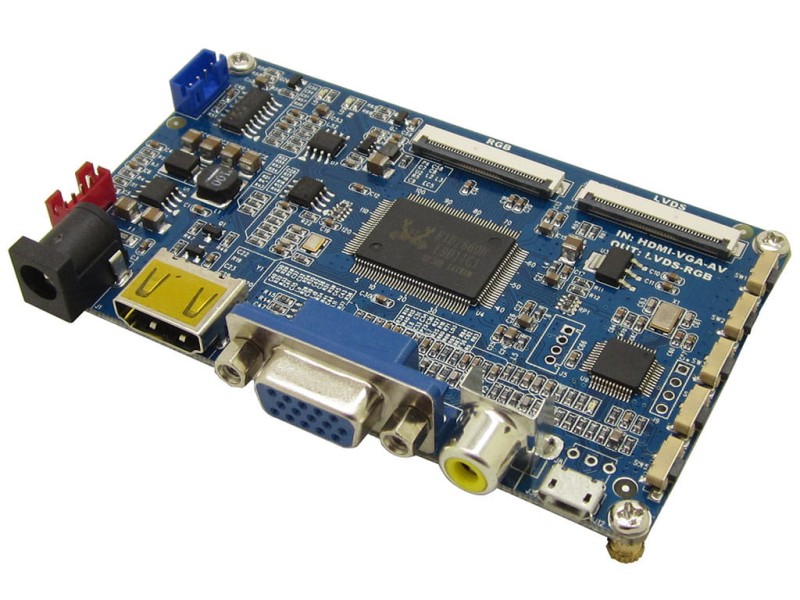

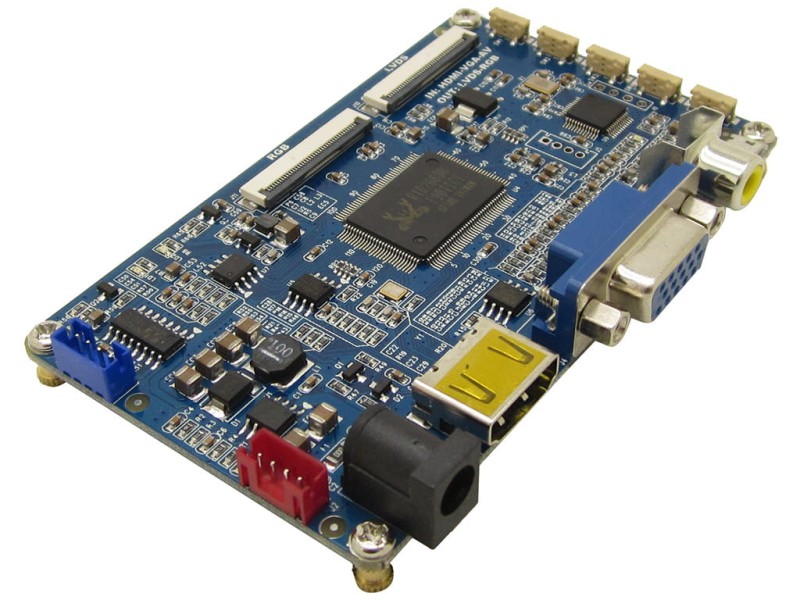

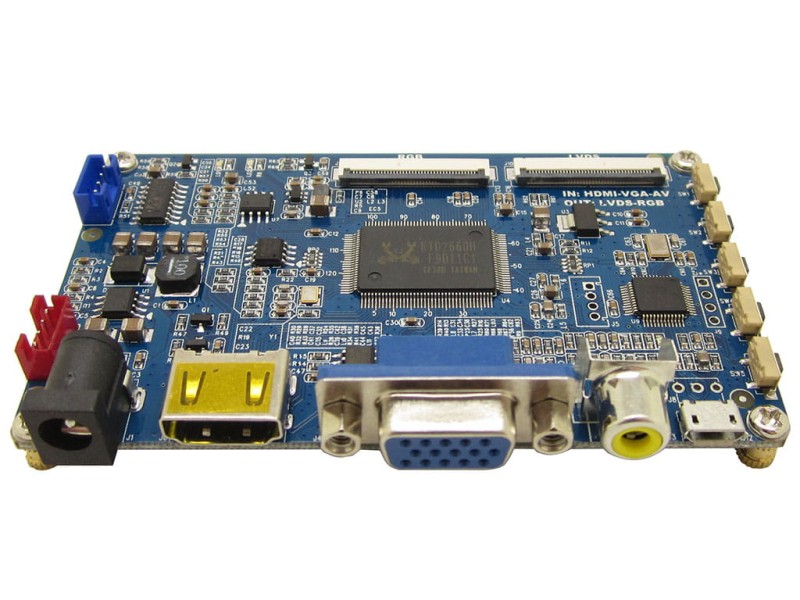

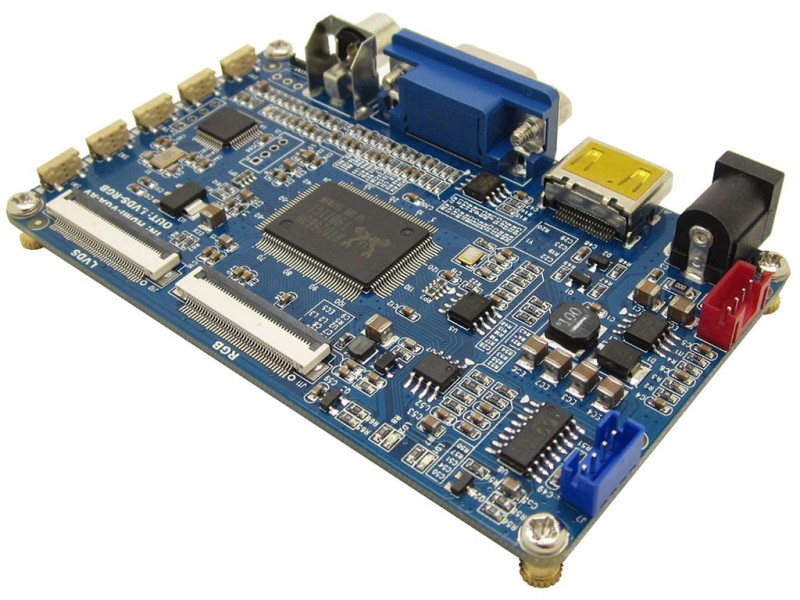

Konwerter HDMI/VGA/AV na RGB LVDS RTD2660H

Price: €18.50
incl. 23% TAX, excl. shipping costs
18.50
quantity szt.

product unavailable

Product code: RTD2660H-Video-Converter-Board

Description

Moduł uniwersalnego konwertera Video posiadający wejścia: HDMI, VGA,  AV(CVBS). Źródło sygnału wejściowego wybieramy za pomocą klawiatury, maksymalna rozdzielczość sygnału wejściowego to 1920x1080, konwerter współpracuje z wyświetlaczami z interfejsami TTL RGB (40 pin) oraz LVDS (40 pin), obsługuje także wyjście audio oraz panele dotykowe pojemnościowe. Konwerter posiada możliwość zmiany oprogramowania sterującego za pomocą USB - dzięki tej możliwości możemy pracować z różnymi wyświetlaczami lista przetestowanych modeli wyświetlaczy znajduje się poniżej.

Specyfikacja:

  • Power voltage: 5V to 24V DC
  • Video signal input: HDMI 1.2, VGA, AV(CVBS)
  • OSD Language support: English, Chinese, Japanese, Korean, Spanish, French, German, Italian, Portuguese
  • two 4Ω speakers output pins ( 2.0mm pitch )
  • Max Resolution support 1920x1080
  • standard keypad interface, Power, MENU, VOL+, VOL-,  Source , and two work indicate LED
  • RGB/TTL Interface output support HY050CTP-HD(800x480), HY070CTP(800x480), HY070CTP-HD(1024x600), HY070CTP-HD-RGB(1024x600) , HY070CTP-HD-RGB IPS(1024x600), HY101CTP(1024x600)
  • LVDS Interface output support HY101CTP(1024x600)
  • Onboard USB device port support upgrade vedio firmware, and USB HID protocol for touch control ( capacitive touch )
    -Note: the vedio LVDS firmware and vedio TTL firmware cannot be working simultaneously, which means only one firmware can be selected at a time.

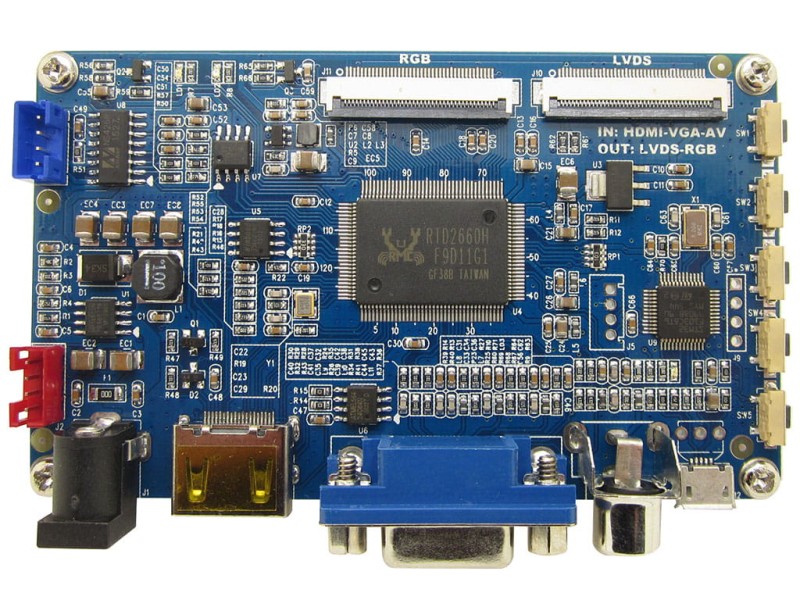

  1. Keypad, Source
  2. Keypad, VOL-
  3. Keypad, VOL+
  4. Keypad, MENU
  5. Firmware upgrade indicate LED, and USB touch working LED
  6. Keypad, Power
  7. IR Remote (No welding IR receiver)
  8. Onboard USB device Port
  9. AV(CVBS) input
  10. VGA inpout
  11. HDMI input, support HDMI 1.2
  12. Power supply 5V/1A input, 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug
  13. Extra power input 4 pin 2.0mm pitch
  14. speak output, 4 pin 2.0mm pitch
  15. Vedio working indicate LED
  16. Vedio standby indicate LED
  17. RGB/TTL Interface, support HY050CTP-HD(800x480), HY070CTP(800x480), HY070CTP-HD(1024x600), HY070CTP-HD-RGB(1024x600) , HY070CTP-HD-RGB IPS(1024x600), HY101CTP(1024x600)
  18. LVDS Interface, support HY101CTP(1024x600)



Zestaw zawiera

  • RTD2660H Video Converter Board x1
