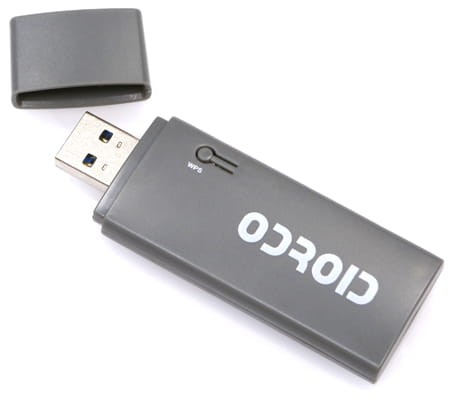

Adapter WiFi USB IEEE 802.11ac/a/b/g/n 2.4Ghz and 5Ghz Dual band antenna

Dostępność:: 1
Wysyłka:: 24 - 48 godzin
Cena:: 110,00 zł 110.00
Cena netto: 89,43 zł
quantity szt.
dodaj do przechowalni
Ocena:: 0
Producent: hardkernel
Kod produktu: WiFi Module 5

Opis

IEEE 802.11ac/a/b/g/n WLAN module with on-board 2.4Ghz and 5Ghz Dual band antenna.

Works with ODROID-XU4 / C2 / C1+ /C0
Android and Linux compatible

Please update your OS to the latest version if it doesn't work.

- Realtek RTL8812AU chipset (ID = 0bda:8812)
- Dual-Band MIMO 2x2 Solution (11ac 2x2 MAC/BB/RF+PA)
- USB 3.0 Super-Speed interface (Compatible with USB2.0 too)
- LED for WiFi Link Activity and button of WPS
- Dimension : 77 x 27.5 x 9.5 mm
- Weight : 14g



xperimental test with XU4 USB 3.0 port.

Equipments for test.
1. ODROID-XU4 with Ubuntu 16.04, updates as today.
2. Provided 802.11ac Wifi Adapter, Comfast CF-912AC
3. Ubiquiti UAP-AC-PRO 3x3 MIMO Wifi Access Point, firmware: 3.4.19.3477
4. TP-Link Jetstream 24 Port - TL-SG3424, firmware: 1.0.2
5. Dell PowerEdge T430, Xeon E5-2650v4, 128GB RDIMM DDR4-2400, Broadcom 5720, Ubuntu 16.04, updates as today.

Network Configuration:
- 2.4Ghz Network configured for Channel 6 (2437Mhz) with HT40 enabled.
- 5Ghz Network configured for Channel 36 (5180Mhz Center, 5170-5190) 20Mhz Bandwidth, VHT80 enabled.
- 2.4Ghz was established at 144Mbit/s.
- 5Ghz was established at 867Mbit/s.

Equipment was kept 1.5meters apart during all tests, no obstructions.


5Ghz Tests

5Ghz Download (10 simultaneous connections): 173Mbit/s
------------------------------------------------------------
Client connecting to 192.168.2.1, TCP port 5001
TCP window size: 20.0 KByte (default)
------------------------------------------------------------
[ 12] local 192.168.2.84 port 53576 connected with 192.168.2.1 port 5001
[ 3] local 192.168.2.84 port 53568 connected with 192.168.2.1 port 5001
[ 4] local 192.168.2.84 port 53567 connected with 192.168.2.1 port 5001
[ 6] local 192.168.2.84 port 53569 connected with 192.168.2.1 port 5001
[ 7] local 192.168.2.84 port 53571 connected with 192.168.2.1 port 5001
[ 5] local 192.168.2.84 port 53570 connected with 192.168.2.1 port 5001
[ 8] local 192.168.2.84 port 53572 connected with 192.168.2.1 port 5001
[ 10] local 192.168.2.84 port 53573 connected with 192.168.2.1 port 5001
[ 9] local 192.168.2.84 port 53574 connected with 192.168.2.1 port 5001
[ 11] local 192.168.2.84 port 53575 connected with 192.168.2.1 port 5001
[ ID] Interval Transfer Bandwidth
[ 9] 0.0-10.1 sec 21.2 MBytes 17.7 Mbits/sec
[ 11] 0.0-10.1 sec 20.8 MBytes 17.3 Mbits/sec
[ 4] 0.0-10.1 sec 20.6 MBytes 17.2 Mbits/sec
[ 6] 0.0-10.1 sec 20.6 MBytes 17.2 Mbits/sec
[ 7] 0.0-10.1 sec 20.5 MBytes 17.1 Mbits/sec
[ 5] 0.0-10.1 sec 20.6 MBytes 17.2 Mbits/sec
[ 3] 0.0-10.1 sec 20.5 MBytes 17.0 Mbits/sec
[ 8] 0.0-10.1 sec 21.2 MBytes 17.7 Mbits/sec
[ 10] 0.0-10.1 sec 21.5 MBytes 17.9 Mbits/sec
[ 12] 0.0-10.2 sec 21.4 MBytes 17.7 Mbits/sec
[SUM] 0.0-10.2 sec 209 MBytes 173 Mbits/sec


5Ghz Upload(10 simultaneous connections): 183Mbit/s
------------------------------------------------------------
Client connecting to 192.168.2.84, TCP port 5001
TCP window size: 85.0 KByte (default)
------------------------------------------------------------
[ 11] local 192.168.2.1 port 54980 connected with 192.168.2.84 port 5001
[ 4] local 192.168.2.1 port 54962 connected with 192.168.2.84 port 5001
[ 5] local 192.168.2.1 port 54964 connected with 192.168.2.84 port 5001
[ 6] local 192.168.2.1 port 54966 connected with 192.168.2.84 port 5001
[ 3] local 192.168.2.1 port 54968 connected with 192.168.2.84 port 5001
[ 8] local 192.168.2.1 port 54970 connected with 192.168.2.84 port 5001
[ 9] local 192.168.2.1 port 54972 connected with 192.168.2.84 port 5001
[ 10] local 192.168.2.1 port 54974 connected with 192.168.2.84 port 5001
[ 7] local 192.168.2.1 port 54976 connected with 192.168.2.84 port 5001
[ 12] local 192.168.2.1 port 54978 connected with 192.168.2.84 port 5001
[ ID] Interval Transfer Bandwidth
[ 10] 0.0-10.0 sec 26.1 MBytes 21.8 Mbits/sec
[ 3] 0.0-10.1 sec 19.6 MBytes 16.4 Mbits/sec
[ 7] 0.0-10.1 sec 22.1 MBytes 18.4 Mbits/sec
[ 11] 0.0-10.1 sec 22.9 MBytes 19.0 Mbits/sec
[ 8] 0.0-10.1 sec 29.6 MBytes 24.6 Mbits/sec
[ 12] 0.0-10.1 sec 19.8 MBytes 16.4 Mbits/sec
[ 9] 0.0-10.1 sec 22.6 MBytes 18.7 Mbits/sec
[ 5] 0.0-10.1 sec 20.1 MBytes 16.6 Mbits/sec
[ 6] 0.0-10.1 sec 19.5 MBytes 16.1 Mbits/sec
[ 4] 0.0-10.2 sec 20.1 MBytes 16.6 Mbits/sec
[SUM] 0.0-10.2 sec 222 MBytes 183 Mbits/sec


5Ghz Duplex Test (4 simultaenous connections, 2 down, 2 up): 206,8Mbit/s
------------------------------------------------------------
Server listening on TCP port 5001
TCP window size: 85.3 KByte (default)
------------------------------------------------------------
------------------------------------------------------------
Client connecting to 192.168.2.1, TCP port 5001
TCP window size: 44.1 KByte (default)
------------------------------------------------------------
[ 6] local 192.168.2.84 port 53679 connected with 192.168.2.1 port 5001
[ 5] local 192.168.2.84 port 53678 connected with 192.168.2.1 port 5001
[ 4] local 192.168.2.84 port 5001 connected with 192.168.2.1 port 55046
[ 7] local 192.168.2.84 port 5001 connected with 192.168.2.1 port 55048
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-10.0 sec 39.6 MBytes 33.1 Mbits/sec
[ 5] 0.0-10.0 sec 39.1 MBytes 32.7 Mbits/sec
[SUM] 0.0-10.0 sec 78.8 MBytes 65.8 Mbits/sec
[ 4] 0.0-10.1 sec 85.5 MBytes 70.8 Mbits/sec
[ 7] 0.0-10.1 sec 85.2 MBytes 70.6 Mbits/sec
[SUM] 0.0-10.1 sec 171 MBytes 141 Mbits/sec



2.4Ghz Tests

2.4Ghz Download (10 simultaneous connections): 89.2Mbit/s

------------------------------------------------------------
Client connecting to 192.168.2.1, TCP port 5001
TCP window size: 20.0 KByte (default)
------------------------------------------------------------
[ 12] local 192.168.2.84 port 53555 connected with 192.168.2.1 port 5001
[ 4] local 192.168.2.84 port 53547 connected with 192.168.2.1 port 5001
[ 3] local 192.168.2.84 port 53546 connected with 192.168.2.1 port 5001
[ 5] local 192.168.2.84 port 53548 connected with 192.168.2.1 port 5001
[ 6] local 192.168.2.84 port 53549 connected with 192.168.2.1 port 5001
[ 8] local 192.168.2.84 port 53550 connected with 192.168.2.1 port 5001
[ 9] local 192.168.2.84 port 53552 connected with 192.168.2.1 port 5001
[ 7] local 192.168.2.84 port 53551 connected with 192.168.2.1 port 5001
[ 10] local 192.168.2.84 port 53553 connected with 192.168.2.1 port 5001
[ 11] local 192.168.2.84 port 53554 connected with 192.168.2.1 port 5001
[ ID] Interval Transfer Bandwidth
[ 12] 0.0-10.0 sec 10.6 MBytes 8.90 Mbits/sec
[ 7] 0.0-10.0 sec 11.1 MBytes 9.30 Mbits/sec
[ 5] 0.0-10.2 sec 10.4 MBytes 8.56 Mbits/sec
[ 6] 0.0-10.2 sec 10.6 MBytes 8.76 Mbits/sec
[ 10] 0.0-10.2 sec 11.1 MBytes 9.18 Mbits/sec
[ 4] 0.0-10.2 sec 11.0 MBytes 9.02 Mbits/sec
[ 8] 0.0-10.2 sec 10.9 MBytes 8.91 Mbits/sec
[ 3] 0.0-10.2 sec 10.8 MBytes 8.80 Mbits/sec
[ 9] 0.0-10.2 sec 10.9 MBytes 8.90 Mbits/sec
[ 11] 0.0-10.2 sec 11.6 MBytes 9.52 Mbits/sec
[SUM] 0.0-10.2 sec 109 MBytes 89.2 Mbits/sec

2.4Ghz Upload (10 simultaneous connections): 40.1Mbit/s
------------------------------------------------------------
Client connecting to 192.168.2.84, TCP port 5001
TCP window size: 85.0 KByte (default)
------------------------------------------------------------
[ 10] local 192.168.2.1 port 54492 connected with 192.168.2.84 port 5001
[ 4] local 192.168.2.1 port 54474 connected with 192.168.2.84 port 5001
[ 5] local 192.168.2.1 port 54476 connected with 192.168.2.84 port 5001
[ 6] local 192.168.2.1 port 54480 connected with 192.168.2.84 port 5001
[ 8] local 192.168.2.1 port 54482 connected with 192.168.2.84 port 5001
[ 7] local 192.168.2.1 port 54478 connected with 192.168.2.84 port 5001
[ 9] local 192.168.2.1 port 54484 connected with 192.168.2.84 port 5001
[ 3] local 192.168.2.1 port 54488 connected with 192.168.2.84 port 5001
[ 11] local 192.168.2.1 port 54486 connected with 192.168.2.84 port 5001
[ 12] local 192.168.2.1 port 54490 connected with 192.168.2.84 port 5001
[ ID] Interval Transfer Bandwidth
[ 3] 0.0-10.2 sec 6.50 MBytes 5.35 Mbits/sec
[ 5] 0.0-10.3 sec 4.50 MBytes 3.68 Mbits/sec
[ 10] 0.0-10.3 sec 4.75 MBytes 3.87 Mbits/sec
[ 4] 0.0-10.3 sec 5.25 MBytes 4.26 Mbits/sec
[ 11] 0.0-10.4 sec 4.75 MBytes 3.85 Mbits/sec
[ 12] 0.0-10.4 sec 6.75 MBytes 5.43 Mbits/sec
[ 6] 0.0-10.5 sec 4.50 MBytes 3.61 Mbits/sec
[ 7] 0.0-10.5 sec 3.88 MBytes 3.11 Mbits/sec
[ 9] 0.0-10.5 sec 4.50 MBytes 3.61 Mbits/sec
[ 8] 0.0-10.5 sec 4.75 MBytes 3.80 Mbits/sec
[SUM] 0.0-10.5 sec 50.1 MBytes 40.1 Mbits/sec

2.4Ghz Duplex test (4 simultaneous connections, 2 down, 2 up): 72.4Mbit/s (combined)
------------------------------------------------------------
Server listening on TCP port 5001
TCP window size: 85.3 KByte (default)
------------------------------------------------------------
------------------------------------------------------------
Client connecting to 192.168.2.1, TCP port 5001
TCP window size: 20.0 KByte (default)
------------------------------------------------------------
[ 6] local 192.168.2.84 port 53681 connected with 192.168.2.1 port 5001
[ 5] local 192.168.2.84 port 53680 connected with 192.168.2.1 port 5001
[ 4] local 192.168.2.84 port 5001 connected with 192.168.2.1 port 55058
[ 7] local 192.168.2.84 port 5001 connected with 192.168.2.1 port 55060
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-10.0 sec 30.6 MBytes 25.6 Mbits/sec
[ 5] 0.0-10.0 sec 31.6 MBytes 26.5 Mbits/sec
[SUM] 0.0-10.0 sec 62.2 MBytes 52.1 Mbits/sec
[ 7] 0.0-10.3 sec 13.2 MBytes 10.8 Mbits/sec
[ 4] 0.0-10.3 sec 11.6 MBytes 9.48 Mbits/sec
[SUM] 0.0-10.3 sec 24.9 MBytes 20.3 Mbits/sec
