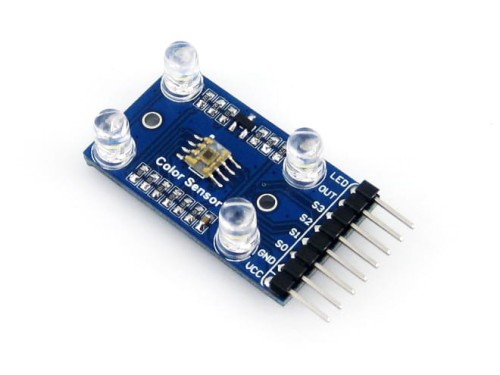

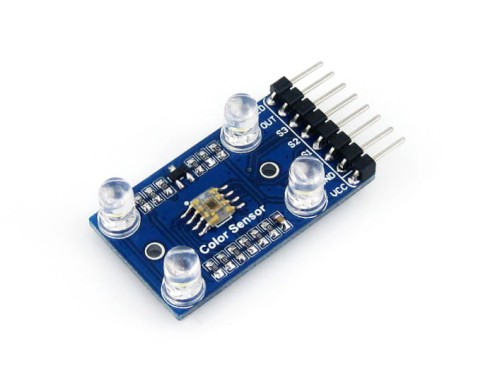

Color Sensor TCS3200

Dostępność:: >5
Wysyłka:: 24 - 48 godzin
Cena:: 24,84 zł 24.84
Cena netto: 20,20 zł
quantity szt.
dodaj do przechowalni
Ocena:: 0
Producent: WaveShare
Kod produktu: Color Sensor

Opis

Moduł z czujnikiem koloru TCS3200, umożliwiający rozpoznawanie koloru obiektów. Zestaw zawiera również przewody połączeniowe.


Color Sensor, complete color detector

Overview

  • Sensor Chip: TCS3200 (RGB color detector)
  • Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
  • Supports fill-light by onboard LEDs

Specifications

  • Power: 2.7V ~ 5.5V
  • Ideal detection distance: 10mm
  • Dimension: 36.0mm * 20.6mm
  • Mounting holes size: 2.0mm

Applications

  • Sorting by color
  • Ambient light sensing and calibration
  • Test strip reading
  • Color matching

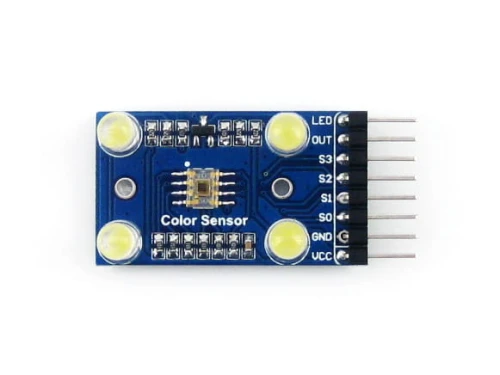

How to Use

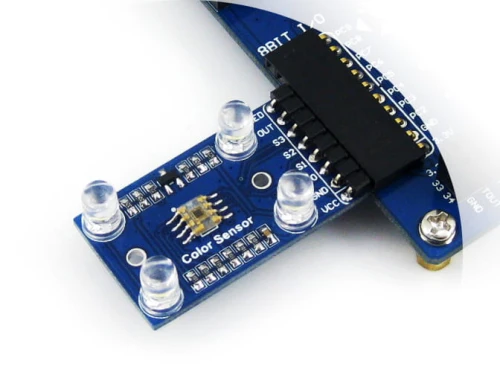

In the case of working with a MCU:

  • VCC ↔ 2.7V ~ 5.5V
  • GND ↔ power supply ground
  • LED ↔ MCU.IO (controlling the 4 white LEDs)
  • OUT ↔ MCU.IO (RGB color output frequency)
  • S0/S1 ↔ MCU.IO (Output frequency scaling selection inputs)
  • S2/S3 ↔ MCU.IO (Photodiode type selection inputs)

S0/S1 selects the output frequency scaling factor, S2/S3 selects the color filter of red, green, blue, then OUT outputs a square wave with frequency proportional to the selected color intensity. The detected color can be determined by the ratio of the intensity of red, green and blue.

Note:

  • Avoids environment light noise
  • White balance is required when the first time using the module, reseting the module, or changing the light source

Package Contains


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Click here to download
