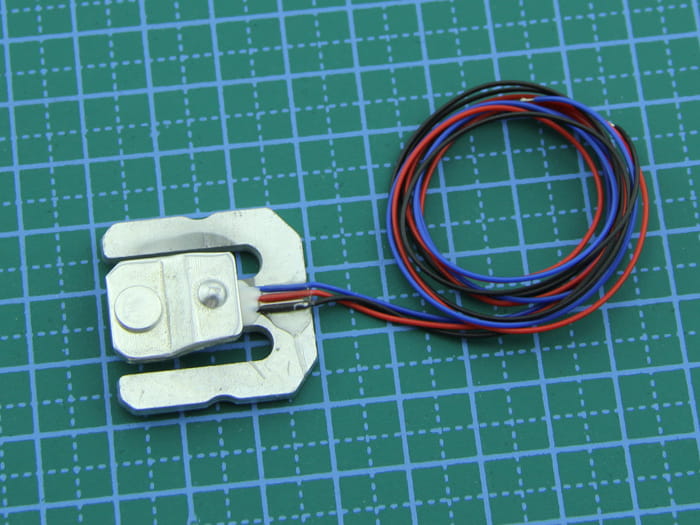

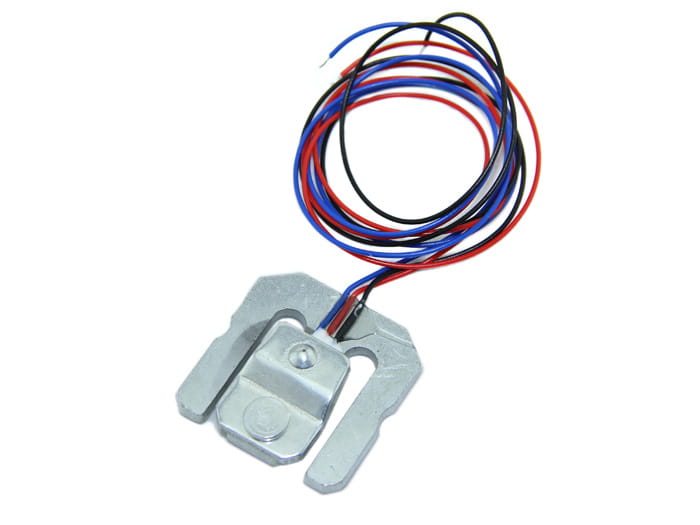

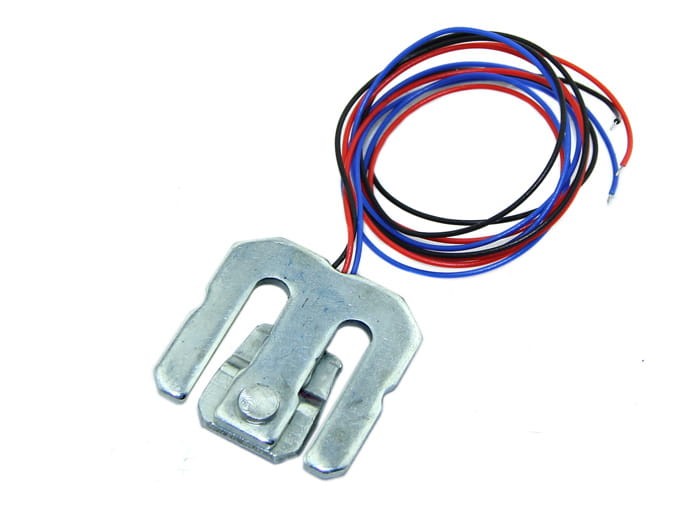

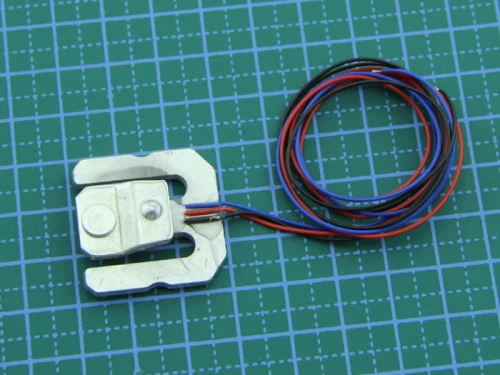

Load Sensor tensometr

Cena:: 24,31 zł
zawiera 23% VAT, bez kosztów dostawy
24.31
ilość szt.

towar niedostępny

Producent: SeeedStudio
Kod produktu: 314030003

Opis

 This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. You can use multiple load sensors simultaneously to increase the capacity range.


Features
  • Sturdy material
  • Up to 50kg sensor range
  • parallel use to add additional capacity
Specifications
  • Dimension (mm): 28*28*8
  • Capacity (kg): 50
  • Comprehensive error (%F.S): 0.2
  • Output sensitivity (mv/v): 1.1±0.15
  • Nonlinearity (%F.S): 0.2
  • Repeatability (%F.S): 0.1
  • Hysteresis (%F.S): 0.2
  • Creep (%F.S/3min): 0.1
  • Zero Drift (%F.S/1min): 0.1
  • Temp. Effect on zero (%F.S/10°C): 0.2
  • Temp. Effect on Output (%F.S/10°C): ≤0.15
  • Zero Output (mv/V): ±0.3
  • Input Resistance (Ω): 1000±50
  • Output Resistance (Ω): 1000±50
  • Insulation Resistance (MΩ): ≤2000 (100VDC)
  • Excitation Voltage (V): 5~10
  • Operation Temp. Range (°C): -10~+50
  • Overload Capacity (%F.S): 150
  • Method of connecting wire : red= Sig + ; white= Exc –; blue= Exc +
