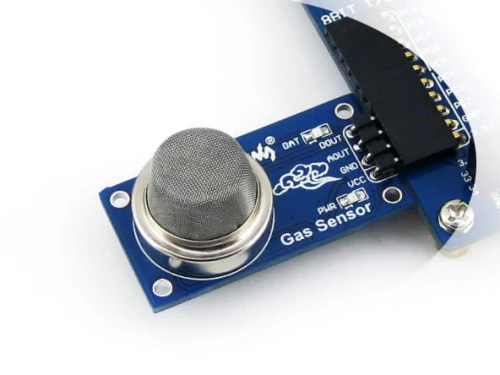

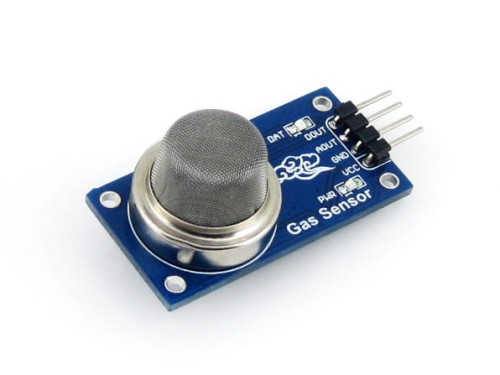

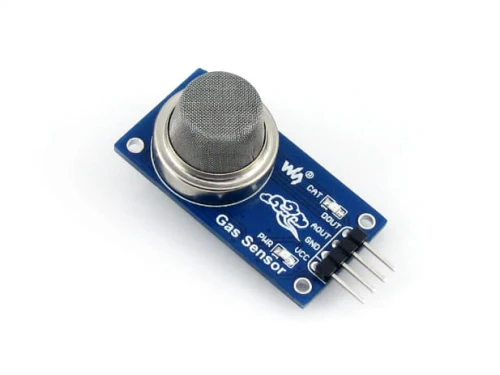

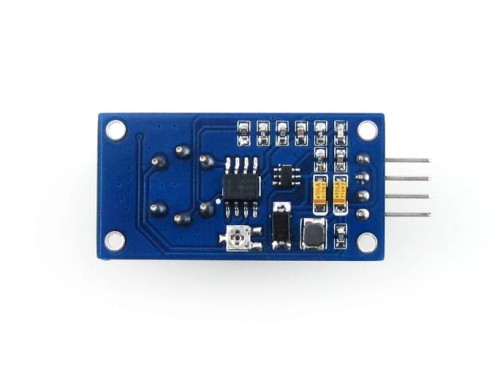

Moduł z czujnikiem dymu i łatwopalnych gazów MQ-2

Cena:: 18,90 zł
zawiera 23% VAT, bez kosztów dostawy
18.90
ilość szt.

towar niedostępny

Producent: WaveShare
Kod produktu: MQ-2 Gas Sensor Waveshare 9529

Opis

Moduł z czujnikiem dymu i łatwopalnych gazów: MQ-2. Zestaw zawiera również przewody połączeniowe.




MQ-2 Gas Sensor

Overview

  • Sensitive for LPG, propane, hydrogen
  • Output voltage boosts along with the concentration of the measured gases increases
  • Fast response and recovery
  • Features boost circuit
  • Adjustable sensitivity
  • Signal output indicator

Specifications

  • Power: 2.5V ~ 5.0V
  • Dimension: 40.0mm * 21.0mm
  • Mounting holes size: 2.0mm

Applications

  • Gas leakage detector

How to Use

In the case of working with a MCU:

  • VCC ↔ 2.5V ~ 5.0V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)

Package Contains






Downloads

Development resources: demo codes, schematic, datasheets, etc.
Click here to download


Selection Guide

Part Number Sensitive Gas Application
MQ-135 Gas Sensor benzene, alcohol, smoke Air quality monitor
MQ-2 Gas Sensor LPG, propane, hydrogen Gas leakage detector
MQ-3 Gas Sensor alcohol, ethanol Car alcohol alarm, breathalyser
MQ-5 Gas Sensor LPG, natural gas, coal gas Gas leakage detector
MQ-7 Gas Sensor carbon monoxide Carbon monoxide monitor
