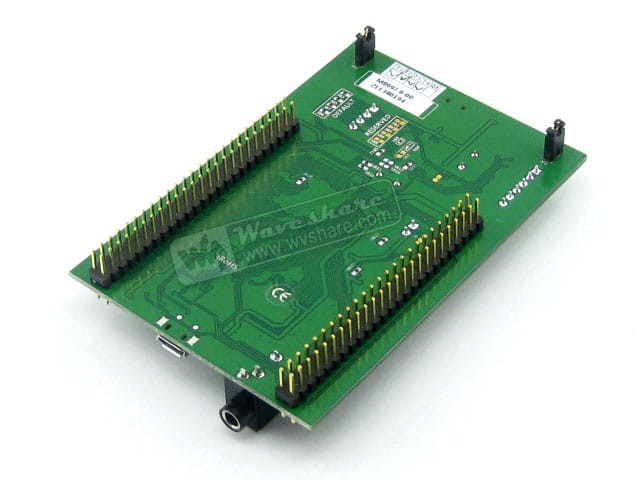

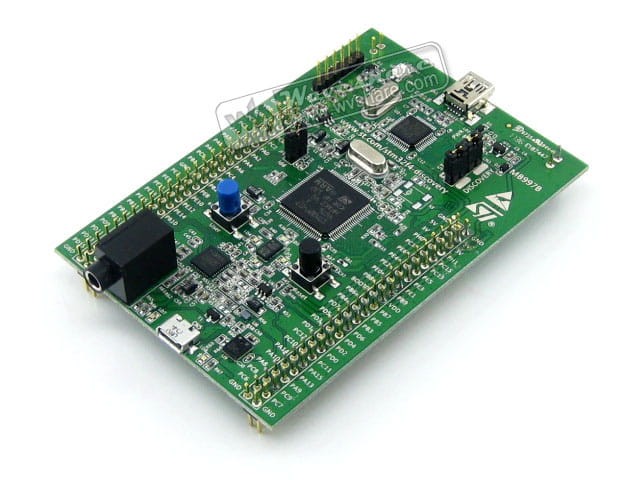

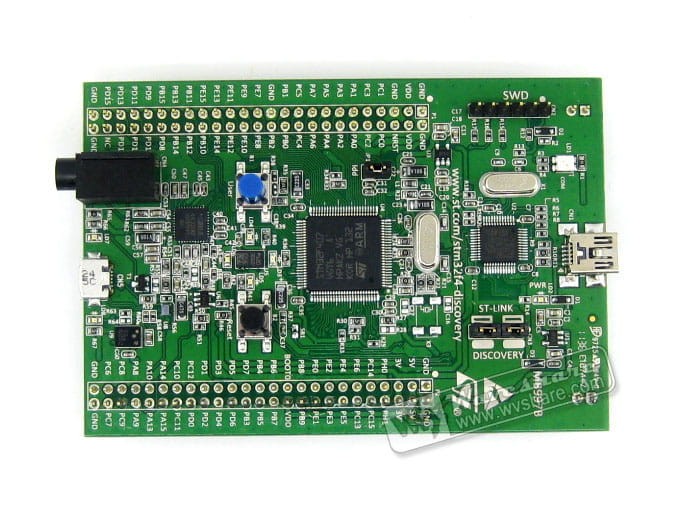

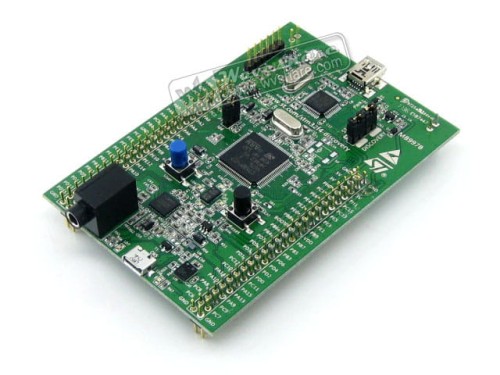

STM32F407G-DISC1 zestaw z STM32F407
towar niedostępny
Opis
STM32F407G-DISC1 zestaw zastępujący wycofany zestaw STM32F4DISCOVERY, z którym jest w pełni kompatybilny, główna zmiana to możliwość pracy z środowiskiem mbed.
Specyfikacja
- STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
- On-board ST-LINK/V2-A
- ARM® mbed™ -enabled (http://mbed.org)
- USB ST-LINK with re-enumeration capability and three different interfaces:
Virtual com port
Mass storage
Debug port - Board power supply: through USB bus or from an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
- MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
- CS43L22, audio DAC with integrated class D speaker driver
- Eight LEDs:LD1 (red/green) for USB communication
LD2 (red) for 3.3 V power on
Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current - Two push buttons (user and reset)
- USB OTG FS with micro-AB connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
