STM32F429IGT6 MCU core board

Cena:: 127,00 zł
zawiera 23% VAT, bez kosztów dostawy
127.00
ilość szt.

towar niedostępny

Producent: WaveShare
Kod produktu: Core429I WaveShare 9116

Opis

Przegląd:

Core429I to płyta podstawowa MCU STM32 zaprojektowana dla STM32F429IGT6, obsługuje dalszą rozbudowę. Jest idealny do rozpoczęcia tworzenia aplikacji z rodziną STM32F.

  • Minimalny gotowy do uruchomienia system, integruje obwód zegara, zarządzanie energią USB, złącze USB itp.
  • Wbudowana 64-bitowa pamięć SDRAM
  • Wszystkie porty I / O są dostępne na nagłówkach pinów
  • Interfejs programowania / debugowania JTAG / SWD
  • Rozstaw głowicy 2,0 mm, można podłączyć do tablicy aplikacji

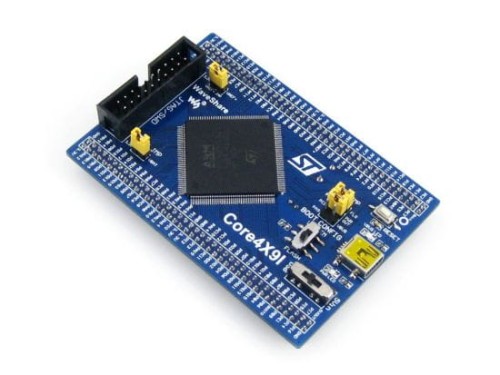

What's on the Core429I



  1. STM32F429IGT6: the high performance STM32 MCU which features:
    • Core: Cortex-M4 32-bit RISC
    • Feature: single-cycle DSP instructions
    • Operating Frequency: 180MHz, 225 DMIPS/1.25 DMIPS/MHz
    • Operating Voltage: 1.8V-3.6V
    • Package: LQFP176
    • Memories: 1024kB Flash, 256+4kB SRAM
    • MCU communication Interfaces:
      • 6 x SPI, 4 x USART, 4 x UART, 2 x I2S, 1 x SAI, 3 x I2C
      • 1 x FMC, 1 x SDIO, 2 x CAN
      • 1 x LCD-TFT
      • 1 x USB 2.0 HS/FS controller (with dedicated DMA)
      • 1 x USB HS ULPI (external PHY required)
      • 1 x 10/100 Ethernet MAC
      • 1 x 8 to 14-bit camera interface
    • AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
    • Debugging/Programming: supports JTAG/SWD interfaces, supports IAP

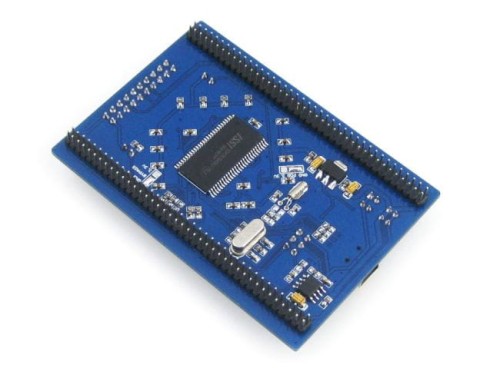

  2. IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
  3. AMS1117-3.3: 3.3V voltage regulator
  4. MIC2075: onboard USB power management device
  5. Power supply switch, powered from 5Vin or USB connection
  6. Boot mode selection, for configuring BOOT0 pin
  7. Power indicator
  8. VBUS LED
  9. Reset button
  10. 8M crystal
  11. 32.768K crystal, for internal RTC with calibration
  12. JTAG/SWD interface: for debugging/programming
  13. USB connector, supports Device and/or Host
  14. MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion
  15. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG
  16. USB OTG/HOST jumper
    • short the jumper when using USB OTG/HOST
    • open the jumper to disconnect from related I/O port
  17. VBAT selection jumper
    • short the jumper to use system power supply
    • open the jumper to connect the VBAT to external power, such as battery
  18. VREF selection jumper
    • short the jumper to connect VREF+ to VCC
    • open the jumper to connect VREF+ to other custom pin via jumper wire

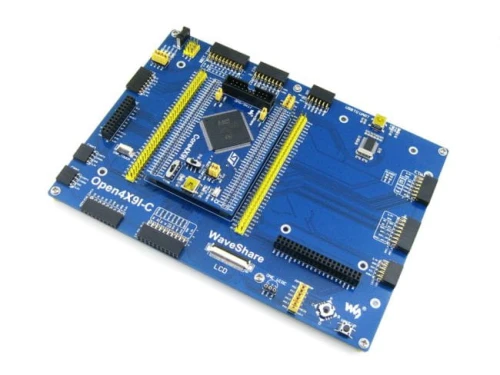

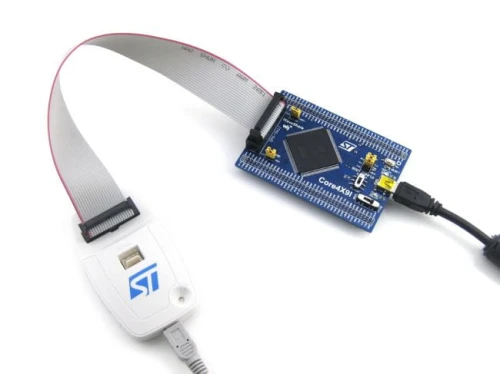

Uwaga: Płyta główna lub programator / debugger na zdjęciu NIE są wliczone w cenę. Core429I zapewnia interfejs debugowania JTAG / SWD, ale NIE integruje żadnej funkcji debugowania, wymagany jest debugger.




Package Contains

  1. Core429I x 1
  2. USB type A to Mini-B cable x 1
12

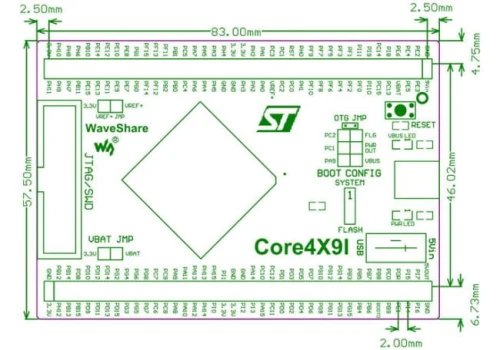

Dimensions




Development Resources

  • Schematic
  • Demo code (examples in C, μC/OS-II)
  • STM32 development software (KEIL etc.)
  • STM32 datasheets
  • STM32 development documentations

Wiki: www.waveshare.com/wiki/Core429I
