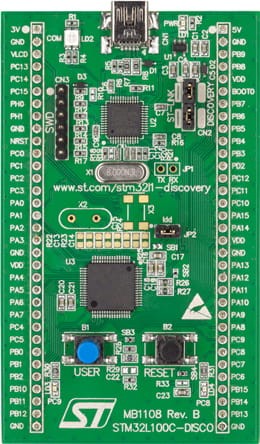

STM32L100C-DISCO kit for STM32L100 Value line - with STM32L100RC MCU
Cena::
zawiera 23% VAT, bez kosztów dostawy
45.00
・Kup teraz i zapłać za 30 dni
towar niedostępny
Dostępność::
brak towaru
Producent:
STMicroelectronics
Kod produktu:
STM32L100C-DISCO
Opis
The 32L100CDISCOVERY helps you to discover the features of the STM32L100 Value Line 32-bit Cortex-M3 microcontrollers and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.
Based on the STM32L100RCT6 , it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons for easy connection of additional components and modules.
A large number of free ready-to-run application firmware examples are available on www.st.com/stm32l1-discovery to support quick evaluation and development.
DownloadData Brief
Key Features
- STM32L100RCT6 microcontroller featuring 256 KB of Flash memory, 16 KB of RAM in an LQFP64 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- Four LEDs:
- LD1 (red) for 3.3 V power on
- LD2 (red/green) for USB communication
- LD3 (green) for PC9 output
- LD4 (blue) for PC8 output
- Two push buttons (user and reset)
- Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
Dokładny opis dostępny jest na stronie:
