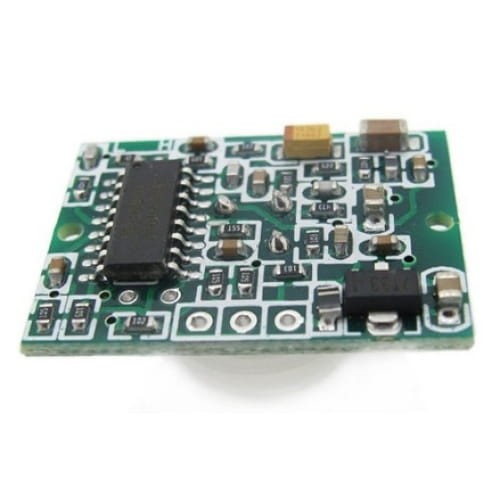

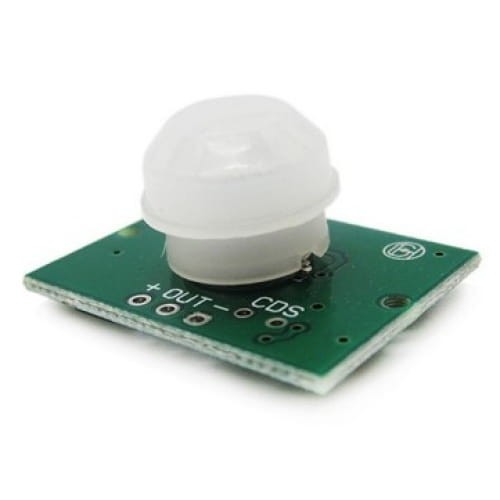

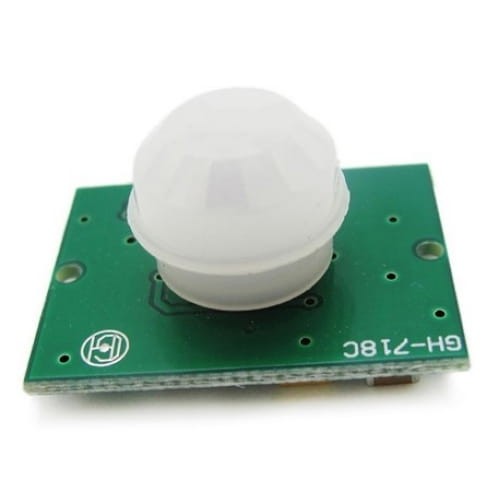

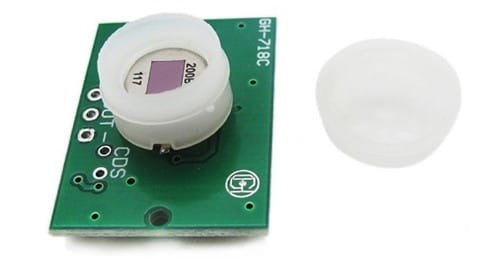

Tiny PIR Motion Sensor Module
towar niedostępny
Opis
Destripion
Overview
Highly integrated module popularly used for entry detection, it complies with microcontroller or DC loads.
Specification
- Input Voltage: DC 4.5-20V
- Static current: 50uA
- Output signal: 0,3V (Output high when motion detected)
- Sentry Angle: 110 degree
- Sentry Distance: max 7 m
- Shunt for setting overide trigger: H - Yes, L - No
Advantage
Smaller size, Simple,easy to adopt insystem.
Specification
Module Type | Sensor |
Weight | 15.00g |
Model | IM120628011 |
Board Size | NULL |
Version | 1.0 |
Operation Level | Digital 5V |
Power Supply | External 5V |
