Wyświetlacz LCD 1602 niebieski
towar niedostępny
Opis

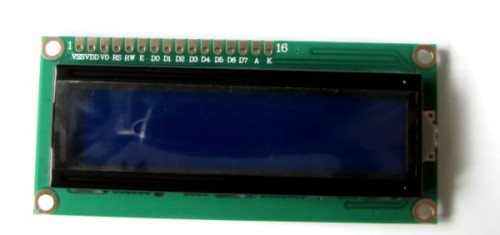

Wyświetlacz LCD 16x02 niebieskie podświetlanie białe napisy.
Dane podstawowe:
- 16 znaków, 2 linie
- podświetlanie: niebieskie
- znaki: białe
- sterownik: zgodny z HD44780
- napięcie zasilania 5V

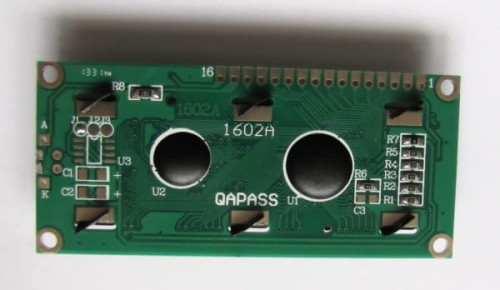

Wyprowadzenia:
PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
---|---|---|---|
1 | VSS | Ground | 0V (GND) |
2 | VCC | Power Supply For Logic Circuit | +5V |
3 | VEE | LCD Contrast Adjustment | |
4 | RS | Instruction/Data Register Selection | RS = 0 : Instruction Register RS = 1 : Data Register |
5 | R/W | Read/Write Selection | R/W = 0 : Register Write R/W = 1 : Register Read |
6 | E | Enable Signal | |
7 | DB0 | Data Input/Output Lines | 8 BIT: DB0-DB7 |
8 | DB1 | ||
9 | DB2 | ||
10 | DB3 | ||
11 | DB4 | ||
12 | DB5 | ||
13 | DB6 | ||
14 | DB7 | ||
15 | LED+ | Supply Voltage For LED+ | +5V |
16 | LED- | Supply Voltage For LED- | 0V |
Wymiary zewnętrzne:
