16x2 LCD + IO Shield for Odroid-C2 C1+ C0

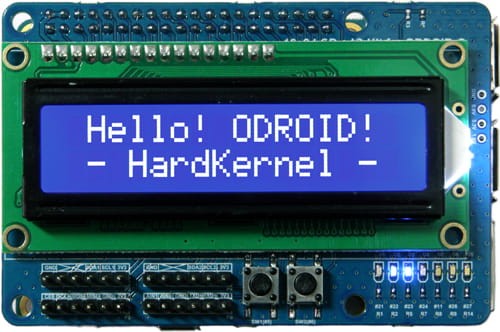

16x2 LCD + IO Shield for ODROID-C1 / C0 / C2
This Shield makes it easy to use
- Blue and white 16x2 Character LCD.
- 7 x Blue LEDs
- 2 x tact switches
- 4 x 6pin IO ports
Dimension : 85 x 56mm (3.35” x 2.2”)
Schematics : DOWNLOAD HERE

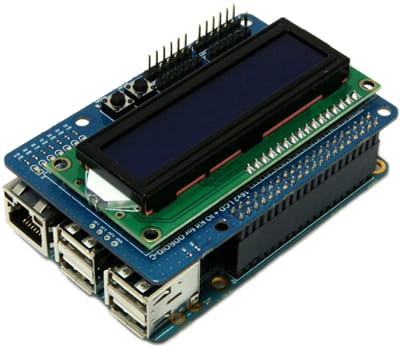

This shield is perfect for when you want to build a stand-alone project with its own user interface.
The 2 buttons allow basic control without having to attach a bulky computer.
7 LEDs can be used as a level meter of system resources.
6pin header connector is compatible with our Weather board.
On the bottom side, there is a rubber bumpon which makes it a little more mechanically stable.
The example code and library can be found in our WiKi and Github repo.
