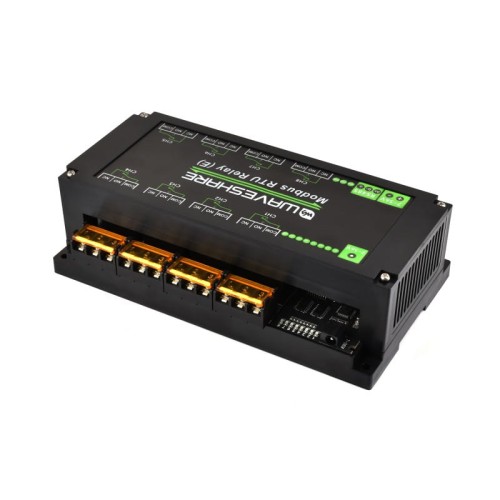

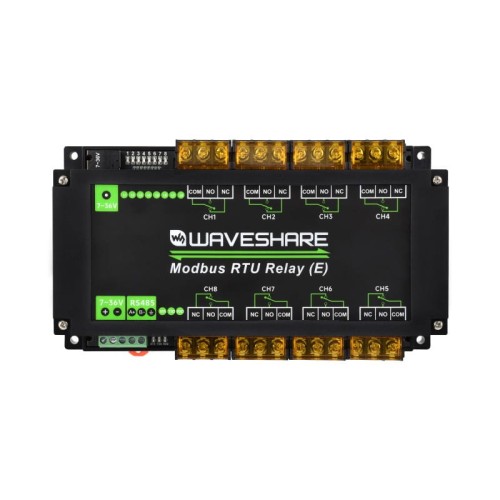

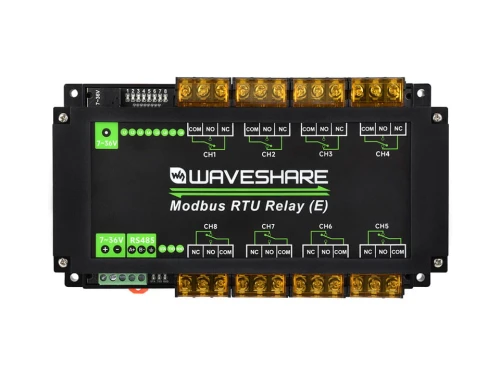

Industrial Relay Module 8-channel RS485 - Modbus RTU, 30A, DIN rail housing
Professional 8-channel relay module with RS485 interface, based on the Modbus RTU protocol. Thanks to its power supply isolation, overvoltage and overload protection and robust DIN rail-mounted ABS housing, it is ideal for industrial applications requiring reliable communication and high switching currents.
Key features:
- RS485 communication - Modbus RTU protocol support
- Configurable device address (1~255), multiple modules can be cascaded
- Short relay on/off function (flash-on/off) - automatic switch-off after time
- Wide power supply range: 7V~36V with built-in stabiliser
- Isolation of power supply and signals - protection and immunity against interference
- Built-in self-resetting fuse, TVS diode, opto-isolation
- Supports high currents: up to 30A (250V AC / 28V DC)
- Dedicated relay driver - with overvoltage protection diode

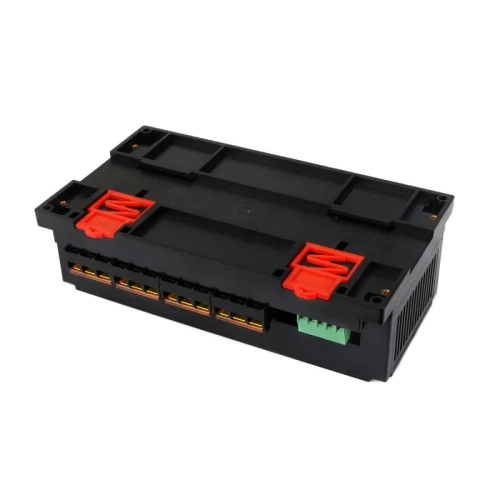

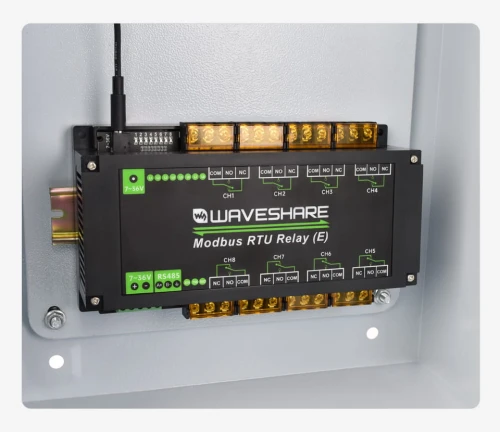

- ABS industrial housing - DIN rail mounting
- Three LEDs: power, TX transmission, RX reception
Interfaces and indicators
LEDs for easy monitoring of operating status

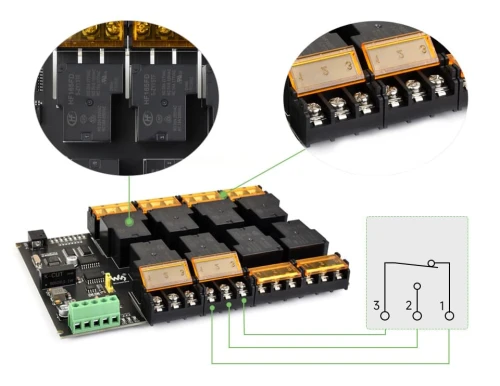

Screw terminals for high current

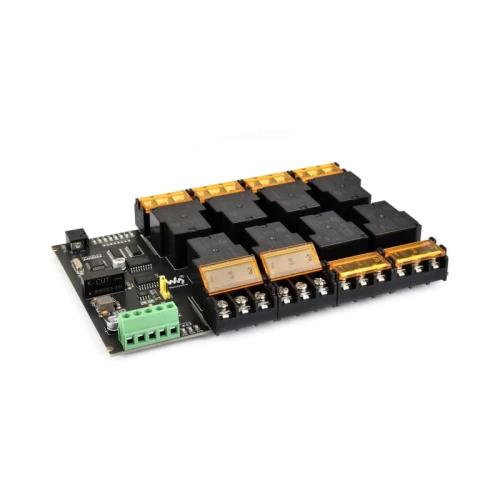

30A relay with high-current load, high quality screw terminals with covers.
Multi-level protection for safer and more reliable use.
RS485 communication
Configurable device address (1-255), multiple devices can be cascaded on the RS485 bus.

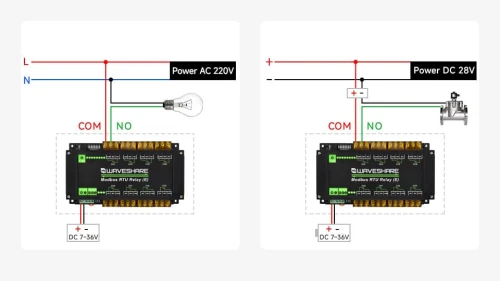

Relay connection
The contact rating of the built-in relay is up to 30A at 250V AC or 30A at 28V DC.
Dimensions
Technical specifications:
- Power supply: 7V ~ 36V
- Interface: RS485
- Protocol: Modbus RTU
- RS485 address: 1~255
- Number of relays: 8 (1NO 1NC)
- Contact load: ≤30A 250V AC or ≤30A 28V DC
- Baud rate: 4800-256000 bps
- Default format: 9600, N, 8, 1
- LED indicators: STA (MCU), TXD, RXD
- Dimensions and mounting: ABS housing, DIN rail
- Weight: 0.278 kg
Set contents
- Modbus RTU Relay 8CH ×1
Note: power supply is not included - 12V power supply recommended.
For convenient testing, we also recommend USB to RS485 converters
Wiki: https://www.waveshare.com/wiki/Modbus_RTU_Relay_(E)
