CAN-BUS Shield for Arduino
・Kup teraz i zapłać za 30 dni
product unavailable
Description

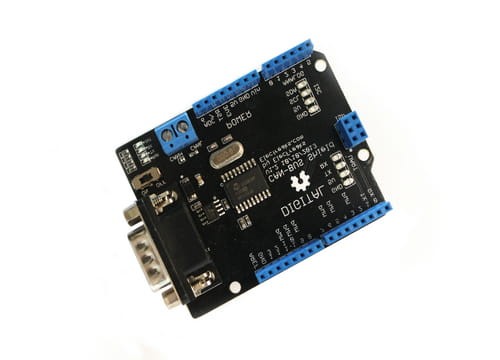

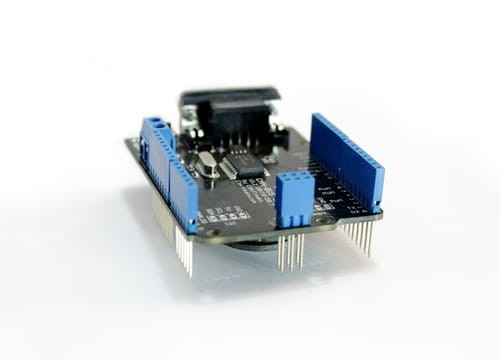

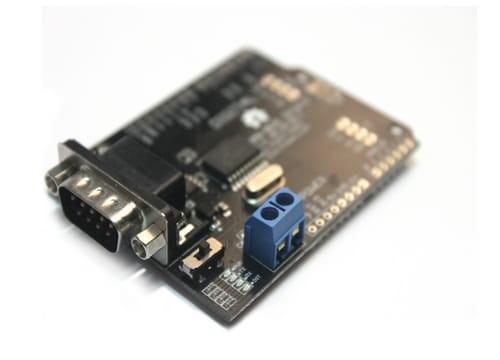

CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus. This CAN-BUS Shield adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 CAN transceiver to give your Arduino/Seeeduino CAN-BUS capibility. With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device or data logger.
Features:
- Implements CAN V2.0B at up to 1 Mb/s
- SPI Interface up to 10 MHz
- Ariduino/ Freaduino Completely compatible
- Standard (11 bit) and extended (29 bit) data and remote frames
- Industrial standard 9 pin sub-D connector
- Two receive buffers with prioritized message storage
- Operating voltage: DC5-12V
- Size: 78mmx53.5m
Applications:
- Industrial control
- Car control field

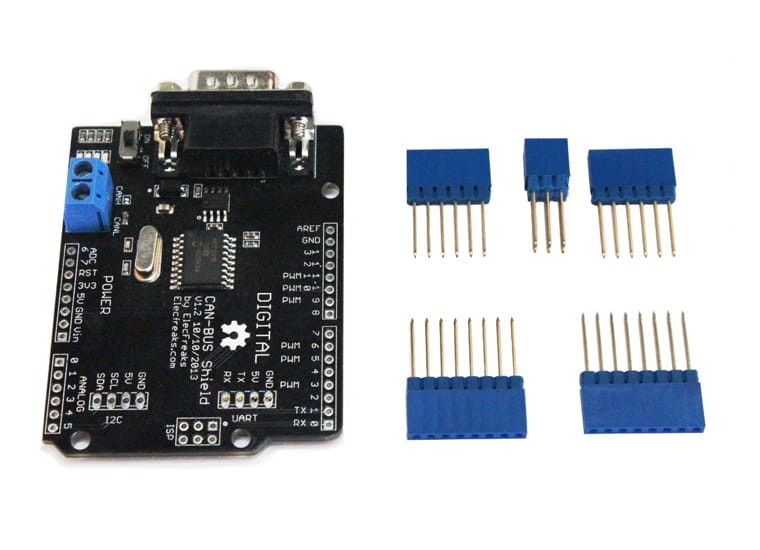

Package List:
- 1 x EFMAPLE
- 2 x 8p header
- 2 x 6p header
- 1 x SPI header
Documents:
- Paintcode
- User_Guide
- Datasheet
- Schematics
- SPEC
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
