Core407Z STM32F407ZGT6

Price: €22.89
incl. 23% TAX, excl. shipping costs
22.89
quantity szt.

product unavailable

Vendor: WaveShare
Product code: Core407Z Waveshare 6446

Description

Overview

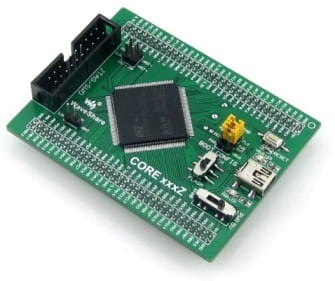

Core407Z is a small STM32 development board that features an STM32F407ZGT6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.

As a minimal ready-to-run system, the Core407Z integrates USB communication interface, JTAG/SWD programming/debugging interface, clock circuit, USB power management, boot mode selection, and so on.

Furthermore, pin headers on the backside allow the Core407Z to be plugged-in your application board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.00mm.

What's On Board



1. STM32F407ZGT6: the high performance STM32 MCU which features:

  • Core: Cortex-M4 32-bit RISC
  • Feature: a full set of single-cycle DSP instructions
  • Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
  • Operating Voltage: 1.8V-3.6V
  • Package: LQFP144
  • Memories: 1024kB Flash, 192+4kB SRAM
  • MCU communication Interfaces:
    • 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C
    • 1 x FSMC, 1 x SDIO, 2 x CAN
    • 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
    • 1 x 10/100 Ethernet MAC
    • 1 x 8 to 14-bit parallel camera interface
  • AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
  • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP

2.  AMS1117-3.3 (on bottom side): 3.3V voltage regulator
3.  MIC2075 (on bottom side): onboard USB power management device
4.  Power supply switch, powered from 5Vin or USB connection
5.  Boot mode switch, for configuring BOOT0 pin
6.  Power indicator
7.  VBUS LED
8.  Reset button
9.  8M crystal oscillator
(on bottom side)
10.32.768K crystal (on bottom side), for internal RTC with calibration
11.JTAG/SWD interface: for debugging/programming
12.USB interface

  • as DEVICE, used for establishing USB communication between PC and the STM32 development board
  • as HOST, connecting to USB devices such as USB flash drive through a USB OTG cable

13.MCU pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
14.5Vin pinheader, 5V power supply is required when using USB HOST/OTG
15.USB HOST/OTG jumper

  • short the jumper when using USB HOST/OTG
  • open the jumper to disconnect from I/O port

16.VBAT selection jumper

  • short the jumper to use system power supply
  • open the jumper to connect the VBAT to external power, such as battery

17.VREF selection jumper

  • short the jumper to connect VREF+ to VCC
  • open the jumper to connect VREF+ to other custom pin via jumper wire

Photos





Note:
Core407Z provides JTAG/SWD debugging interface, yet does NOT integrate any debugging function, a debugger is required.
Mother board and programmer/debugger in the photos are NOT included in the price.



JTAG/SWD Interfaces

The figure 1, figure 2 shows the header pinout of JTAG, SWD interface respectively

Development Resources

Core407Z STM32 development board comes with a User Guide CD including development resources listed as below:

  • Related software (KEIL etc.)
  • Examples in C
  • Schematic (PDF)
  • Development documentations

Dimensions

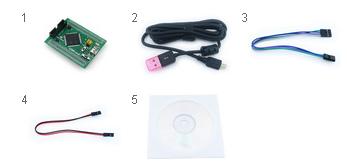

Package Contains

  1. Core407Z development board x 1
  2. USB type A to Mini-B cable x 1
  3. 4-pin wire x 2
  4. 2-pin wire x 2
  5. User guide CD x 1
