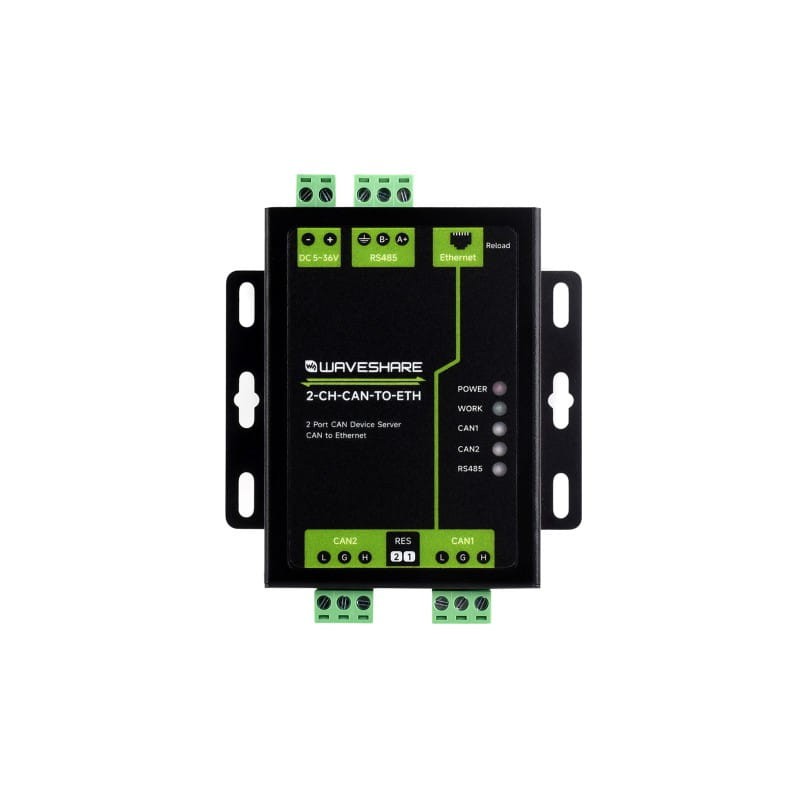

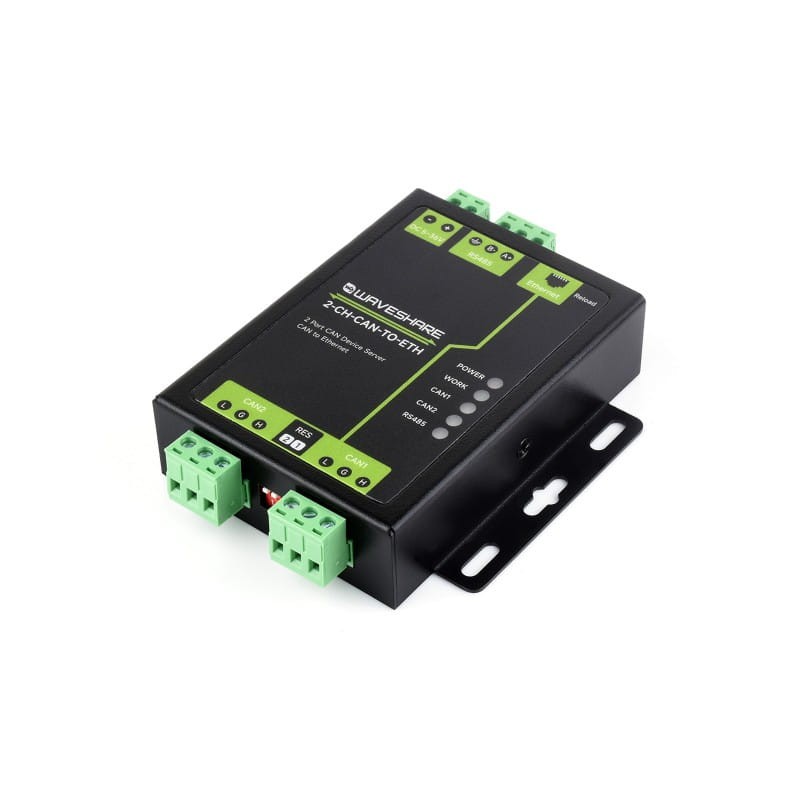

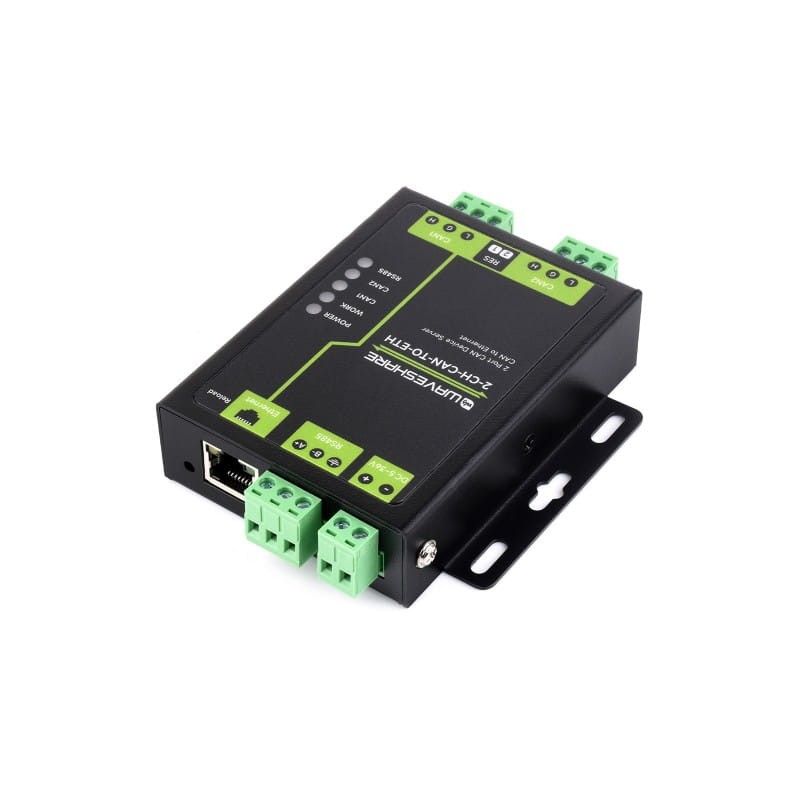

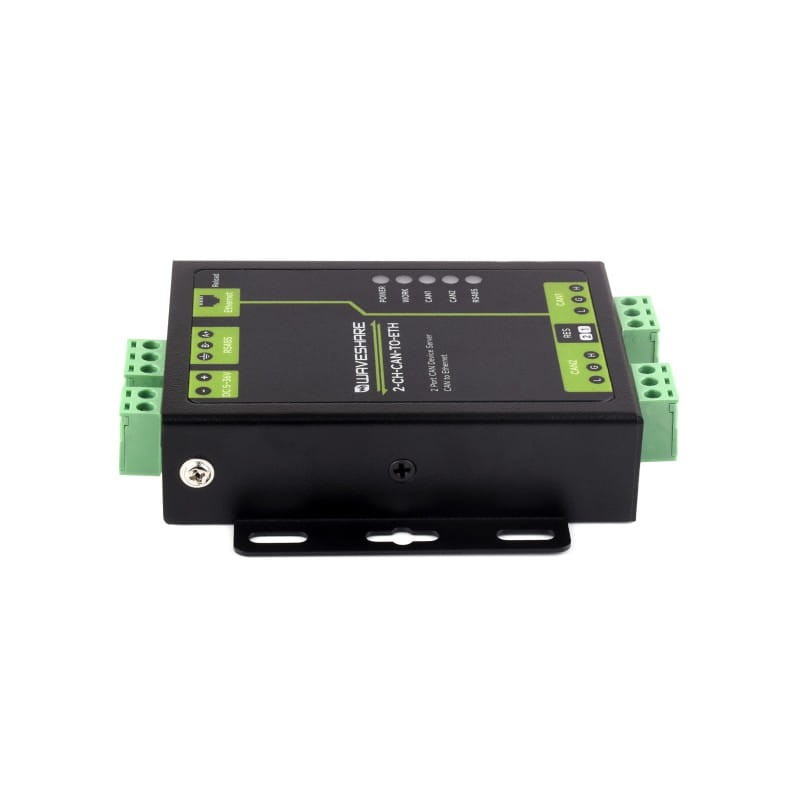

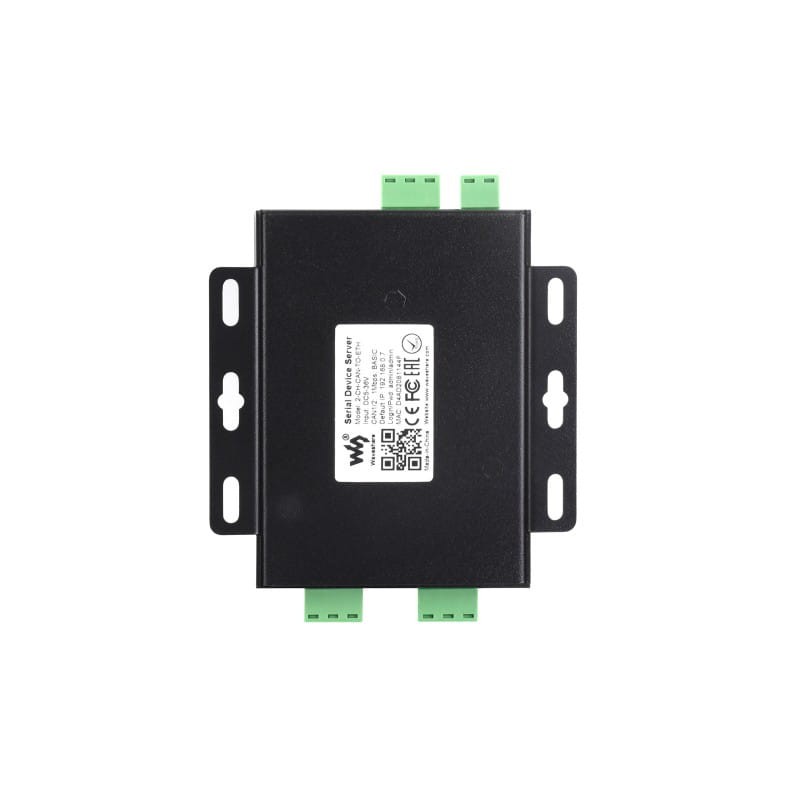

Industrial 2-Channel CAN to Ethernet Server

Industrial 2-Channel CAN to Ethernet Server

The 2-CH-CAN-TO-ETH port server represents a modern solution in the field of integrating industrial systems with network technology. It is a device that enables efficient data communication between a device operating in the CAN (Controller Area Network) standard and a network server via an Ethernet port. With built-in two CAN ports, a single Ethernet port, and advanced TCP/IP protocol stack, this device serves as a bridge facilitating mutual communication and interaction between the CAN bus and the Ethernet network. This functionality opens up new possibilities for extending the reach of the CAN-bus network, which is crucial in many industrial applications.

Constructed of metal, in a compact form, the server is designed for wall mounting installation, facilitating its integration in various environments, from building automation to advanced power monitoring and industrial automation systems. Designed for demanding industrial conditions, the server is equipped with enhanced hardware protections for CAN ports, serial ports, Ethernet ports, and power, ensuring exceptional durability and reliability of operation.

Additionally, the advanced ARM core and industrial temperature range ensure stability and reliability of device operation even in the most demanding conditions. Support for various CAN ID filtering methods, the ability to operate in two modes (BASIC and LOOPBACK), and advanced network configuration features (including static IP addresses, DHCP, and firmware updates over the network) make this port server an extremely flexible and versatile solution for various industrial applications.





Specification:



• Device Ports: CAN/RS485/ETH
• Operating Voltage: DC 5～36V
• Operating Current: 26mA (average) at 36V, 56mA (average) at 12V, 124mA (average) at 5V
• Power Protection: Surge Level 3, Group Pulse Level 3
• Ethernet Port: RJ45, 10/100Mbps, Auto-MDI/MDIX support, 1.5KV electromagnetic isolation
• Serial Port Support: RS485
• Serial Port Transmission Speed: 600bps~115.2Kbps
• CAN Transmission Speed: 10Kbps~1Mbps
• CAN Operation Method: Basic, Loopback
• CAN Protection: Power isolation, signal isolation



Product Features:



• The 2-CH-CAN-TO-ETH port server offers a range of advanced features tailored to various industrial applications
• Advanced hardware protection: Protection of CAN ports, serial ports, Ethernet ports, and power ensures device durability in challenging industrial conditions.
• Enhanced ARM core and industrial temperature range: Ensures stable and reliable operation in a wide temperature range.
• CAN ID filtering support: Allows for safe and convenient data filtering, increasing system security.
• Dynamic network configuration: Support for static IP addresses and DHCP for automatic IP assignment, as well as firmware updates over the network.
• Support for multi-channel SOCKET connections and web-based configuration: Facilitates device management and configuration.
• Keepalive mechanism and user authentication: Enables quick detection and response to connection errors and increases device access security.



























Advanced Protective Circuits:

Module Structure:

Application:

Dimensions:

Set Includes:

1. Industrial 2-Channel CAN to Ethernet Server ×1
2. Power Adapter ×1
3. Screwdriver ×1

Wiki: 2-CH-CAN-TO-ETH
