PCIe to MiniPCIe / GSM / GPS / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5 – Supports 4G MiniPCIe Modules

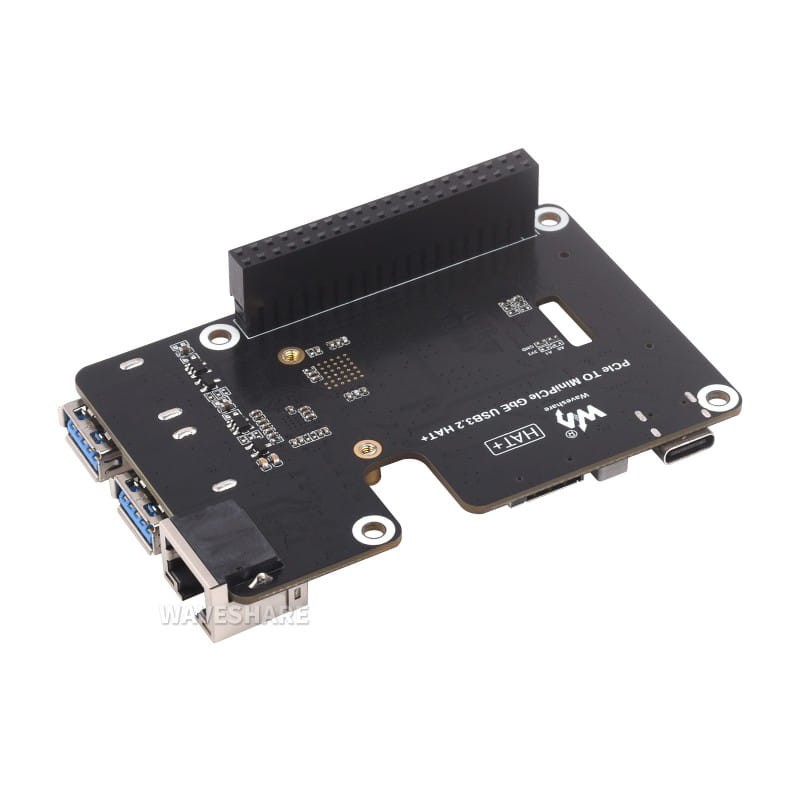

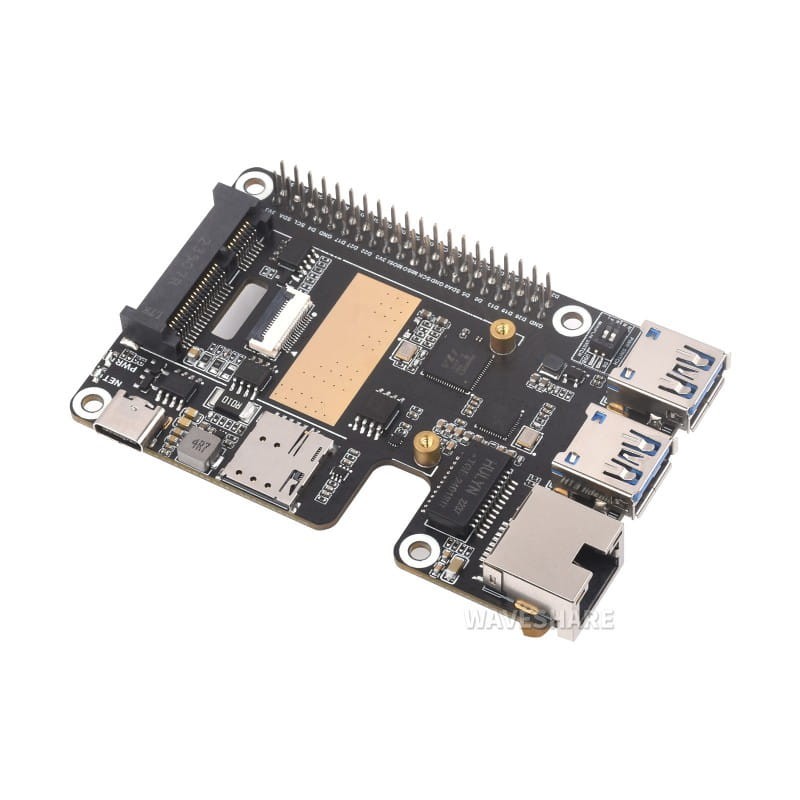

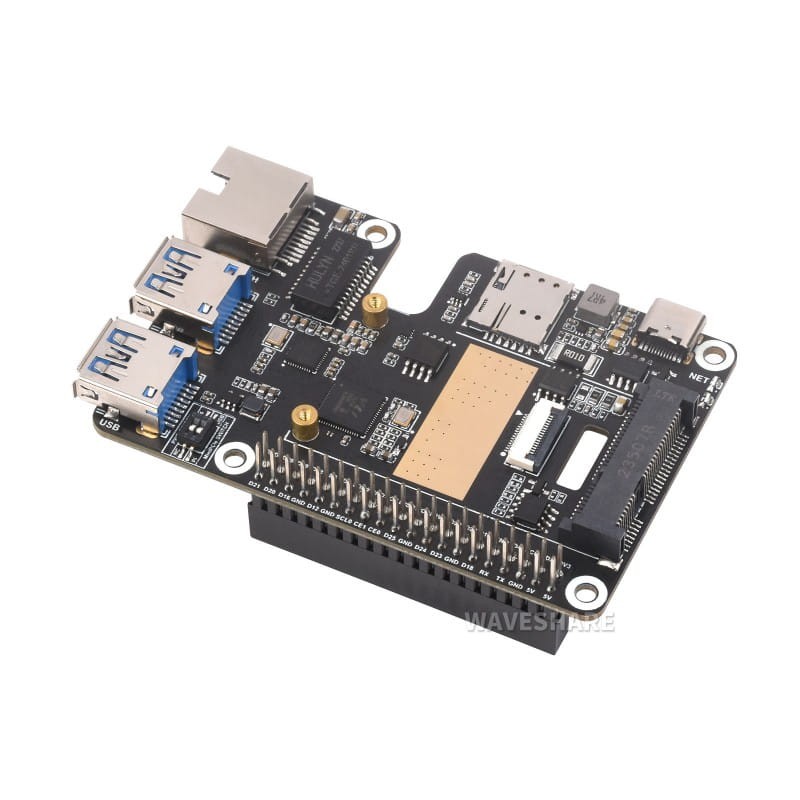

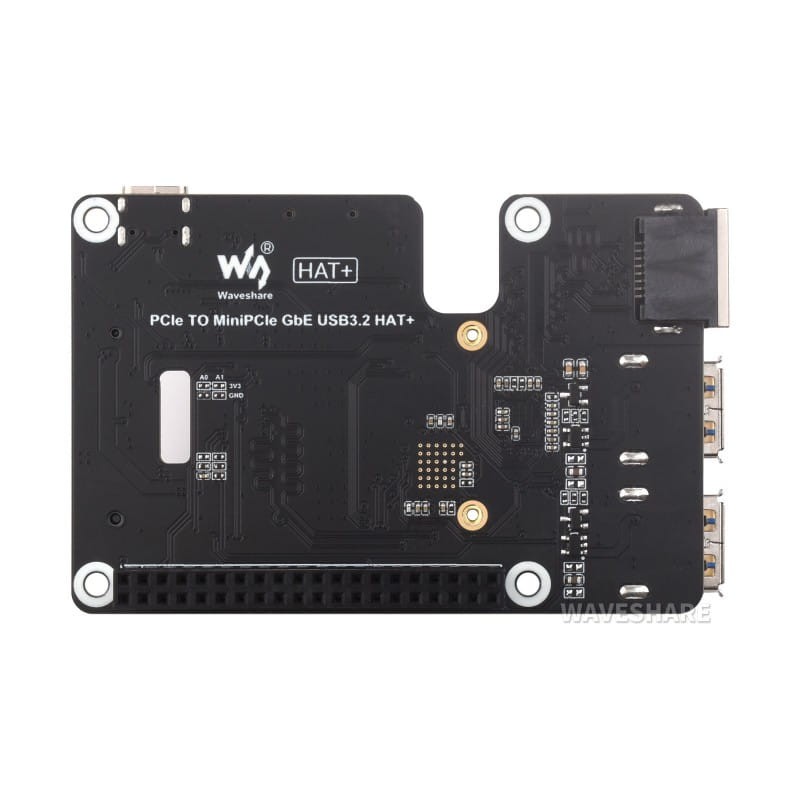

The PCIe TO MiniPCIe/GbE/USB3.2 HAT is an expansion board for Raspberry Pi 5, equipped with a Gigabit Ethernet port, USB 3.2 ports, and a MiniPCIe slot, compatible with 4G modules.
Key Features:
- Designed for Raspberry Pi 5, compliant with HAT+ standard
- Built-in PCIe interface for direct connection to Raspberry Pi 5 via a 16-pin cable
- Expands the PCIe interface with 2 high-speed USB 3.2 Gen1 ports for connecting more peripheral devices
- Expands with 1 Gigabit Ethernet port – equipped with a high-performance RTL8153B chip, with a recessed network port design for aesthetics
- Supports global 4G / 3G / 2G bands:
- LTE Cat-4: up to 50Mbps (upload) / up to 150Mbps (download)
- 3G (HSPA+): up to 5.76Mbps (upload) / up to 42Mbps (download)
- 2G (GPRS/EDGE): up to 236.8Kbps (upload) / up to 236.8Kbps (download)
- GNSS Positioning: Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
- Built-in power monitoring chip and EEPROM – real-time power status monitoring, software control of USB port power

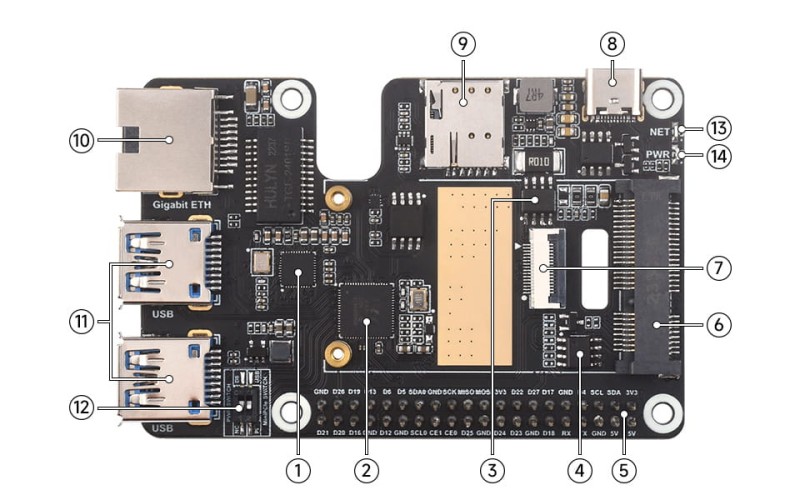

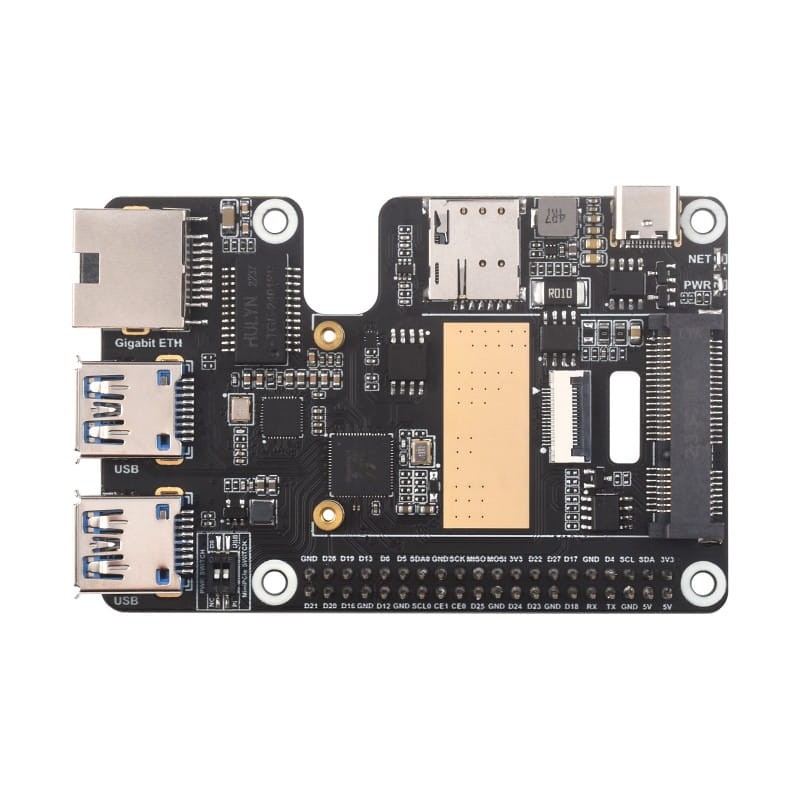

Board Component Description
- RTL8153B
USB to Gigabit ETH converter - VL805
PCIe to USB 3.2 Gen1 HUB Chip - INA219
Power Monitoring Chip - EEPROM
For storing HAT ID and product information - Raspberry Pi GPIO Connector
For connecting Raspberry Pi 5 - MiniPCIe Slot
For connecting a 4G module with MiniPCIe interface - PCIe 16PIN Interface
For connecting to the Raspberry Pi 5's PCIe interface
- Type-C Interface
For 4G network support of Raspberry Pi or PC via USB cable, firmware updates, or external power supply - Nano SIM Card Slot
For installing a Nano-SIM card - Gigabit Ethernet Port
Speed up to 1000Mbps, compatible with 100Mbps - Extended USB 3.2 Gen1 Ports
USB1~USB2 - DIP Switches

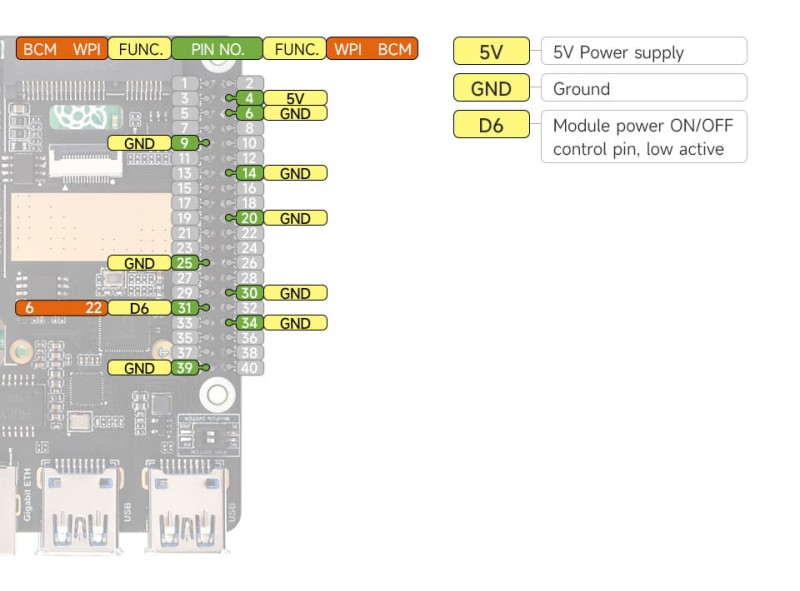

For switching module power control via GPIO pin D6 and the direction of the module's USB signal output - NET Indicator
Module network status indicator - PWR Indicator
Power indicator

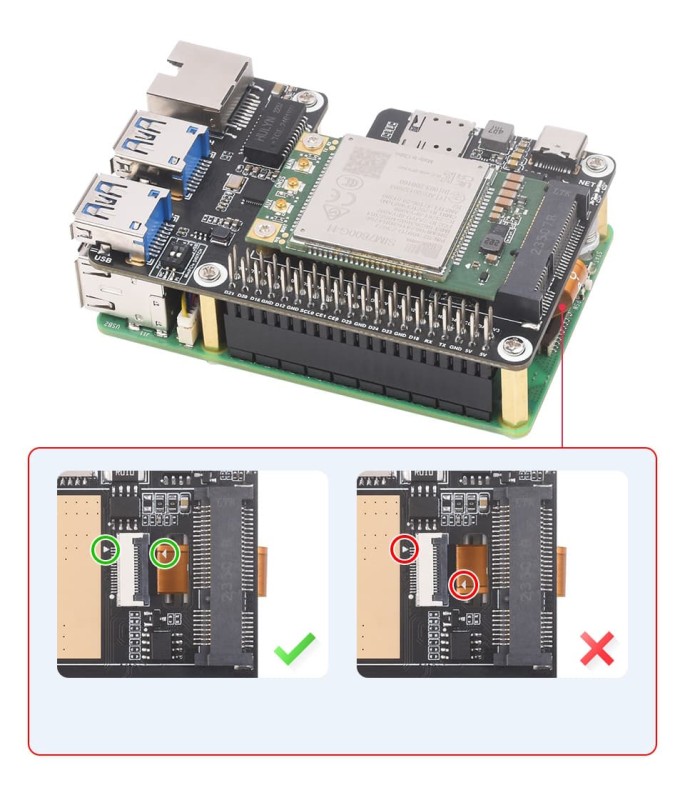

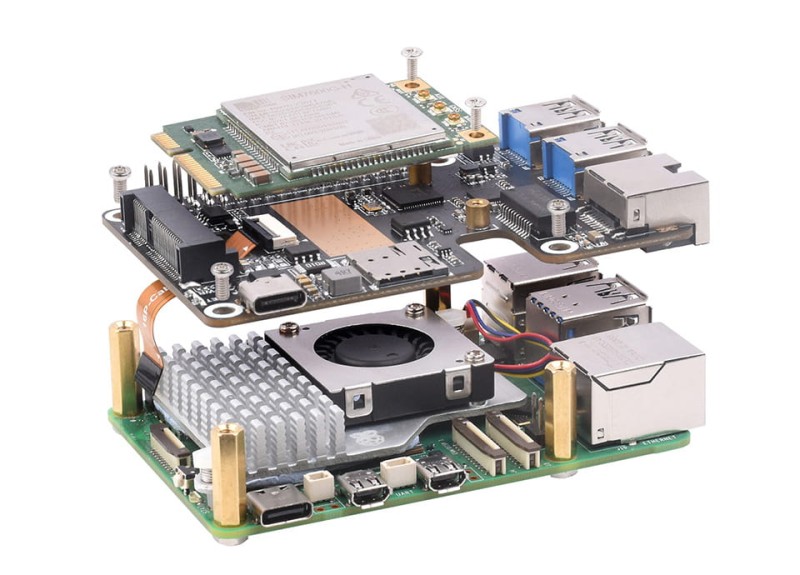

Installation

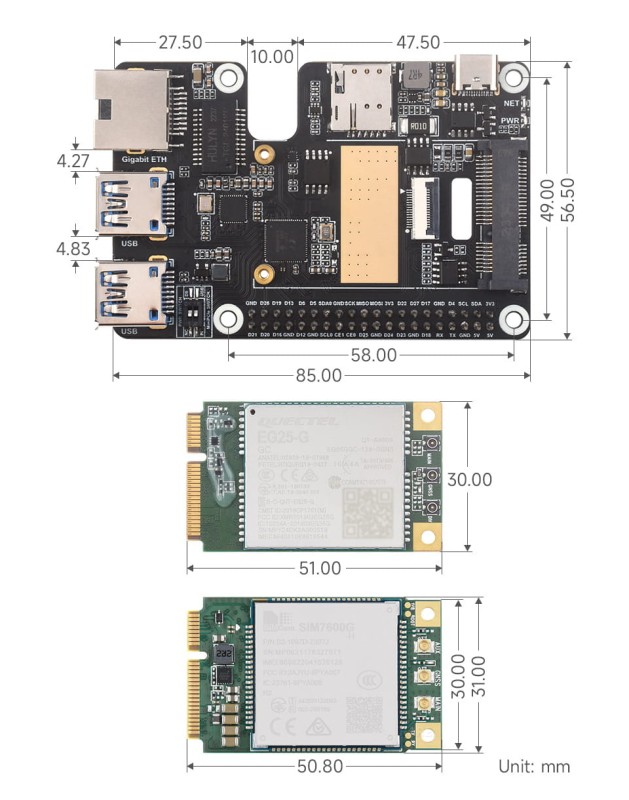

Dimensions
---
Module Parameter Comparison

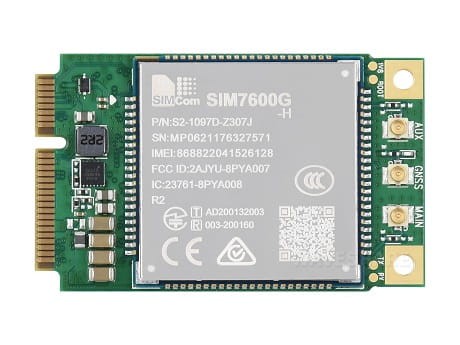

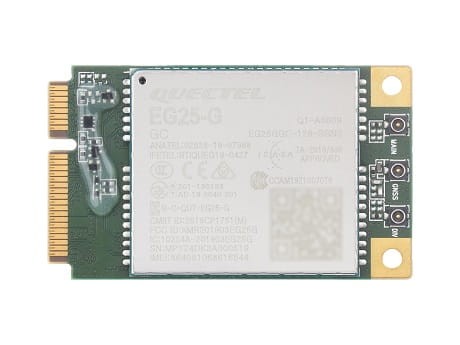

The set does not include a 4G module. Below is a comparison of compatible 4G modules from the SIM7600G-H-PCIE / EG25-G mPCIe series.
| 4G Module | SIM7600G-H-PCIE | EG25-G mPCIe |
|---|---|---|
 |
 |
|
| Frequency Band | ||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| LTE-TDD | B34, B38, B39, B40, B41 | B38, B39, B40, B41 |
| WCDMA | B1, B2, B4, B5, B6, B8, B19 | |
| GSM | 850, 900, 1800, 1900 MHz | |
| GNSS | GPS, Beidou, GLONASS, GALILEO, QZSS | |
| Data Transfer | ||
| LTE-FDD | 150 Mbps (DL) / 50 Mbps (UL) | |
| LTE-TDD | 130 Mbps (DL) / 35 Mbps (UL) | 130 Mbps (DL) / 30 Mbps (UL) |
| HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) | |
| WCDMA | 384 Kbps (DL) / 384 Kbps (UL) | |
| EDGE | 236.8 Kbps (DL) / 236.8 Kbps (UL) | 296 Kbps (DL) / 236.8 Kbps (UL) |
| GPRS | 85.6 Kbps (DL) / 85.6 Kbps (UL) | 107 Kbps (DL) / 85.6 Kbps (UL) |
| Software Features | ||
| Operating System | Windows / Linux / Android | |
| Communication Protocols | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS | TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE |
| SMS | Supports MT, MO, CB, Text, PDU | |
| Software Update | USB/FOTA | USB/DFOTA |
| Hardware Specification | ||
| SIM Card | 1.8V / 3.0V | |
| Antenna Interface | IPEX-1 connector (main LTE antenna + differential LTE antenna + GNSS antenna) | |
| Power Supply | 3V ~ 3.6V | |
| Enclosure | Mini-PCIe | |
| Dimensions | 50.8 × 31.0 × 5.5 mm | 51.0 × 30.0 × 4.9 mm |
| Operating Temperature | -40℃ ~ +80℃ | |
| Applications | ||
| Application Area | Global Coverage | |
| Note: The 4G module is optional; please refer to the "Package Contents" section for the detailed parts list. The modules listed above are tested and supported; if using other modules, please confirm their interface compatibility. | ||
---
Technical Specifications:
- Compatibility: Raspberry Pi 5
- Interfaces: MiniPCIe, Gigabit Ethernet, USB 3.2 Gen1
- Ethernet Chip: RTL8153B
- USB HUB Chip: VL805
- Power Monitoring Chip: INA219
- Positioning: GNSS (GPS, BeiDou, Glonass, GALILEO, QZSS, LBS)
- Supported Modules: MiniPCIe 4G (e.g., SIM7600G-H-PCIE, EG25-G mPCIe)
- Weight: 0.082 kg
---

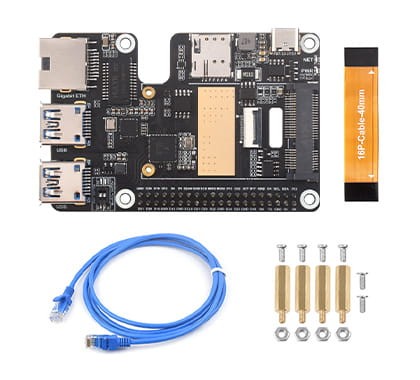

Package Contents
- PCIe TO MiniPCIe GbE USB3.2 HAT+ ×1
- 16P-40mm Cable ×1
- Network Cable ~1.5m ×1
- Screws Set ×1
Wiki: www.waveshare.com/wiki/PCIe_TO_MiniPCIe_GbE_USB3.2_HAT+
