AHRS Attitude Heading Reference System MPU9150

Dostępność:: 1
Wysyłka:: 24 - 48 godzin
Cena:: 460,00 zł 460.00
Cena netto: 373,98 zł
quantity szt.
dodaj do przechowalni
Ocena:: 0
Producent: hardkernel
Kod produktu: myAHRS+

Opis

Polski opis dostępny jest na stronie: myahrs z ukladem mpu9150

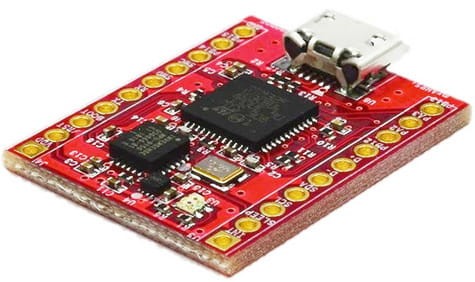

The myAHRS+ is a high performance AHRS(Attitude Heading Reference System).
Its attitude output is more stable to acceleration and magnetic disturbances.

Communication and configuration are enabled via UART/USB interface for user applications. I2C interface is available for embedded application like Arduino projects.

The GUI(myAHRS+ Monitor) is available, which allows users configure all myAHRS+ settings, view attitude of myAHRS+ and IMU(Inertial Measurement Unit) data in realtime and save sensor data in a text file.
Custom user software may be developed using the myAHRS+ SDK.

Tutorial      : https://github.com/withrobot/myAHRS_plus/tree/master/tutorial
Discussion  : http://forum.odroid.com/viewforum.php?f=109



FEATURES

* Sensors
   - Triple axis 16-bit gyroscope : ± 2000 dps
   - Triple axis 16-bit accelerometer : ± 16 g
   - Triple axis 13-bit magnetometer : ± 1200 μT
* On board software
   - Exteneded Kalman filter
   - max 100 Hz output rate
          Attitude : Euler angle, Quaternion
          Sensor : acceleration, rotation rate, magnetic field
* Connectivity
   - USB : Virtual COM PORT
   - UART : Standard baud rates up to 460800 bps
   - I2C : up to 1kHz
* GUI(myAHRS+ Monitor)
   - display attitude and sensor data from myAHRS+ on various viewers
   - Configuration
   - magnetometer calibration


myAHRS+ Odroid XU3 demo





więcej przykładowych filmów: myAHRS+



Notes :
1. This product was developed & manufactured by WITHROBOT co., LTD.
2. Board schematics and firmware source code will NOT be publicly released.
