MarsBoard Rockchip PX2 Development Board

Dostępność:: brak towaru
Cena:: 245,00 zł 245.00
Cena netto: 199,19 zł
ilość szt.
dodaj do przechowalni

Opis

Rockchip PX2 is completely compatible with Rockchip RK3066, PX2 is more focused on industrial application, contrary to Rockchip RK3066 which targets consumer devices such as tablets and TV boxes.

MarsBoard Rockchip PX2 Development Board contains CM-PX2 and SOM-RK3066, SOM-RK3066 is OSHW and PCB files are available for study, learn, modification, re-production.

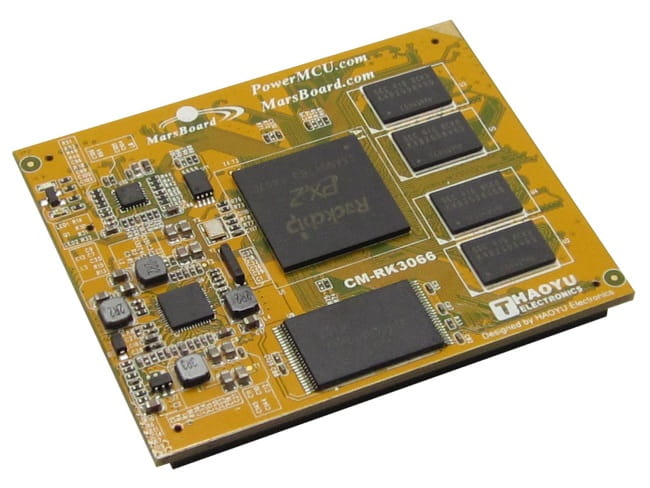

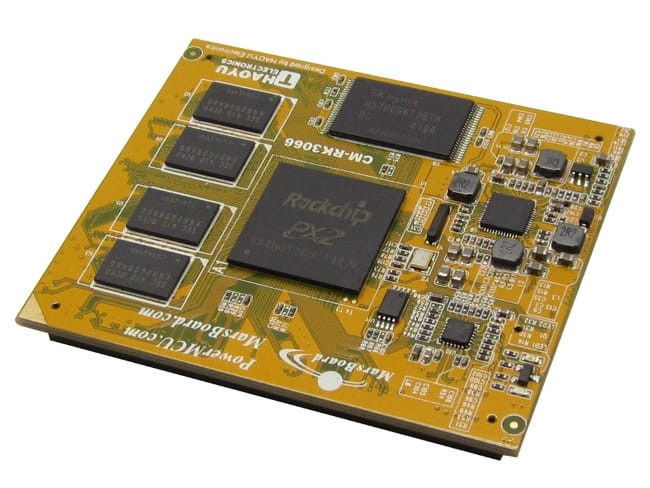

CM-PX2 is System on Chip module, which contains Rockchip PX2 Dual Core Cortex-A9 processor, Power managment Unit TPS659102, Ethernet PHY LAN8720A, 1GB DDR3 memory and 8GB NAND Flash. All PX2 signals are available on 2 connectors x 100 pin and 1 connector x 40 pin with 1.27mm picth.

Features

  • SoC – Rockchip PX2 ARM Cortex A9 Dual-Core CPU @ 1.4GHz + Mali-400MP4 GPU
  • System Memory – 1GB DDR3 DRAM
  • Storage – 8GB Nand Flash
  • Ethernet – 10/100 Mbps

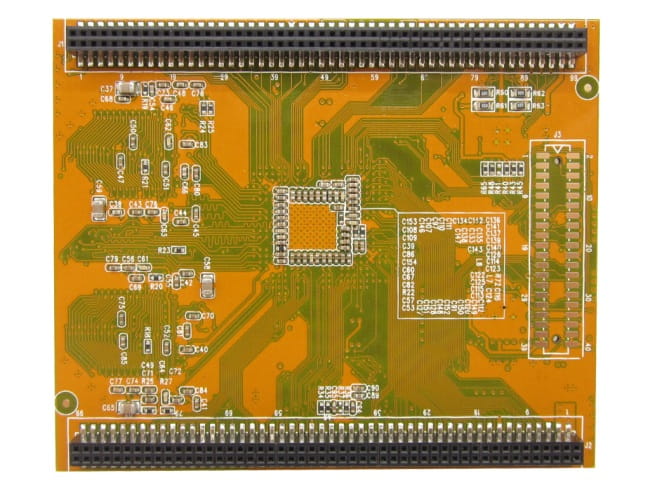

  • Connector - 2 connectors x 100pin, 1 connector x 40pin(No welding)
  • Size - 70 x 58mm

SOM-RK3066 is evaluation board based on CM-RK3066 module and is routed on 2 layers only. SOM-RK3066 is done to explore all features of RK3066 but the files are available and customers can tailor it to their needs.

Reference design for SOM-RK3066 with HDMI, LCD, CTP, Audio Out, Camera, 10/100M Ethernet,USB-OTG,and 4 USB hosts is available with PADS9.5, Protel99SE, AD, PCB files, so everyone can modify and tailor to his needs.


What is on board:

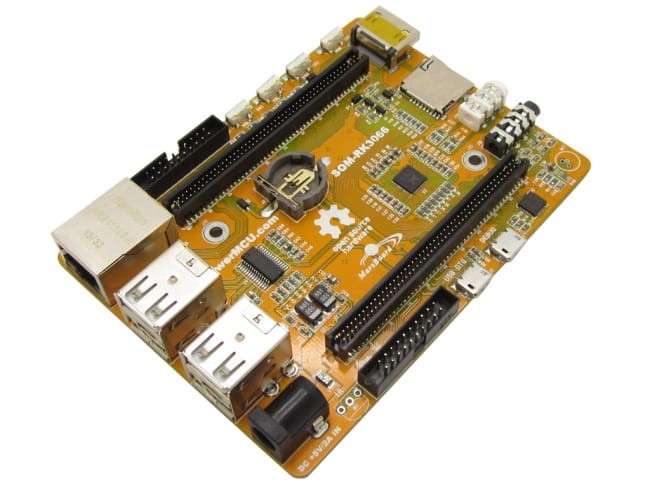

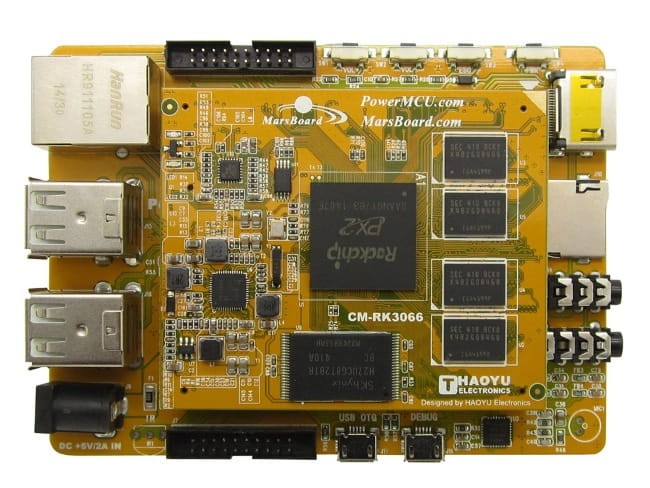

1
  1. Rockchip PX2 ARM Cortex A9 Dual-core @ 1.4Ghz + Mali-400 GPU
  2. 1GB DDR3 SDRAM up to 2GB
  3. 4GB Nand Flash & eMMC FLASH
  4. Power Management Unit - TPS659102
  5. TX indicator LED use for debug
  6. Power Indicator LED
  7. 10/100M Ethernet PHY - LAN8720A
2
  1. HDMI A Type socket
  2. Audio Codec IC - ALC5631Q
  3. mrcro SD card (TF card)socket
  4. HPHONE Output
  5. Speaker Output
  6. MIC Microphone not soldered
  7. DEBUG - CP2102
  8. Micro USB DEBUG port
  9. Micro USB OTG port
  10. Ext Port
  11. IR Receiver - not soldered
  12. Power Supply - 5V/2A
  13. 2 x USB 2.0 Host port
  14. CR1220 RTC Battery Holder
  15. 2 x USB 2.0 Host port
  16. RJ45 10/100M Ethernet
  17. USB 2.0 Host IC - FE1.1S
  18. Ext Port - Camera CIF port
  19. VOL + (Recover Key), VOL -, ESC, Power KEY (from left to right)
3
  1. J3, expansion 20x2 pin 1.27MM
  2. J2, expansion 50x2 pin 1.27MM
  3. J1, expansion 50x2 pin 1.27MM
4
  1. LCD Interface


Download

The following pages contain links to binaries, Micro SD card images and sources.

Wiki: link



Package Contains:

1.  MarsBoard PX2 x 1

2. USB wifi ( RTL8188EU) x 1
