Ultradzwiękowy czujnik odległości - bez pola martwego: SDM-IO

Dostępność:: brak towaru
Cena:: 23,75 zł 23.75
Cena netto: 19,31 zł
ilość szt.
dodaj do przechowalni
Ocena:: 0
Producent: IteadStudio
Kod produktu: IM120628006

Opis

dokładny opis czujnika znajduje sie na stronie: link

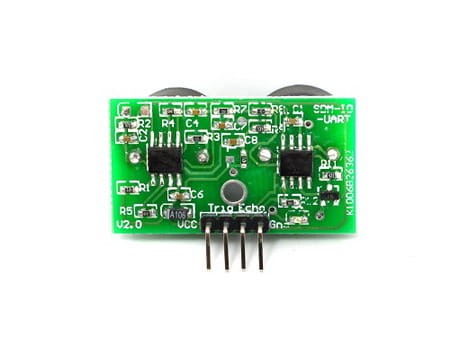

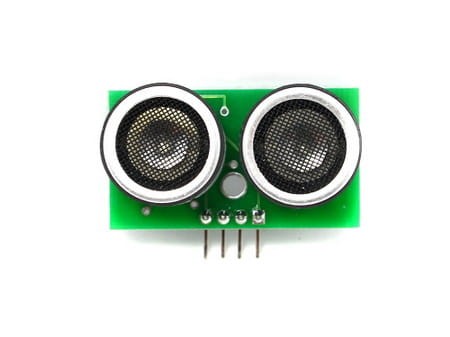

SDM-IO is a stable and measure the distance accurately ultrasonic module which provides 0cm - 1500mm non-contact measurement function,the ranging accuracy can reach to 3mm. Its performance can compare with SRF05/SRF02 ultrasonic distance measuring module, also it has non-blind (From 0-1cm the measurement results are not accurate when we test, but more than 1cm are accurate) design

Specification:

  • Supply voltage 3.8 - 5.5 V
  • Global Current Consumption 8 mA
  • Ultrasonic Frequency 40k Hz
  • Maximal Range 1500 mm
  • Minimal Range 0 cm
  • Resolution 3 mm
  • Trigger Pulse Width 10 μs
  • Sensor Angle 15 degrees
  • Outline Dimension 37x20x15 mm





Work Flow


1.The IO triggers ranging from 0 to the TRIG signal at least 10us;

2. The module automatically sends eight 40khz square wave, automatically detects whether a signal return;

3. Return signal back, through the ECHO output 10 signal, TRIG = 1 to the ECHO is the ultrasonic duration of time from launch to return. Test distance = (time * High speed of sound (340M / S)) / 2;

4. When the TRIG from 0 -> 1, the main control panel starts a timer to control the 10ms timeout control measurements, the time when the timeout 10ms 150us ECHO 0 still no signal that there is no obstacle.



This module is very similar with the HC-SR04, but the shoter blind zone and the samller size, so yuo can use the arduino library we provided to drive this moudle the same as HC-SR04.
