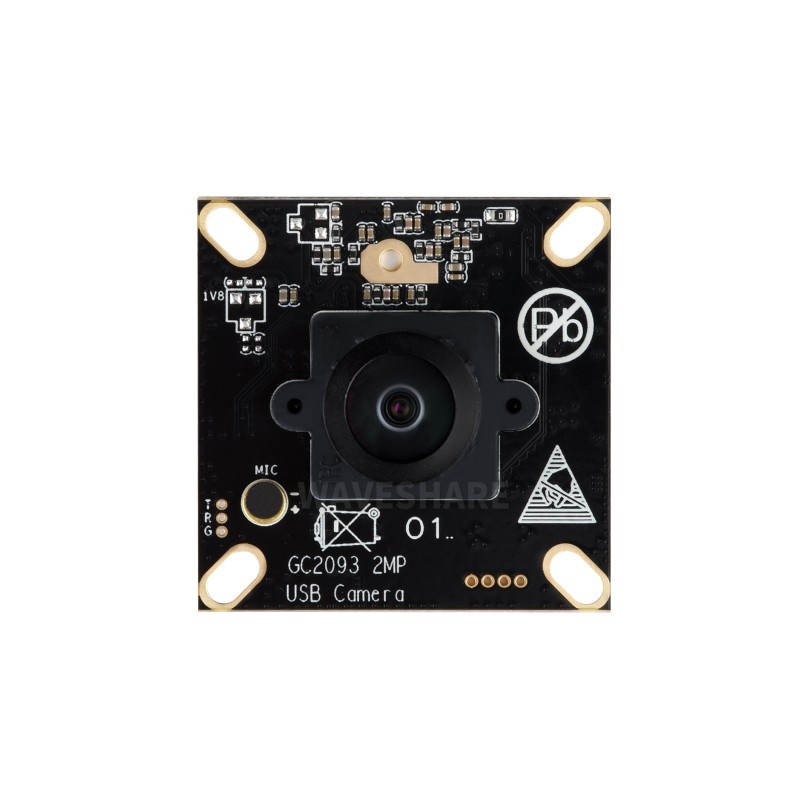

2MP USB Camera GC2093 M12 – WDR 170° Microphone Plug & Play
A 2MP resolution M12 USB camera module, based on the high-quality GC2093 image sensor. Thanks to the WDR (Wide Dynamic Range) feature, the camera performs excellently in difficult lighting conditions, such as strong backlight. Equipped with a USB 2.0 interface, a built-in microphone, and a 170° wide-angle lens, it is an ideal plug-and-play solution for many applications.
Key Features:
- WDR (Wide Dynamic Range) Function – excellent image quality in difficult lighting conditions, e.g., against the light. Dynamic range up to 105dB in HDR mode.
- 2MP Resolution – the high-quality GC2093 sensor provides a sharp 1920×1080 image.
- Wide-Angle M12 Lens – a field of view of up to 170.2° allows for capturing a wide scene.
- Plug & Play – USB 2.0 interface, requires no driver installation.
- Built-in Microphone – enables simultaneous audio recording.
- Fixed-focus – simple operation without the need for manual adjustment.
Excellent Image with WDR Function
Thanks to its high dynamic range (up to 105dB in HDR mode), the camera performs excellently in scenes with strong background lighting. Whether it's direct sunlight or scenes with high contrast, it effectively balances image brightness, preserving details in both bright and dark areas.
Plug and Play – Easy Connection
The built-in USB 2.0 interface is compatible with various devices, such as PCs and smart devices. Just plug it in to start using.
Technical Specification:
- Pixels: 2MP
- Sensor: GC2093
- Interface: USB 2.0
- Sensor Size: 1/2.9 inch
- Aperture (F): 2.2
- Effective Focal Length (EFL): 2.28 mm
- Field of View (FOV): 170.2°(D) 144°(H) 77.6°(V)
- Focus: Fixed-focus
- IR Filter: 650nm
- Dynamic Range (WDR): 81dB (linear mode), 105dB (HDR mode)
- Image Formats: MJPG, YUY2
- Static Photo Resolution: 1920 × 1080
- Video Recording:
- MJPG: 30FPS @ 1080p/720p/etc.
- YUY2: 15FPS @ 720p, 25FPS @ 480p/etc.
- Audio: Built-in microphone
- Operating Voltage: 5V ± 5%
- Dimensions: 38.00 × 38.00 × 19.01 mm
Dimensions
What's in the Box
- GC2093 2MP USB Camera (A) × 1
- USB-A to 5PIN cable × 1
Wiki: www.waveshare.com/wiki/GC2093_2MP_USB_Camera_(A)
