6-channel WiFi relay module 16A for DIN rail Tuya Smart Life
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

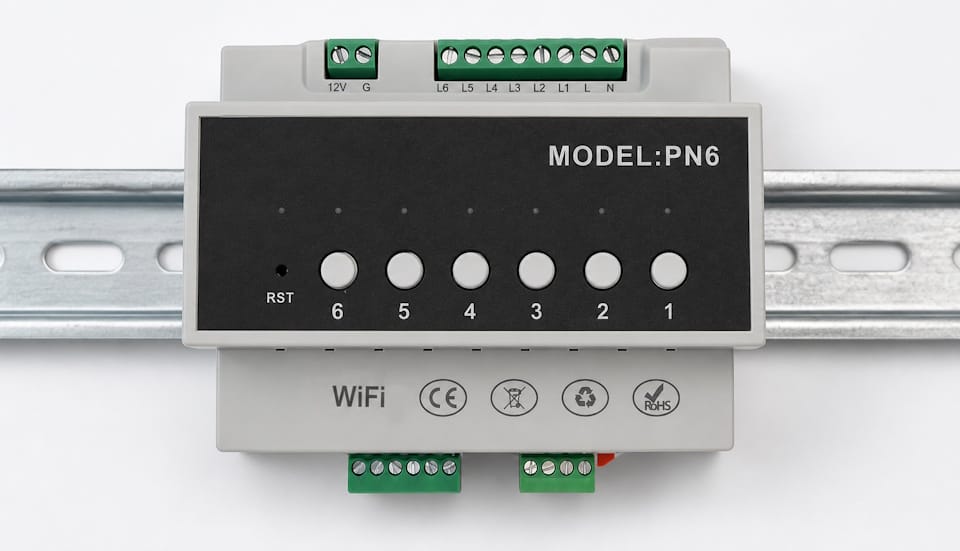

6-channel Tuya WiFi DIN rail relay module
6-channel WiFi relay module is a versatile device designed to control the power supply of peripheral devices such as lighting, roller shutters, projectors, cameras, or advanced conference systems. Thanks to full compatibility with the Tuya ecosystem, the controller is an excellent foundation for expanding smart home and building automation, offering support for up to 16A per channel.
Key features:
- 6 independent 16A relays with built-in buttons for manual control.
- Two module power supply modes: 230V AC or 12V DC.

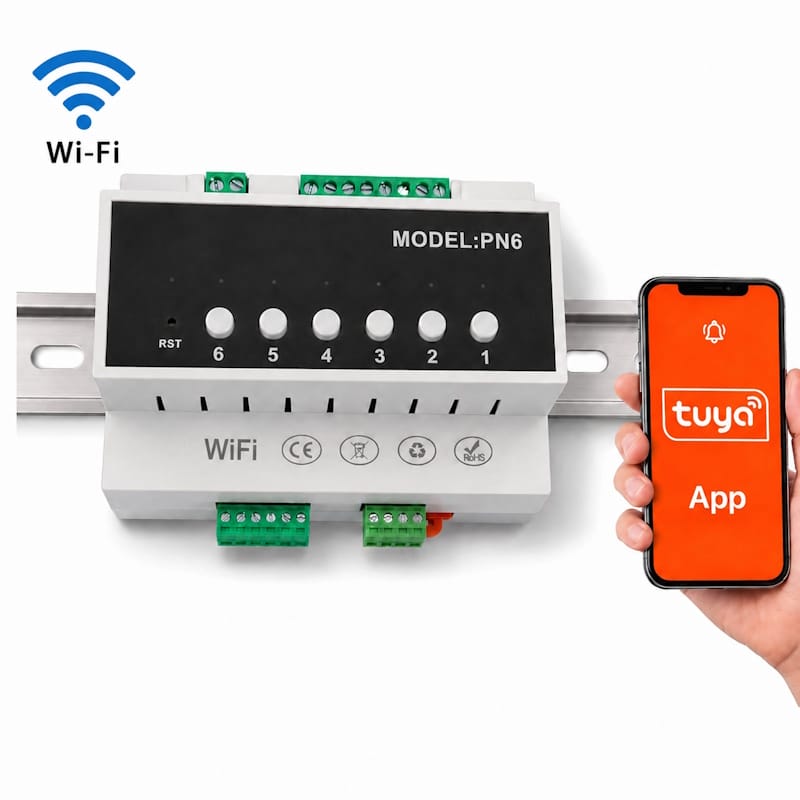

- Full compatibility with the Tuya Smart application (scene creation, remote control).
- Support for standard monostable (bell) and bistable wall switches.
- Convenient and safe mounting on a standard DIN rail.
Flexible connection and power supply options
The device is distinguished by exceptional configuration flexibility, adapting to the characteristics of the electrical installation:
- 230V AC power supply: Standard connection diagram where mains voltage 230V is applied to the relay outputs. Ideal for classic lighting control or roller shutter motors.
- 12V DC power supply (isolated circuits): In this mode, the module is powered by a 12V DC power supply. This allows for controlling devices operating at completely different voltages (e.g., 24V AC solenoid valves for garden irrigation control).
Technical specification
- Connectivity protocol: Wi-Fi 2.4GHz (built-in antenna)
- Ecosystem: Tuya Smart / Smart Life
- Number of supported circuits: 6
- Relay load capacity: 16A per channel
- Module power supply: 230V AC or 12V DC
- Mounting type: DIN rail 35mm
- Manual interface: Buttons for each channel on the front of the housing
- Status indicators: LEDs (channel and power status)
- Additional interfaces: 6 control inputs for external wall switches
Set contents
- 6-channel WiFi DIN rail relay module
