CoreEP3C16 board with ALTERA Cyclone III chip EP3C16Q240C8N
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Overview
CoreEP3C16 is an FPGA core board that features an EP3C16Q240C8N device onboard, supports further expansion.
- onboard Serial Configuration Device EPCS16SI8N
- integrated FPGA basic circuit, such as clock circuit
- onboard nCONFIG button, RESET button, 4 x LEDs
- all the I/O ports are accessible on the pin headers
- onboard JTAG debugging/programming interface
- 2.00mm header pitch design, suitable for being plugged-in your application system
What's On Board
- EP3C16Q240C8N: the ALTERA Cyclone III FPGA device which features:
- Operating Frequency: 50MHz
- Operating Voltage: 1.15V～3.465V
- Package: QFP240
- I/Os: 136
- LEs: 15408
- RAM: 504kb
- PLLs: 4
- Debugging/Programming: supports JTAG
- AMS1117-3.3, 3.3V voltage regulator
- AMS1117-2.5, 2.5V voltage regulator
- AMS1117-1.2, 1.2V voltage regulator
- EPCS16, onboard serial FLASH memory, for storing code
- Power indicator
- LEDs
- Reset button
- nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
- 50M active crystal oscillator
- JTAG interface: for debugging/programming
- FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

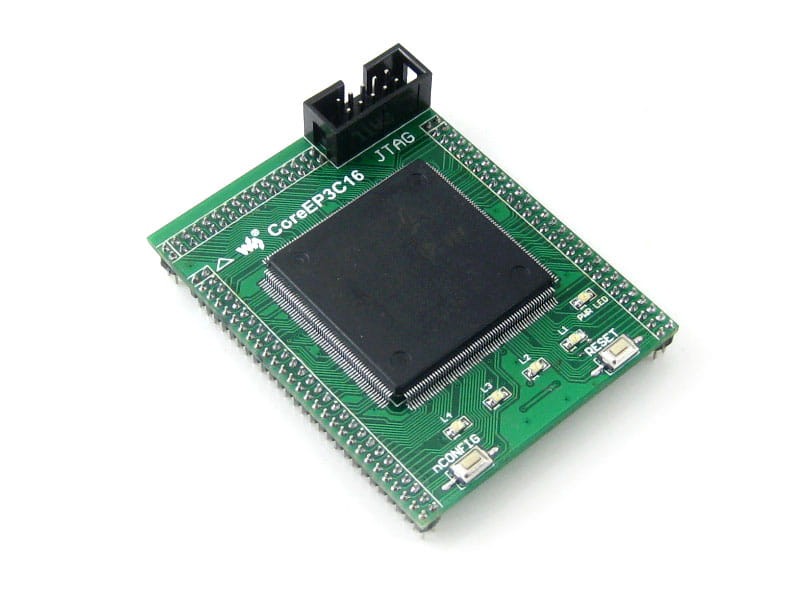

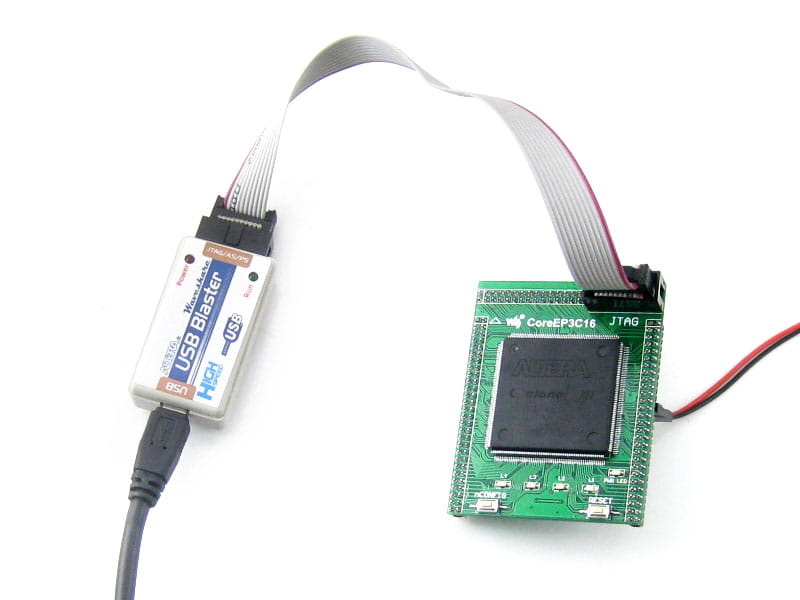

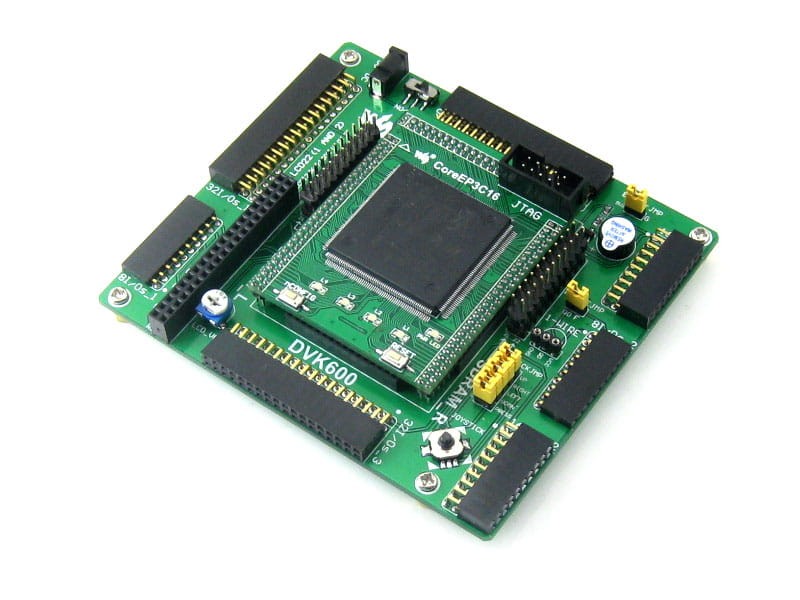

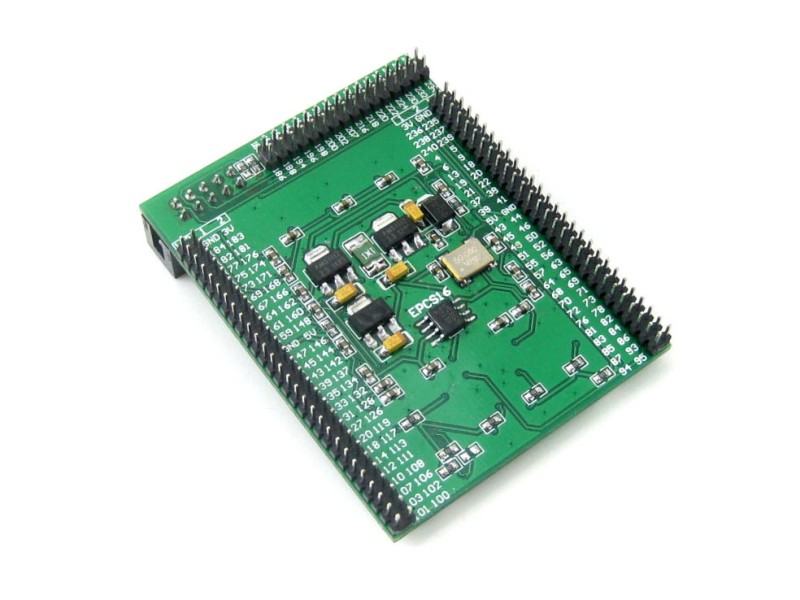

Photos
Note:
CoreEP3C16 provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.
Mother board and programmer/debugger in the photos are NOT included in the price.
JTAG Interface
The figure below shows the header pinout of JTAG
Development Resources
CoreEP3C16 FPGA core board comes with a User Guide CD including development resources listed as below:
- Related software (Quaters II, NIOS II etc.)
- Demo code (Verilog, VHDL, NIOS II C)
- Schematic (PDF)
- FPGA development documentations
Package Contains
- CoreEP3C16 core board x 1
- User guide CD x 1
