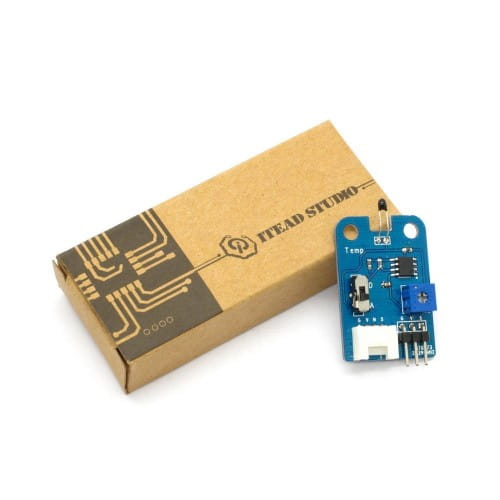

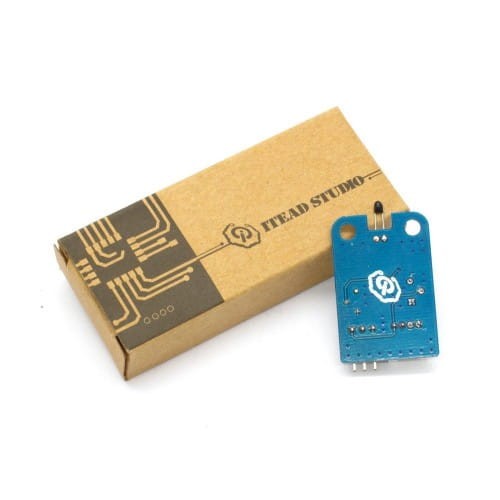

ELECTRONIC BRICK - TEMPERATURE SENSOR BRICK
・Kup teraz i zapłać za 30 dni
product unavailable
Description
Electronic brick of temperature sensor is mainly used to detect the temperature changes in the environment. The control board can get the current temperature information via analog pins. Generally speaking, the resistance of temperature sensitive resistor decreases with the increase of temperature.
Features
1. Plug and play, easy to use. Compatible with the mainstream 2.54 interfaces and 4-Pin Grove interfaces in the market.
2. With use of M4 standard fixed holes, compatible with M4-standard kits such as Lego and Makeblock.
3. With switch to shift between analog and digital output. Able to read the specific temperature information (analog) or the over-high or over-low temperature information according to the threshold (digital). The adjustable potentiometer is used to set the temperature threshold. With hysteresis comparator circuit for more stable digital output voltage.
4. Detecting direction can be rotated for better adaption.
Specifications
| PCB Size | 36.0mm X 24.0mm X 1.6mm |
| Working voltage | 3.3 or 5V DC |
| Operating voltage | 3.3 or 5V DC |
| Compatible interfaces | 2.54 3-pin interface and 4-pin Grove interface(1) |
Note 1： D for digital output port, A for analog output port, S for analog/digital output port ( defined according to the switch), V and G for voltage at the common collector and ground respectively
Note 2： When setting as analog output, output range is 0-3.3V or 0-5V according to the working voltage (V,G); when setting as digital output, output is 0/3.3V or 0/5V according to the working voltage (V,G).
Electrical characteristics
| Parameter | Min. | Typical | Max. | Unit |
| Working voltage | 2.1 | 5 | 5.5 | VDC |
| Analog output voltage（VCC=5V） | 0 | Vout | 5 | V |
| Digital output voltage（VCC=5V） | 0 | - | 5 | V |
| Working current（VCC=5V） | - | 5 | - | mA |
| Temperature sensitive resistor（temperature is 25℃） | - | 10 | - | kohm |
| Threshold hysteresis ΔUth | - | VCC*0.09 | - | V |
Temperature Vs. Thermistor resistance
Hardware

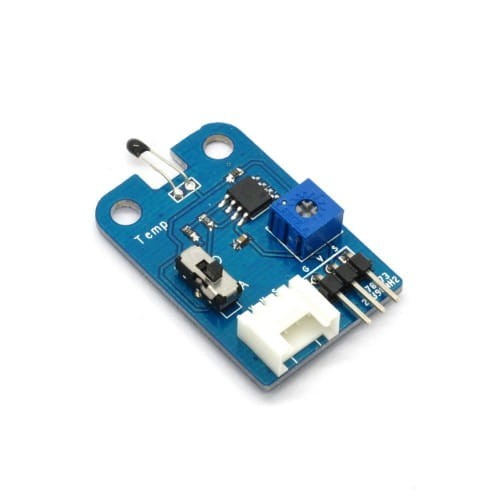

Top view
Switch and indicator
1. Regulating of threshold voltage:
The threshold voltage is a voltage for comparison. When the temperature value read by the sensor is above the threshold value, a low level (0V) will be digitally output; when the temperature value read by the sensor is below the threshold value, a high level (3.3V or 5V) will be digitally output. In this way, the digital pin can be used directly to read the current temperature in the environment to see if it is above the threshold or not. The threshold voltage can be regulated by simply twisting the potentiometer which is shown in the following diagram, and it increases by rotating to left side and decreases by rotating to right side.
2. Switch to shift between analog and digital output
For S pin in 2.54mm 3-pin interface and 4-pin Grove interface, it outputs analog signals when switch is pushed to A terminal and digital signals when pushed to D terminal. When there is analog signal output, it can read the specific temperature value; when there is digital signal output, it can only indicate whether the temperature is above threshold value or not.
DEMO
1. Push the snap switch of sensor to analog output, connect S port to A0 port of Arduino board, and we will use the following program to read the analog value of temperature and send it to computer for display via the serial port.
|
1
2
3
4
5
6
7
8
|
int ASignal = A0;void setup() { Serial.begin(9600);}void loop() { int sensorValue = analogRead(ASignal); Serial.println(voltage);} |
2.Push the snap switch of sensor to digital output, connect S port to D2 port of Arduino board, and we will use the following program to read the digital value of temperature and send the threshold condition to computer for display.
|
1
2
3
4
5
6
7
8
9
10
11
12
|
int DSIGNAL = D2;void setup(){ Serial.begin(9600); pinMode(DSIGNAL, INPUT);}void loop(){ int DsignalState = digitalRead(DSIGNAL); Serial.println(DsignalState); delay(100); } |
Download
