Eight-Channel Modbus RTU - 0-25mA Current Output
Modbus RTU Analog Output 8CH is an analog output module designed for industrial applications, offering eight-channel simultaneous current output. The device supports the Modbus RTU protocol and is equipped with advanced protective circuits, including power isolation, magnetic isolation, resettable fuse, and TVS (Transil diode for surge suppression), ensuring reliability and interference resistance. The integrated voltage regulator supports a wide range of power supply from 7~36V, while uniform power and magnetic isolation guarantee stable voltage and signal isolation without the need for additional power supply. 12-bit DA conversion and high-precision resistors ensure accurate output data.
Specification:
- Communication Interface: RS485
- Transmission Rate: 4800 to 256000, default 9600, N, 8, 1
- Protocol: Standard Modbus RTU
- Power Supply: DC 7~36V
- Output: 8-channel current output
- Resolution: 12-bit, 1μA
- Range: 0~20mA
- Output Accuracy: ±0.03mA
Features:
- Supports Modbus RTU protocol commands via RS485 and outputting data to 0~20mA sensor.
- Built-in power and RS485 signal isolation, ensuring stable insulation voltage, high reliability, and interference resistance.
- Integrated TVS, resettable fuse, and protective diode, providing protection against surges, transient overvoltages, overloads, and voltage transients, suitable for industrial environments with high requirements.
Supports sending Modbus RTU protocol commands via RS485
Industrial-grade isolated protection:
- Voltage regulator
- Power isolation
- Magnetic isolation
- TVS
- Fuses
- Operational amplifier
- EDS Protection
High-precision analog output:
Connection Diagram:
Wide-voltage power supply and isolated RS485 interface for easy integration and reliable operation:

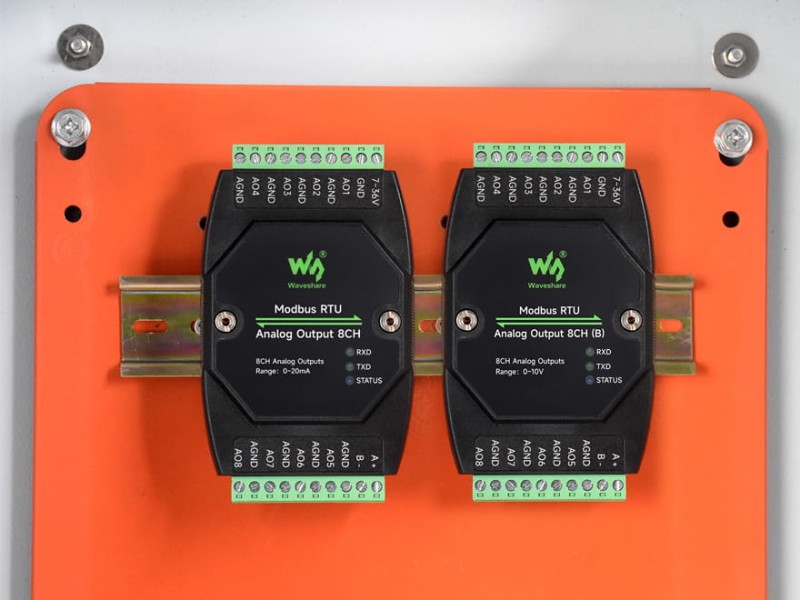

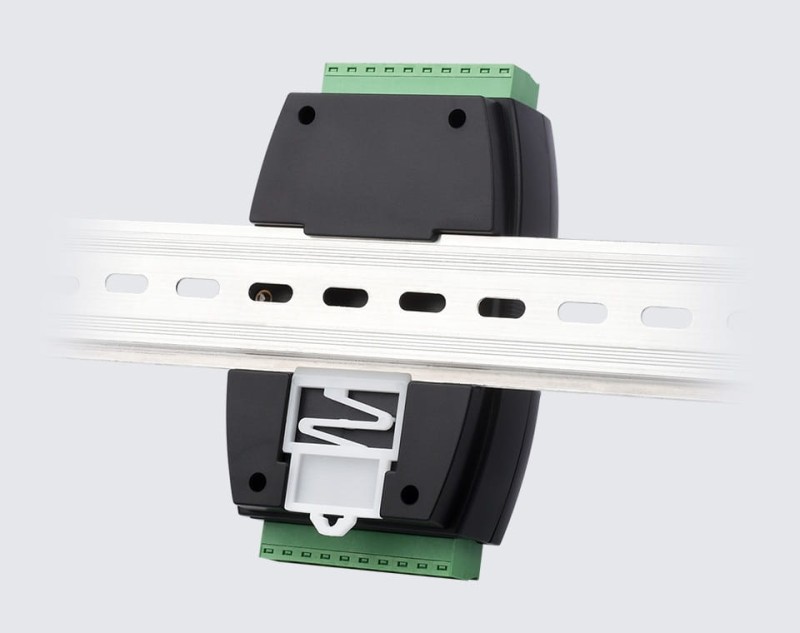

DIN rail mounting capability:
Stackable capability:

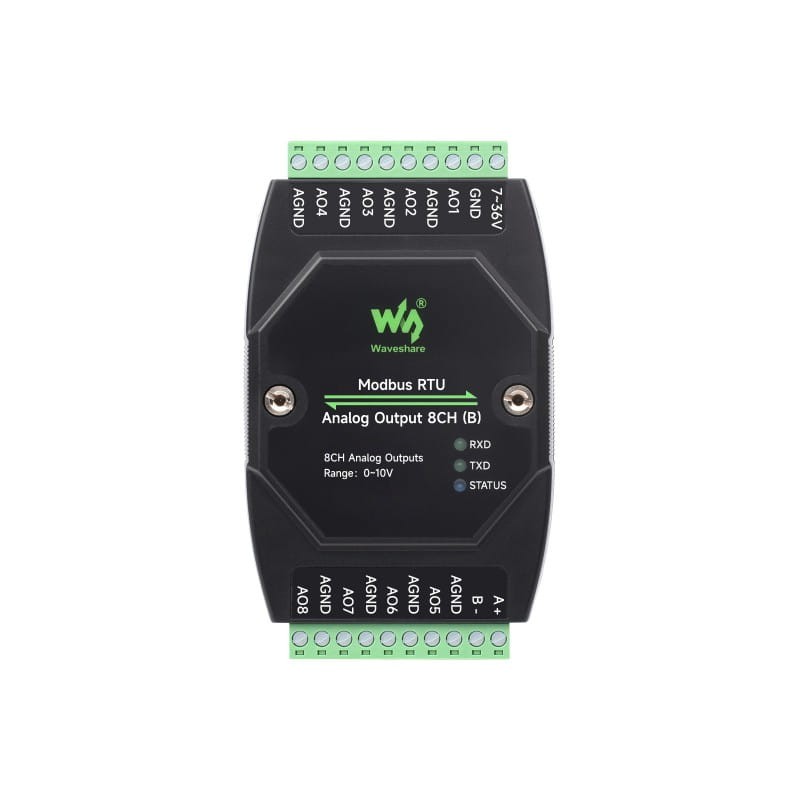

Presentation:
Dimensions:
Package Includes:
- Eight-Channel Modbus RTU - 0-25mA Current Output ×1
- Power Clamp Adapter ×1
- Screwdriver ×1
Wiki: Modbus_RTU_Analog_Output_8CH"
