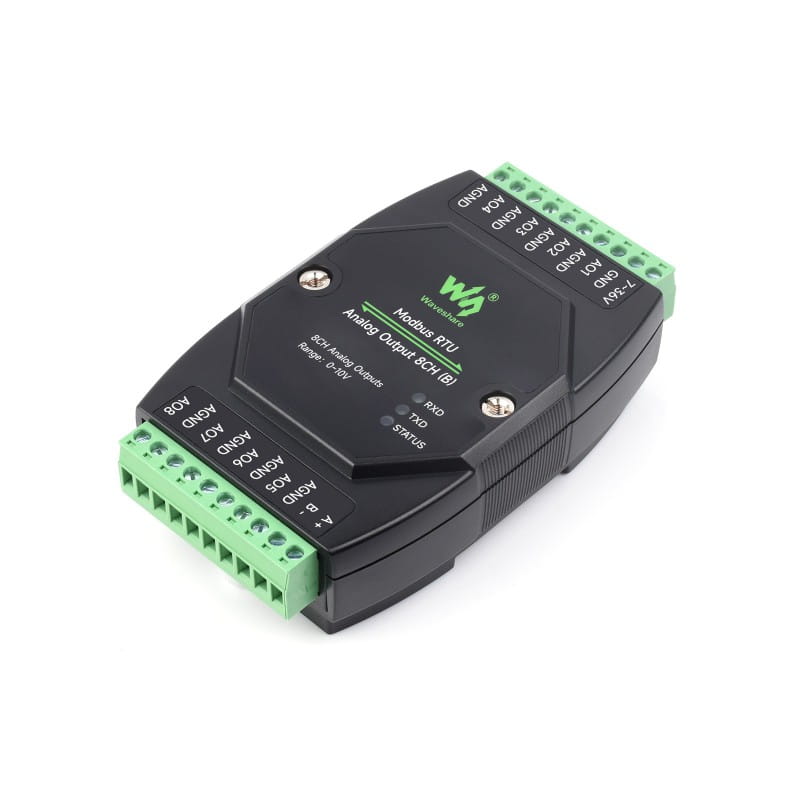

Eight-channel Modbus RTU - 0-10V Voltage Output
Modbus RTU Analog Output 8CH (B) is an innovative analog output module designed for industrial applications, offering eight-channel simultaneous voltage output functionality. This device features the use of the Modbus RTU protocol and advanced protective circuits, including power isolation, magnetic isolation, resettable fuse, and TVS (Transil diode for surge suppression), ensuring exceptional reliability and immunity to interference. With support for a wide range of power voltages 7~36V and comprehensive isolation, the module provides safe and stable operation. The 12-bit DA conversion technology and the use of high-precision electronic components ensure unparalleled accuracy of the output data.
Specification:
- Communication Interface: RS485
- Transmission Speed: 4800 to 256000, default 9600, N, 8, 1
- Protocol: Standard Modbus RTU
- Power Supply: DC 7~36V
- Output: 8-channel voltage output
- Resolution: 12-bit, 1mV
- Range: 0~10V
- Output Accuracy: ±0.03mA
Features:
- Support for Modbus RTU protocol commands via RS485 and output data to 0~10V sensor.
- Built-in power and RS485 signal isolation, providing stable insulation voltage, high reliability, and interference resistance.
- Integrated TVS, resettable fuse, and protective diode, providing protection against surges, transient surges, overload, and voltage transients, suitable for industrial environments with high requirements.
Supports sending Modbus RTU protocol commands via RS485
Industrial-grade isolated protection:
- Voltage regulator
- Power isolation
- Magnetic isolation
- TVS
- Fuses
- Operational amplifier
- EDS protection
High-precision analog output:
Connection diagram:
Wide voltage power supply and isolated RS485 interface for easy integration and reliable operation:

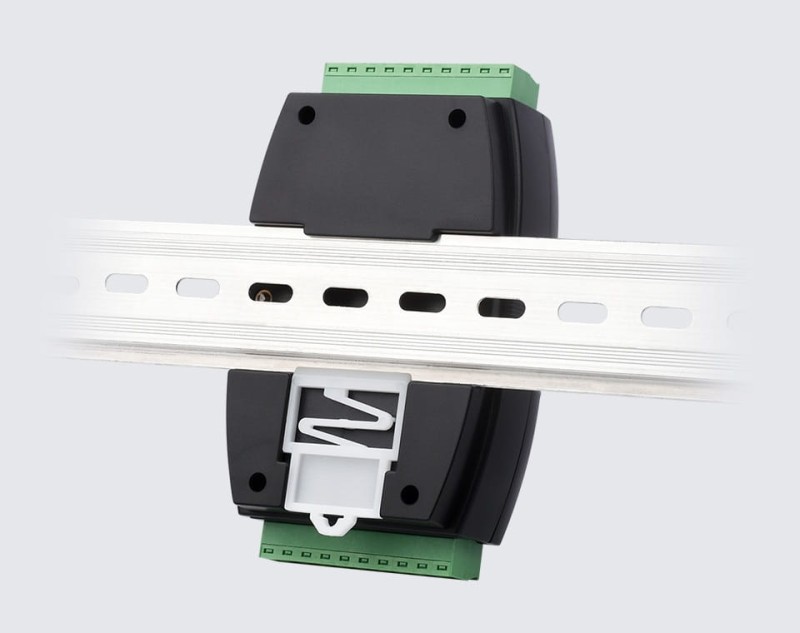

DIN rail mounting capability:
Stacking capability:

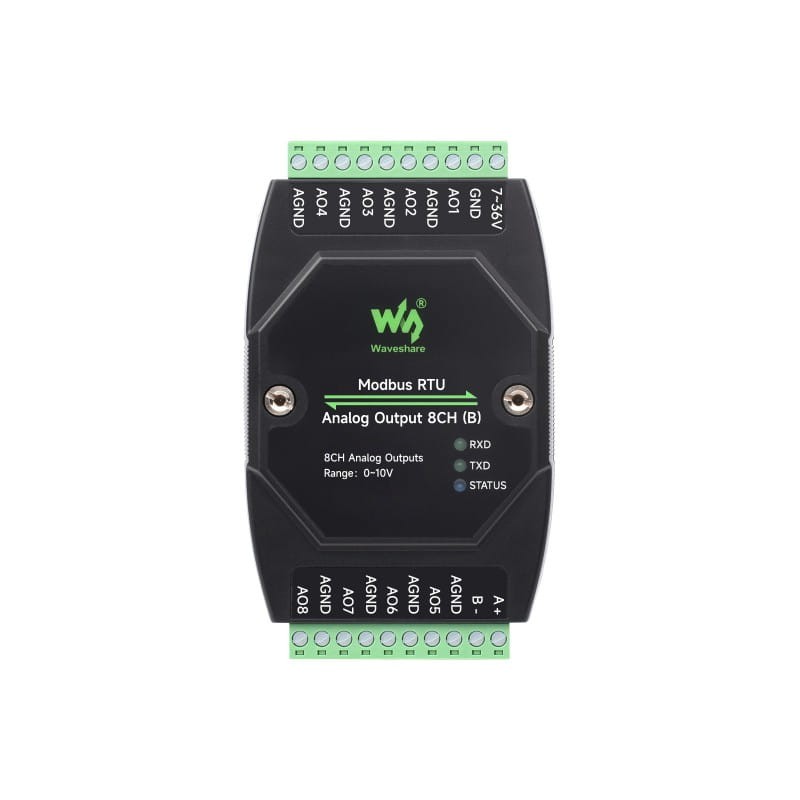

Presentation:
Dimensions:
Package includes:
- Eight-channel Modbus RTU - 0-10V Voltage Output ×1
- Power terminal adapter ×1
- Screwdriver ×1
Wiki: Modbus_RTU_Analog_Output_8CH(B)"
