External antenna 433 MHz with magnetic base, 3 m cable and SMA female connector
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

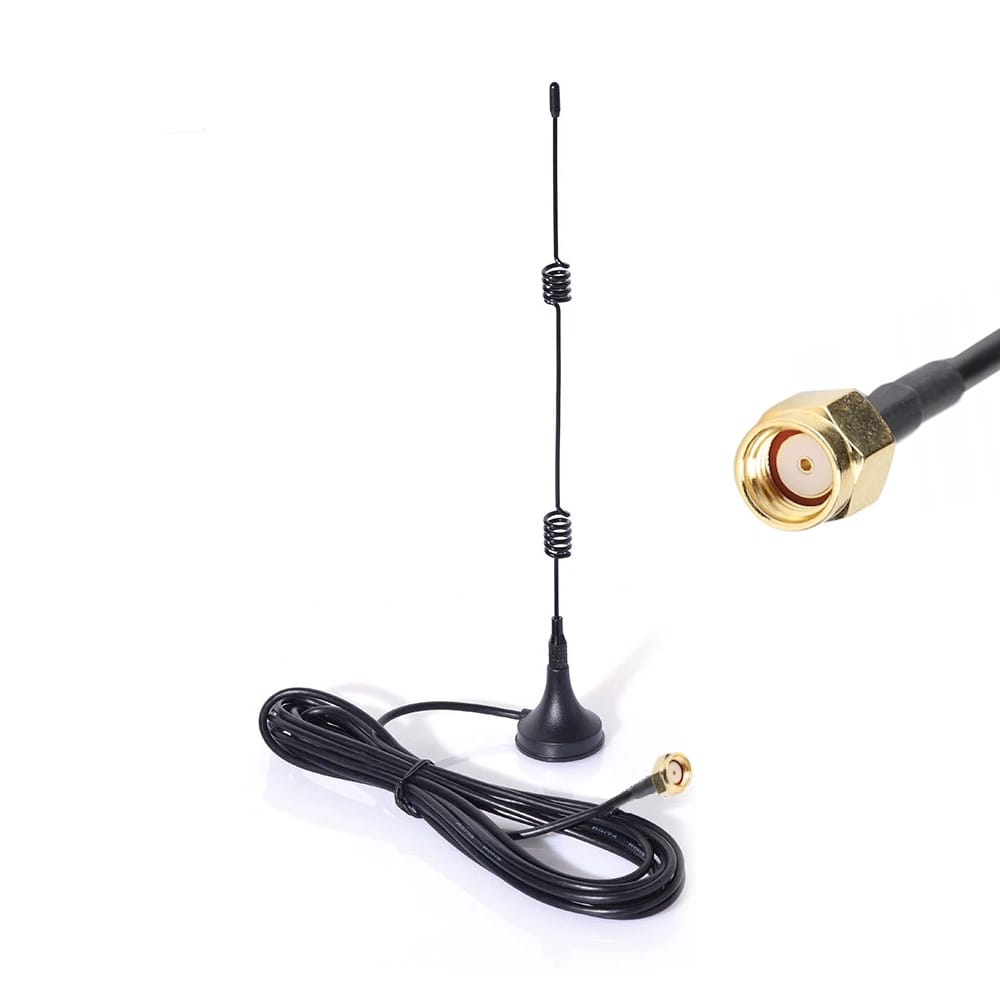

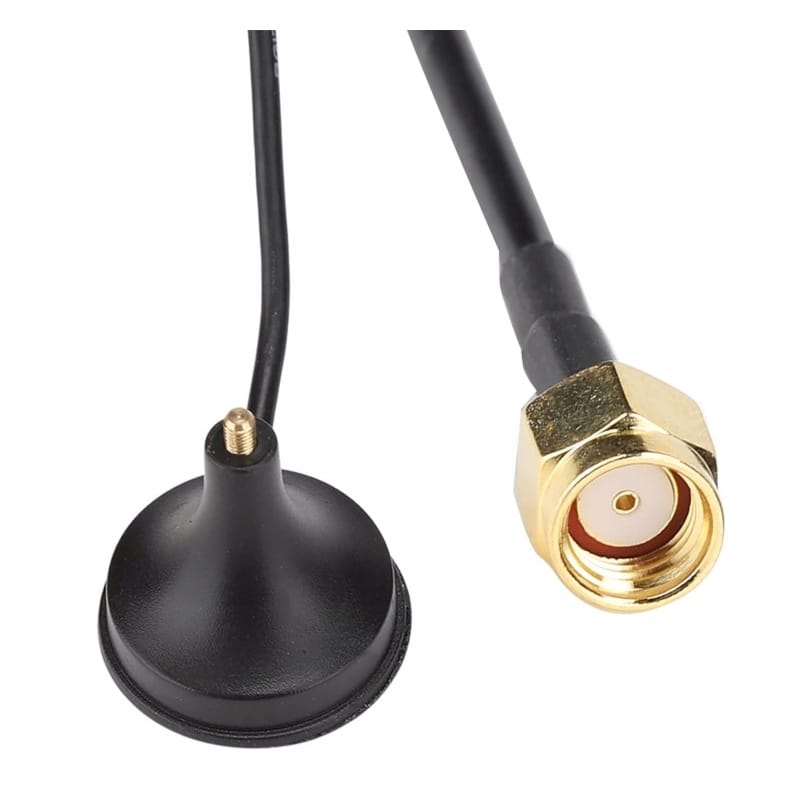

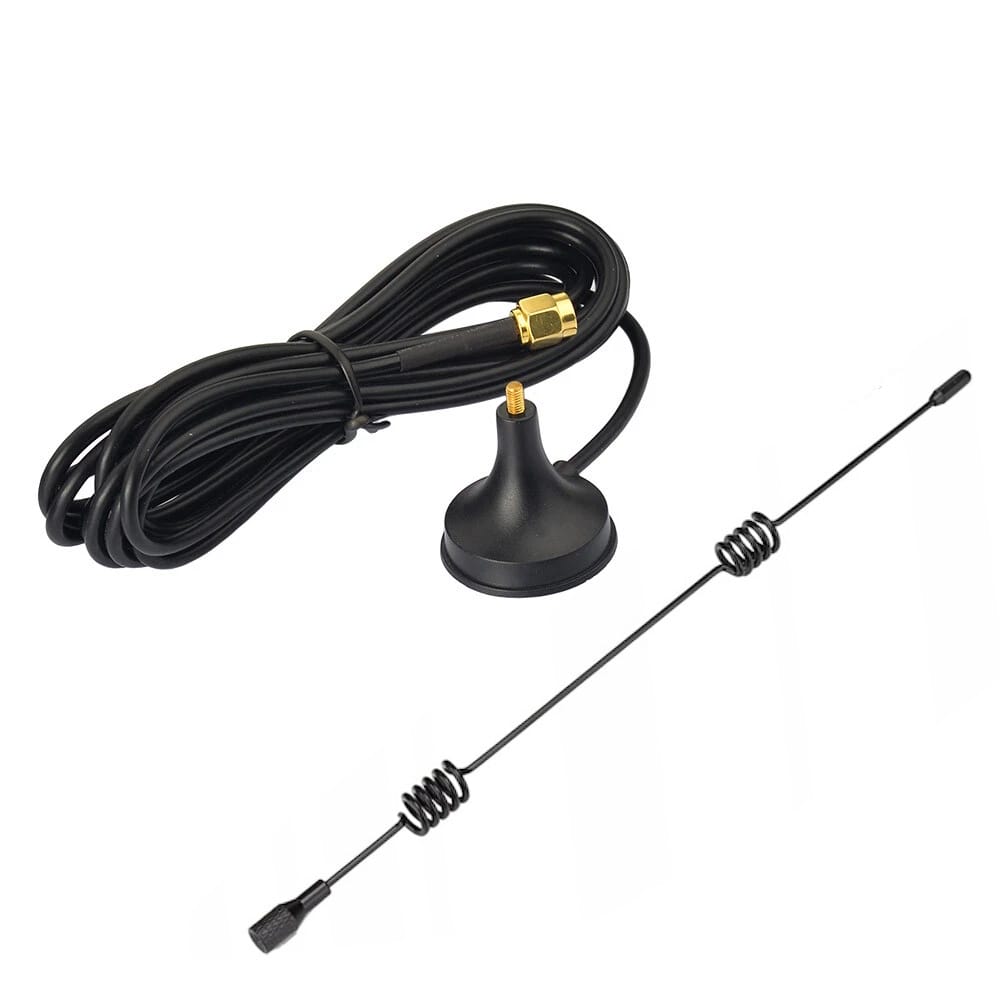

External antenna 433 MHz with magnetic base and cable 3 m
External antenna designed for devices operating in the 433 MHz band. Equipped with a 3 m long cable, an SMA female connector, and a magnetic base for easy mounting on metal surfaces.
Key features:
- Operating frequency: 433 MHz.
- Antenna whip length: 195 mm.
- Total length: 220 mm.
- Cable length: 3 m.
- Magnetic base diameter: 30 mm.
- SMA female connector.
- Magnetic mounting base.
- Can be mounted on metal surfaces.
Application
The antenna can be used with radio devices and systems operating at the 433 MHz frequency. The magnetic base allows for quick positioning of the antenna on a metal enclosure, control cabinet, or other suitable surface.
Installation and connection
The magnetic base allows the antenna to be mounted without drilling holes or using additional brackets. The 3 m long cable makes it easy to place the antenna in a convenient location and connect it to a device equipped with the appropriate connector.
Technical specification
- Product type: external antenna.
- Operating frequency: 433 MHz.
- Mounting type: magnetic.
- Connector type: SMA female.
- Antenna whip length: 195 mm.
- Total length: 220 mm.
- Cable length: 3 m.
- Magnetic base diameter: 30 mm.
Package contents
- Antenna 433 MHz with magnetic base and cable 3 m – 1 pcs.
