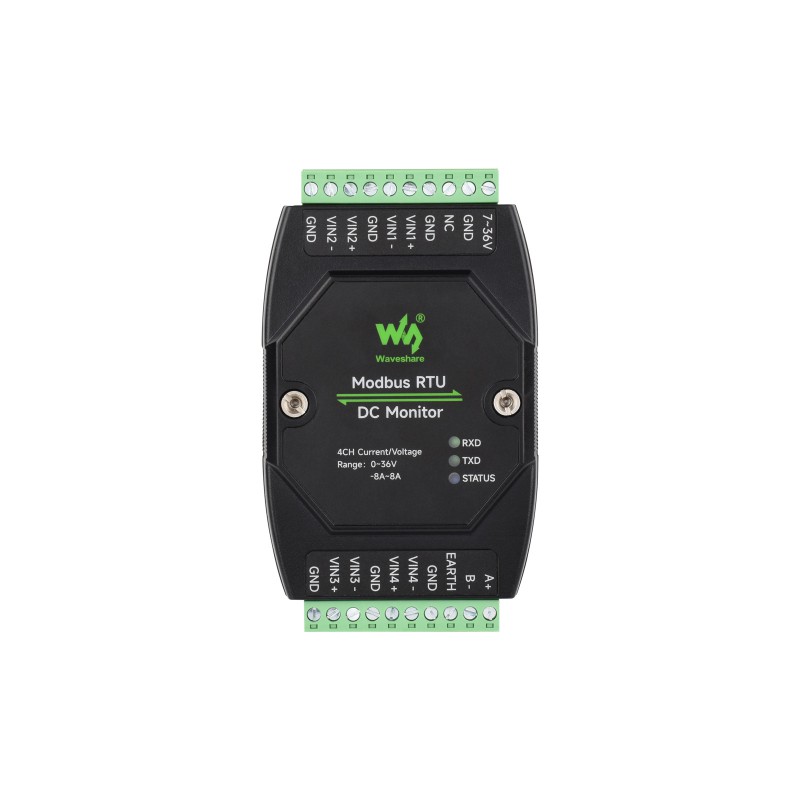

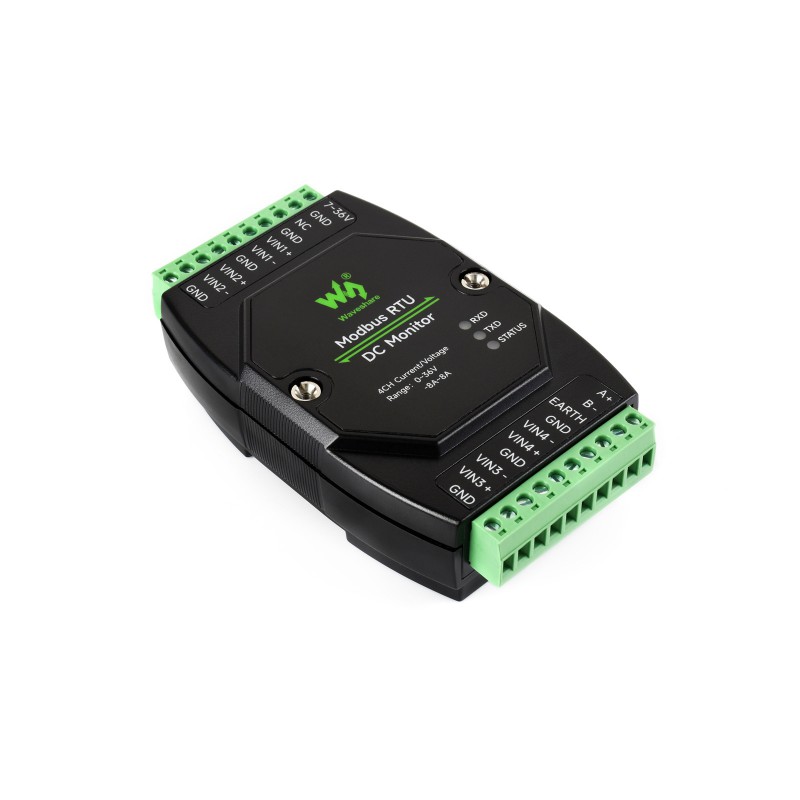

Industrial DC power monitoring module 4-channel Modbus RTU RS485
Industrial module for 4-channel DC power parameter monitoring. The device communicates via an RS485 interface and the Modbus RTU protocol, enabling precise measurement of voltage, current, and power. It features advanced protections, including galvanic power isolation, optocoupler isolation, and TVS diodes, making it a reliable and safe solution for demanding industrial environments.
Key features:
- 4-channel, independent measurement of voltage (up to 36 V), current (up to ±8 A), and power.
- High measurement precision (16-bit) thanks to a 0.002 Ω shunt resistor with 1% tolerance.
- Communication via isolated RS485 interface (Modbus RTU protocol) with support for device cascading.
- Configurable hardware address in the range of 1~255.
- Wide supply voltage range from 7 V to 36 V DC.
- Integrated power and signal isolation (optocoupler).
- Hardware protections: resettable fuse, TVS diodes, surge and discharge protection.
- Enclosure adapted for standard DIN rail mounting (35 mm).
Operating principle and interfaces
The module supports sending Modbus RTU commands via the RS485 bus to collect measurement data. It is equipped with 3 built-in LEDs to facilitate instant monitoring of the microcontroller status as well as signal transmission and reception status.
The device can measure current and voltage on four independent channels: (IN1+ IN1-), (IN2+ IN2-), (IN3+ IN3-), and (IN4+ IN4-). Current measurements are bidirectional (inputs and outputs can also be reversed) and are based on reading the potential difference across a built-in resistor connected in series between INx+ and INx-.
Important note: When measuring signals from different power sources, it is absolutely required to connect a common ground (GND). Otherwise, bus voltage measurement will not be possible, and the system will only measure the differential voltage and current.
Convenient DIN rail mounting
A robust enclosure with a rail-mount clip allows for quick and secure installation on a standard 35 mm DIN rail. This design facilitates the implementation of the device in professional control cabinets and industrial automation, while also providing the ability to easily connect additional modules.

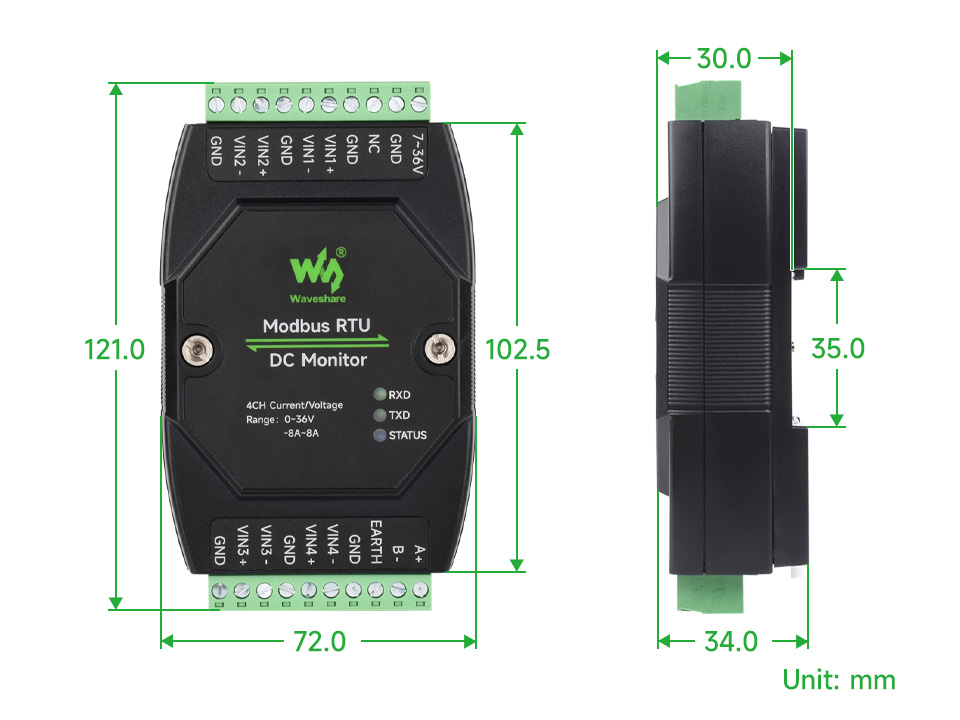

Dimensions
Technical specification
- Communication interface: RS485
- Protocol: Standard Modbus RTU
- Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 bps
- Default communication format: 9600, N, 8, 1
- Supply voltage: DC 7 ~ 36 V
- Current measurement resistor (shunt): 0.002 Ω, tolerance 1%
- Voltage measurement range: 0 ~ 36 V
- Current measurement range: ±8 A
- Measurement resolution: 0.8 mA
Kit contents
- Modbus RTU DC Monitor module - 1 pc.
- Power terminal adapter - 1 pc.
- Screwdriver - 1 pc.
