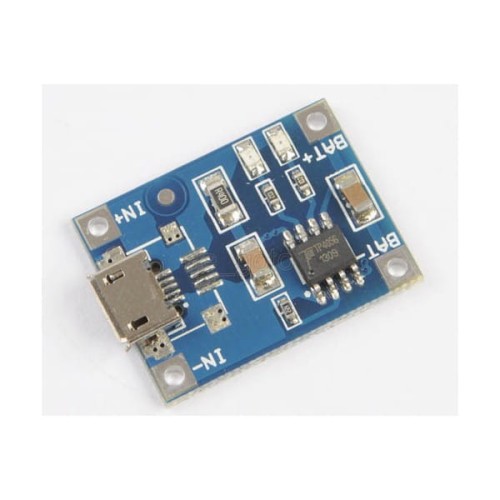

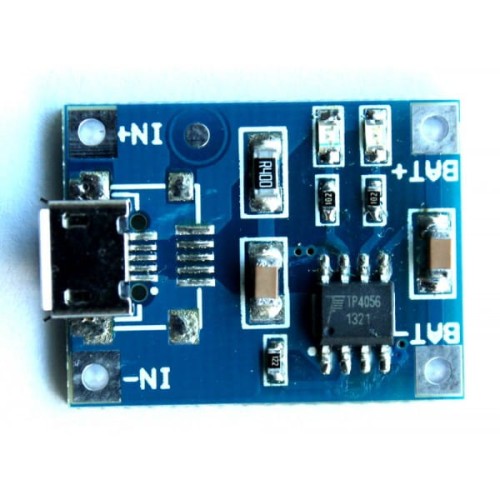

LITHIUM BATTERY CHARGING MODULE

Availability: brak towaru
Price: €0.48 0.48
Net price: €0.39
quantity szt.

product unavailable

add to wish list
Pin It

Description

DETAILS

Overview

The module is used for charging of single lithium battery or multiple lithium batteries in parallel, and the charging port can take power from the USB port.



Specifications

  • Charging mode: linear charging 1%
  • Charging current: 1A Adjustable
  • Charge accuracy: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charging voltage: 4.2V
  • Charging indicator: red for charging, green for full
  • Input interface: mini USB
  • Working temperature: -10 ℃ to +85 ℃
  • Reversible: no
  • Weight: 10g
  • External dimension: 25 * 19 * 10mm

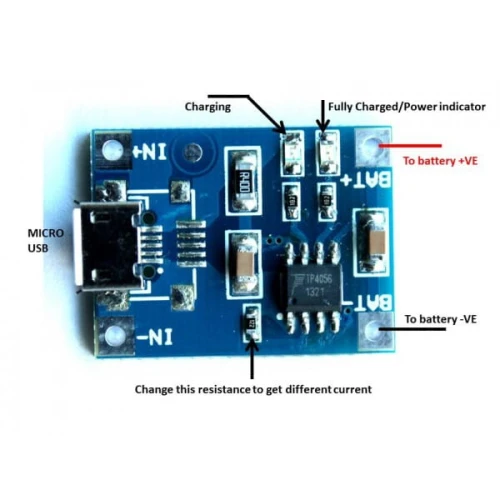

Charging current regulating

The charging current can be regulated by adjusting resistance value of RPROG.



Specification

Module Type No
Weight 8.00g
Model IM130710003
Board Size 25 × 19 × 10mm
Version 1.0
Operation Level Digital 5V
Power Supply
  • External 5V
  • USB 5V



Download
