Moes Star Ring ZS-SR-EUC ZigBee 3.0 RF433MHz Tuya Smart Life roller shutter controller
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

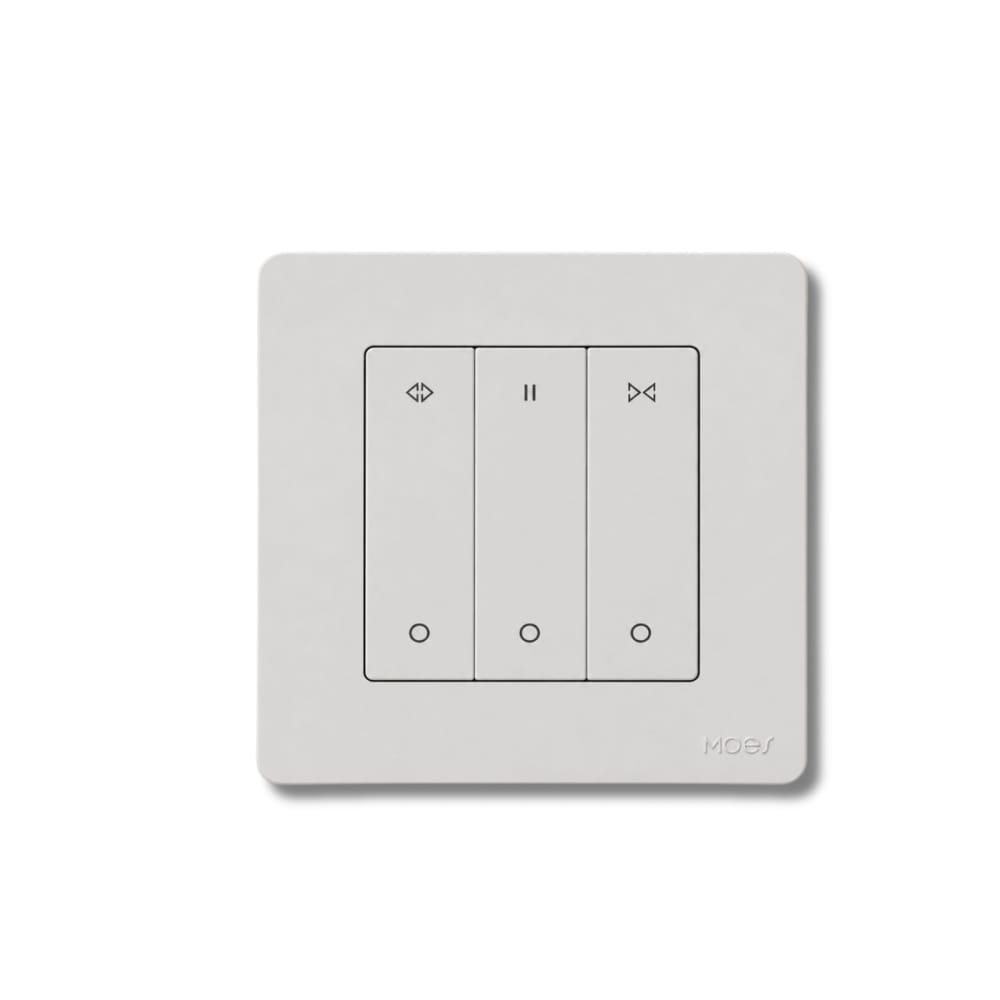

Moes Star Ring ZS-SR-EUC ZigBee 3.0 + RF433MHz roller shutter controller
Smart roller shutter controller MOES ZS-SR-EUC from the Star Ring series allows you to control electric roller shutters, curtains, and blinds from the Tuya / Smart Life app, RF433MHz remote controls, and voice assistants. The device communicates via ZigBee 3.0, supports percentage control, and is compatible with Zigbee2MQTT.
Key features:
- Series: Moes Star Ring.
- Communication: ZigBee 3.0 and RF433MHz.
- Percentage control: precise control of the roller shutter opening level from the app.
- Schedules: possibility to automatically open and close roller shutters at a specific time.
- Voice assistants: support for Amazon Alexa and Google Home.
- Compatibility: Tuya, Smart Life, and Zigbee2MQTT.
- Remote control support: local control via dedicated RF433MHz remote controls.
- Roller shutter motors: compatible with most wired roller shutter and curtain motors.
- Design: elegant panel with characteristic Star Ring backlighting.

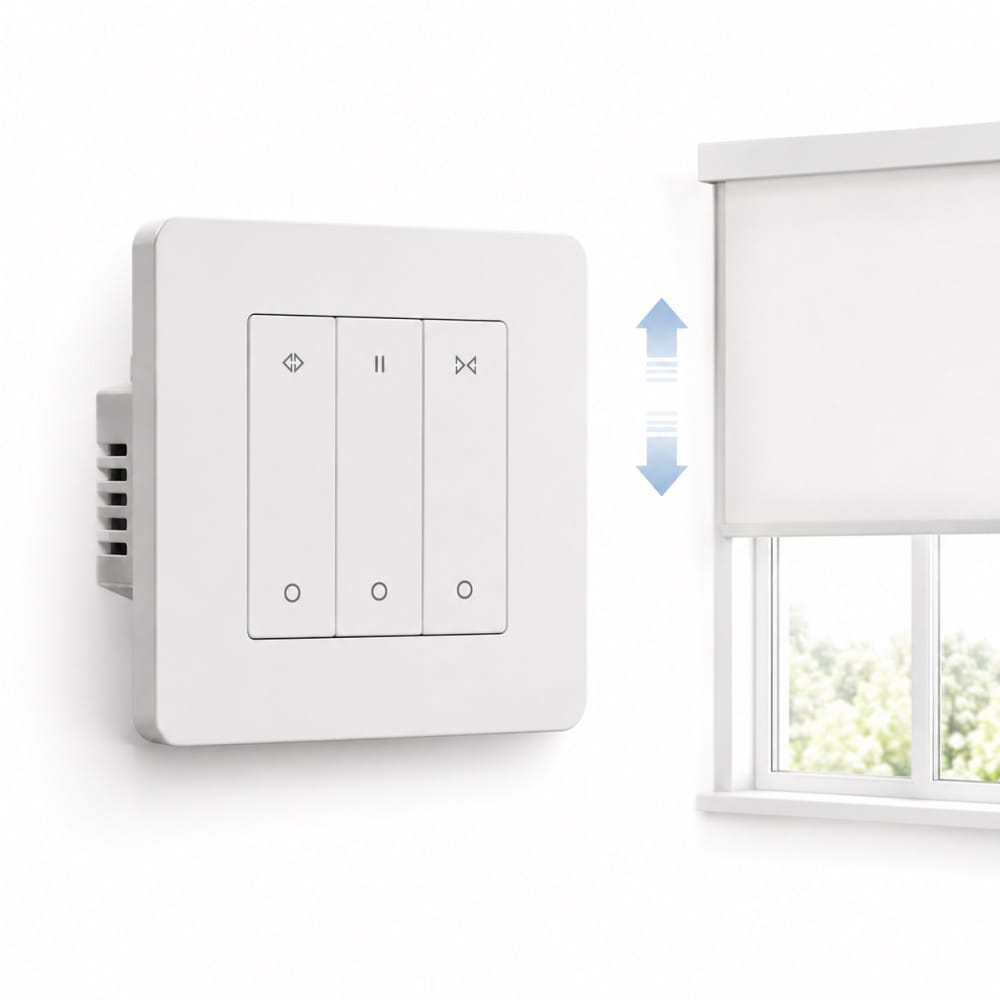

Roller shutter controller from the Moes Star Ring series
ZS-SR-EUC belongs to the Moes Star Ring series, which consists of modern smart home switches with a uniform design and a characteristic ring-shaped backlight. The controller can be aesthetically combined with other modules from the same series, creating a cohesive set for controlling roller shutters, lighting, and home automation.
Requirements and system integration
The module uses the ZigBee network for communication, so a compatible gateway is required for its proper operation. The recommended device is ZigBee 3.0 Tuya Smart Life Gateway. The switch is also compatible with the Zigbee2MQTT project, which facilitates its implementation in Home Assistant, among others.
Control via RF433MHz radio remotes
Thanks to the built-in RF receiver, the module can be controlled without using a phone. This solution is perfect for daily roller shutter operation when quick local control from a radio remote is needed.
Frames for Moes Star Ring switches
The Moes Star Ring roller shutter controller can be mounted next to other switches from the same series. Dedicated multi-gang frames allow you to combine several modules into one elegant unit, useful for controlling roller shutters, lighting, or other smart home elements.
- Double frame: Double frame for Moes Star Ring switches
- Frame for 3 switches: Frame for 3 Moes Star Ring switches
- Frame for 4 switches: Frame for 4 Moes Star Ring switches
Module dimensions
Technical specification
- Model: ZS-SR-EUC.
- Series: Moes Star Ring.
- Device type: roller shutter controller / electric curtain switch.
- Supply voltage: 90-250 V AC, 50/60 Hz.
- Maximum load: 3 A / 600 W.
- Standby power consumption: 0.5 W.
- Wireless protocol: ZigBee 3.0 + RF433MHz.
- Supported apps: Tuya / Smart Life.
- Supported systems: Android / iOS.
- Backlight: white.
Package contents
- Moes ZS-SR-EUC roller shutter switch x1.
- Mounting screws x2.
- Multilingual user manual x1.
