NCH6100HV Nixie Power Supply
Description

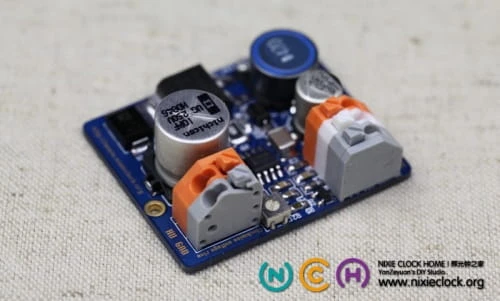

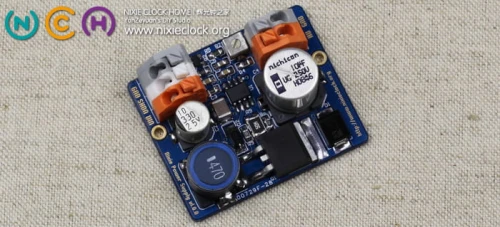

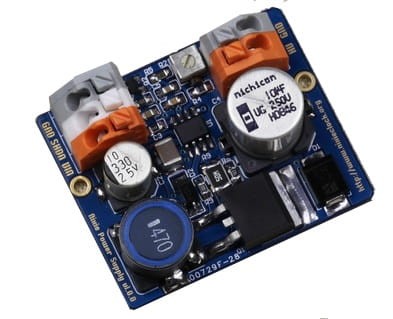

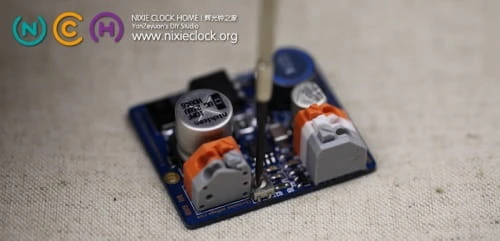

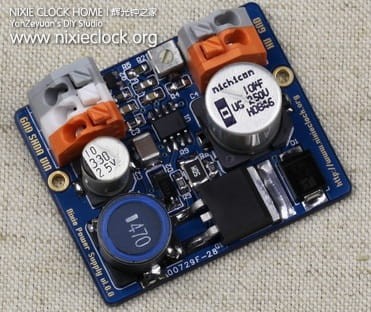

NCH6100HV high voltage power supply module is miniature step-up DC-DC converter with high efficiency and low heat operating from 12 to 24VDC input, with an output of 85 to 235VDC set by a precise potentiometer. Designed for Nixie tube, VFD tube, Magic eye etc. Shutdown mode are controlled via SHDN logic input. PCB terminals and pin headers are optional.

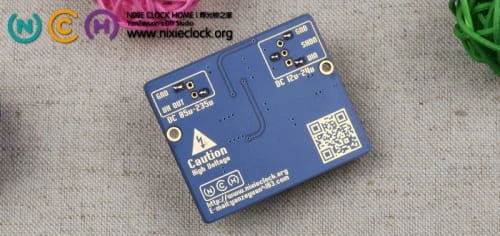

Gold Plating PCB
Fully assembled (All SMD parts soldered by SMT robot)
