ST-LINK/V2 (mini)

Programator, odpowiednik ST-LINK/V2, ta sama wersja programatora stosowana jest w płytkach z serii nucleo.

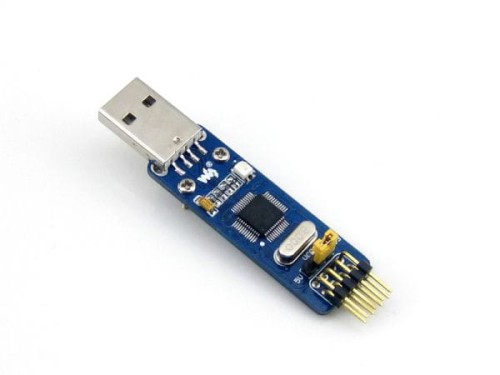

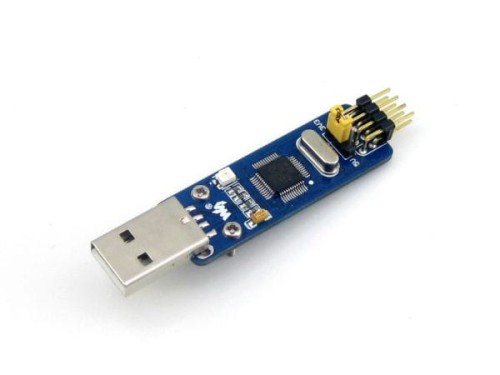

Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.

Features

• Onboard 500mA self-recovery fuse to avoid harming by short circuit
• Dual voltage output (3.3V/5V), easy for debugging/programming
• Standard USB interface for direct connection to PC
• Debugging/Programing performance
  • Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.
  • Programming : supports FLASH ROM, EEPROM, AFR, etc.
  • USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming
• Upgradable firmware
  • The firmware is upgradable to support more devices in the future
  • Automatically upgraded
• Supported software
  • ST-LINK Utility v2.0 (or higher ver.)
  • STVD Version 4.2.1 (or higher ver.)
  • STVP Version 3.2.3 (or higher ver.)
  • IAR EWARM Revision v6.20 (or higher ver.)
  • IAR EWSTM8 Revision v1.30 (or higher ver.)
  • KEIL RVMDK Revision v4.21 (or higher ver.)
  • ATOLLIC
  • TASKING
• Supported devices
  • All the STM8 devices with SWIM interface
  • All the STM32 devices with SWD interface

ST-LINK/V2 (mini) Vs ST-LINK/V2 Vs ST-LINK

Connecting with PC

While connecting the ST-LINK/V2 (mini) to the computer through USB interface, the USB driver is required and should be installed correctly first.

Click on the link to download : ST-LINK/V2 USB driver for Windows 7, Vista and XP

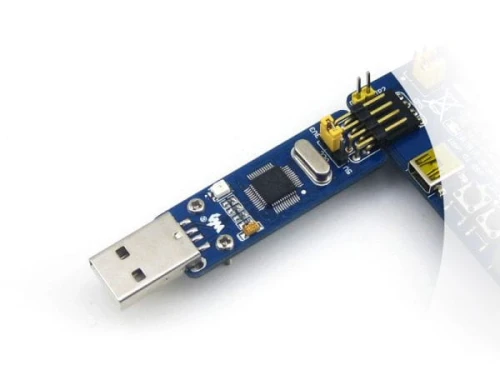

Connection with STM8/STM32 applications

The ST-LINK/V2 (mini) should be connected to the STM8 application via the SWIM interface.

The ST-LINK/V2 (mini) should be connected to the STM32 application via the SWD interface.

Please note that the VCC and GND should be connected correctly to avoid any harm to the ST-LINK/V2 (mini).

Package Contains

1. ST-LINK/V2 (mini) × 1
2. 4-pin  custom connector cable × 1
