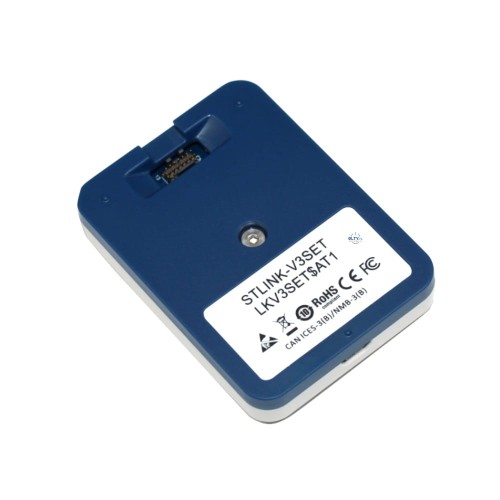

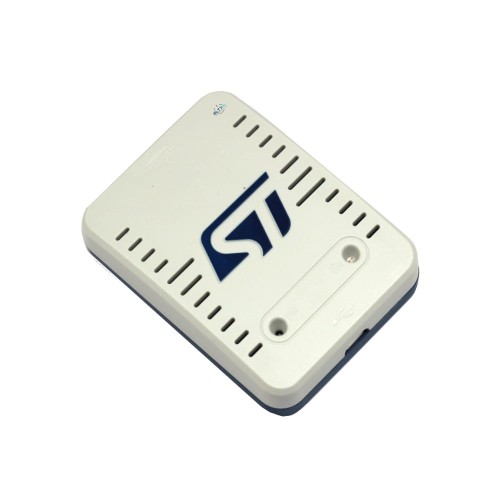

ST-LINK/V3 programator/debugger dla STM32 STM8

Price: €47.64
incl. 23% TAX, excl. shipping costs
47.64
quantity szt.

product unavailable

Product code: STLINK-V3SET

Description

STLINK-V3SET modułowy debugger oraz programator dla mikrokontrolerów z serii STM8 oraz STM32. STLINK-V3 umożliwia programowanie i debugowanie za pomocą  interfejsów SWIM oraz JTAG/SWD.

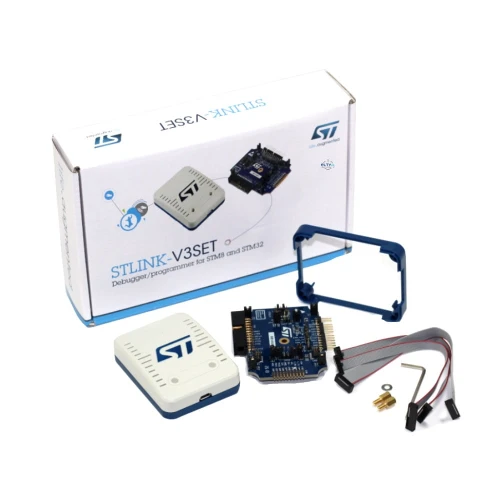

Zestaw zawiera programator oraz moduł adaptera.

STLINK-V3SET umożliwia również komunikacje za pomocą wirtualnego portu COM, interfejsów SPI, I2C oraz GPIO.

Specyfikacja:

  • Stand-alone probe with modular extensions
  • Self-powered through a USB connector (Micro-B)
  • USB 2.0 high-speed compatible interface
  • Direct firmware update support (DFU)
  • JTAG / serial wire debugging (SWD) specific features:
    • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
    • Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch)
    • JTAG communication support
    • SWD and serial wire viewer (SWV) communication support

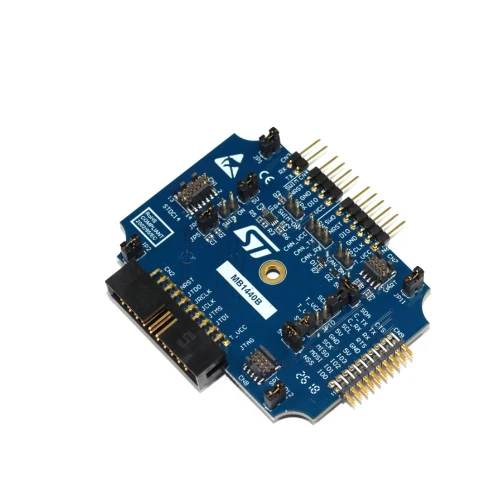

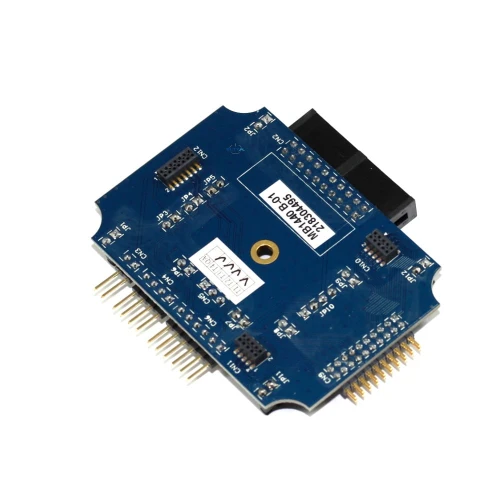

  • SWIM specific features (only available with adapter board MB1440):
    • 1.65 V to 5.5 V application voltage support
    • SWIM header (2.54 mm pitch)
    • SWIM low-speed and high-speed modes support
  • Virtual COM port (VCP) specific features:
    • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
    • VCP frequency up to 15 MHz
    • Available on STDC14 debug connector (not available on MIPI10)
  • Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
    • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
    • Signals available on adapter board only (MB1440)
  • Drag-and-drop Flash programming
  • Two color LEDs: communication, power

Dodatkowe informacje dostępne są na stronie producenta:

https://www.st.com/en/development-tools/stlink-v3set.html
