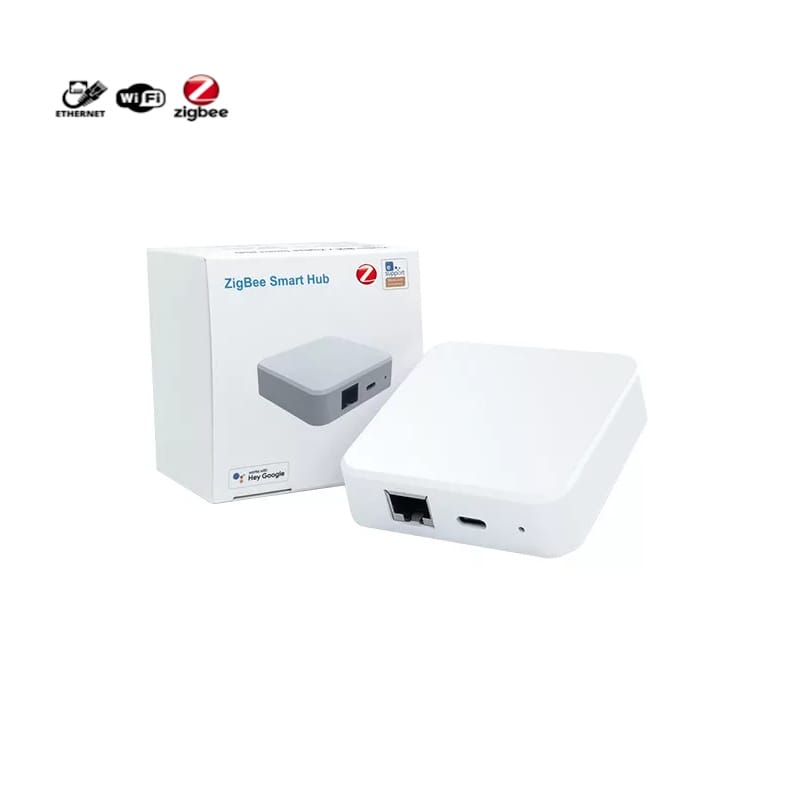

Sonoff ZigBee Bridge Pro LAN – ZigBee gateway 3.0 Ethernet RJ45
The Sonoff ZigBee Bridge Pro LAN is a gateway that integrates ZigBee 3.0 devices with the eWeLink app and the manufacturer's cloud. It connects to the local network via a wired Ethernet RJ45 port, supports up to 120 ZigBee devices, and provides a range of up to 200 m in open space.
Key features:
- Wired network connection via Ethernet RJ45 port.
- Support for ZigBee 3.0 protocol.
- Support for up to 120 ZigBee devices.
- Support for Mesh topology to extend ZigBee network range.
- Quick device pairing with a single button.
- Device grouping and control from the app's home screen.
- Push notifications from compatible ZigBee sensors.
- Power supply via USB-C port 5 V / 1 A.
Stable Ethernet connection
The gateway communicates with the local network via a wired Ethernet connection. The RJ45 port ensures a stable connection to the router without the need for a wireless connection between the gateway and the home network.
ZigBee system hub 3.0
The Sonoff ZigBee Bridge Pro LAN acts as a bridge between ZigBee sensors, switches, relays, and sockets and the eWeLink app. It enables remote control, device status monitoring, and the creation of automations involving both ZigBee devices and compatible Wi-Fi devices.
- Support for motion, door/window opening, temperature, humidity, and water leak sensors.
- Support for ZigBee switches, relays, and smart sockets.
- Creation of scenes dependent on sensor status.
- Remote control via the eWeLink app.
- Connecting ZigBee devices with Sonoff devices.
Voice control
After configuring the system in the eWeLink app, compatible devices can be controlled using Amazon Alexa or Google Home. Voice commands allow you to trigger devices and scenes without using a smartphone.
Automations and notifications
The gateway allows you to create scenes that react to events detected by ZigBee sensors. Motion detection, door opening, or changes in environmental parameters can trigger another device, activate a scene, or send a push notification to your phone.
Support for up to 120 ZigBee devices
The efficient dual-core ESP32 240 MHz processor allows for handling up to 120 sub-devices. The gateway can work with ZigBee sensors, switches, relays, and sockets in a home, office, or small commercial facility.
Range up to 200 m and Mesh network
ZigBee communication range can be up to 200 m in open space. In buildings, it depends on the type of walls, interference, and device placement. Mains-powered ZigBee devices can act as Mesh routers and relay the signal further.
- Support for ZigBee Mesh topology.
- Range extension via compatible mains-powered devices.
- Possibility to use devices such as Sonoff ZBMini or Basic ZBR3 as Mesh network elements.
- Greater communication stability in extensive installations.
Compatibility with ZigBee devices
The gateway works with a wide range of Sonoff ZigBee devices.
- ZigBee motion sensors.
- Door and window opening sensors.
- Temperature and humidity sensors.
- Water leak sensors.
- Wireless buttons and switches.
- ZigBee relays and in-wall modules.
- Smart sockets and devices acting as Mesh routers.
- Selected devices from other manufacturers certified by the ZigBee Alliance.
Technical specification
- Device type: ZigBee LAN gateway.
- Sub-device protocol: ZigBee 3.0.
- Network connection: Ethernet LAN.
- Network connector: RJ45.
- Processor: ESP32 Dual Core 240 MHz.
- App: eWeLink.
- Maximum number of ZigBee devices: 120.
- Maximum ZigBee range: up to 200 m in open space.
- Network topology: ZigBee Mesh.
- Power supply: USB-C 5 V / 1 A.
- Power adapter: not included in the set.
- Voice control: Amazon Alexa and Google Home.

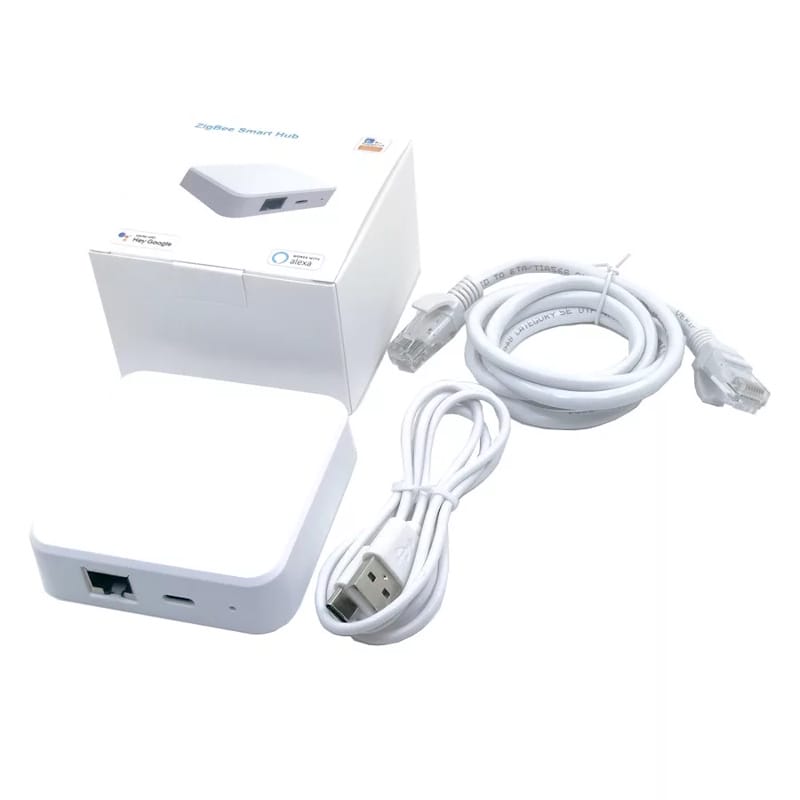

Set contents
- Sonoff ZigBee Bridge Pro LAN – 1 pc.
- User manual – 1 pc.
Operation requires a USB 5V 1A power adapter, which is not included in the set.
