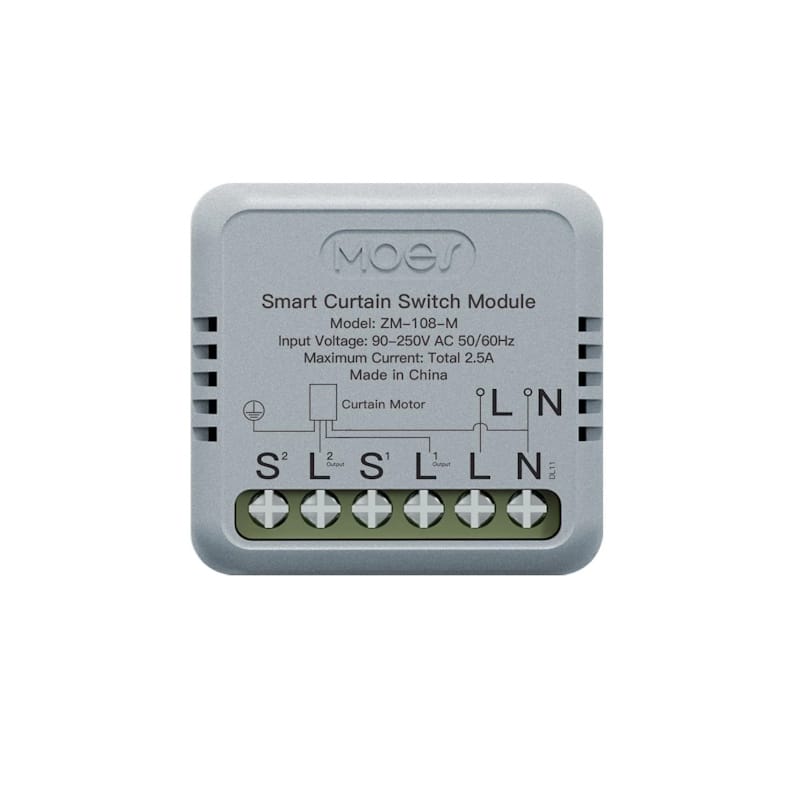

Zigbee Roller Shutter Controller 3.0 MOES ZM-108-M
Precise roller shutter control, compact size, and wide compatibility in one smart module. The device allows for the automation of window shutters, offering easy installation in standard electrical boxes and convenient, advanced management from your smartphone.
Key features:
- Precise percentage control: accurate setting of the shutter opening level for optimal sunlight.
- Compact design: hassle-free installation in standard installation boxes (e.g., European 60 mm).
- Schedules and automation: the ability to create opening and closing cycles that match your daily rhythm.
- Calibration of operation errors: precise shutter positioning increasing system reliability.
- Installation versatility: includes a practical bracket allowing for module installation on a DIN.
- rail. Works with the Tuya system when connected to a compatible Zigbee gateway.
Miniature but powerful
Thanks to its well-thought-out, compact design, the controller easily fits into most standard installation boxes. This makes it an ideal solution not only for new buildings but also for upgrading older electrical installations where mounting space is severely limited.
Precise light management
Control your shutters exactly as you need – set them to 30%, 70% or choose full opening. This is an excellent solution for smooth control of the amount of daylight entering your living room, office, or bedroom.
Compatibility with various types of wall switches

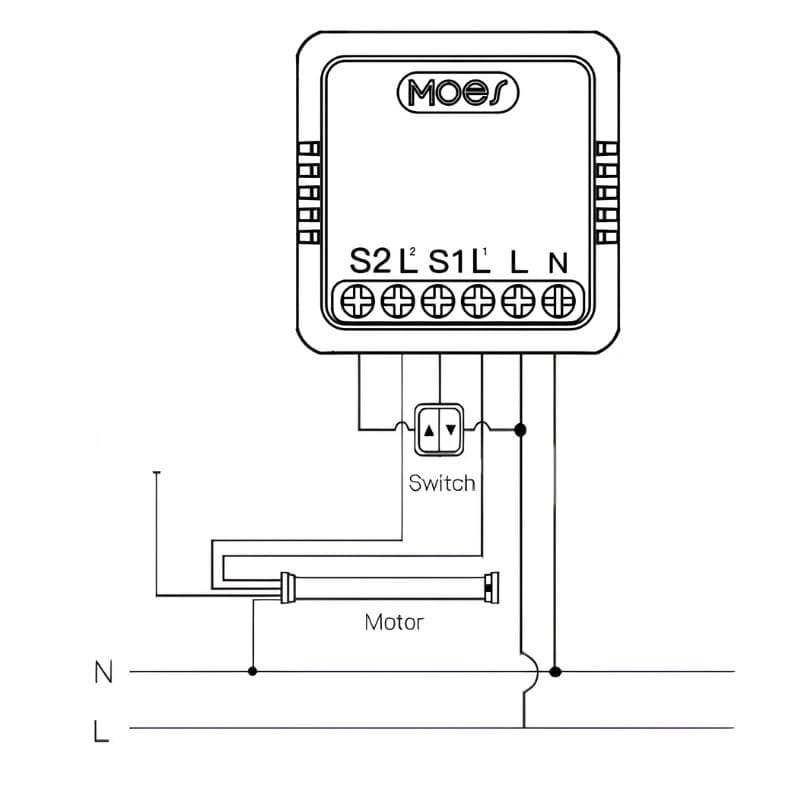

MOES ZM-108-M works with monostable, double, and three-position switches. This allows the module to be adapted to an existing installation.
Connection method
Zigbee communication 3.0
The controller communicates using the Zigbee 3.0 standard, so it does not connect directly to a WiFi router. For the module to work in the Tuya app, a compatible Tuya Zigbee gateway 3.0 is required, which acts as an intermediary between the roller shutter controller and the internet.
After pairing with a Zigbee gateway, the controller can be operated from the Tuya or Smart Life app. This enables remote shutter control, the creation of automation scenes, and cooperation with other smart home devices in the Zigbee ecosystem.
Technical specification
- Model: ZM-108-M
- Device type: Smart roller shutter controller
- Supply voltage: 90-250V AC 50/60Hz
- Maximum load current: 1.5 A
- Communication protocol: Zigbee 3.0
- Wireless frequency: 2.412-2.484GHz
- Operating range: up to 70 m
- Operating temperature: from -10°C to 65°C
- Ingress protection rating: IP20

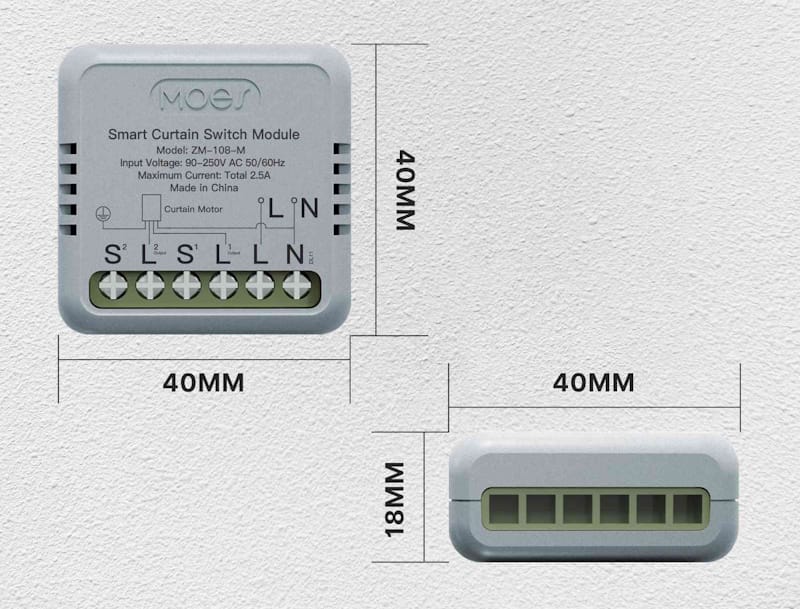

- Dimensions: 40 x 40 x 18 mm
Set contents
- Zigbee roller shutter controller ZM-108-M - 1 pcs.
- Bracket for DIN rail mounting - 1 pcs.
- User manual in Polish, English, and German - 1 pcs.
