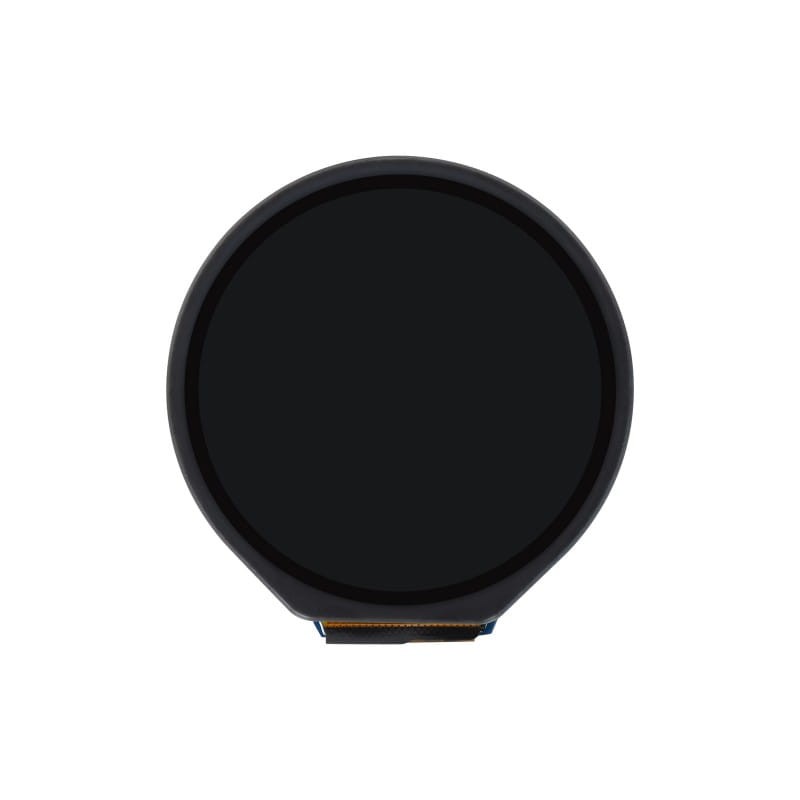

1.28" 240 x 240 IPS Round Capacitive LCD Display Panel for Raspberry Pi, Arduino, STM32

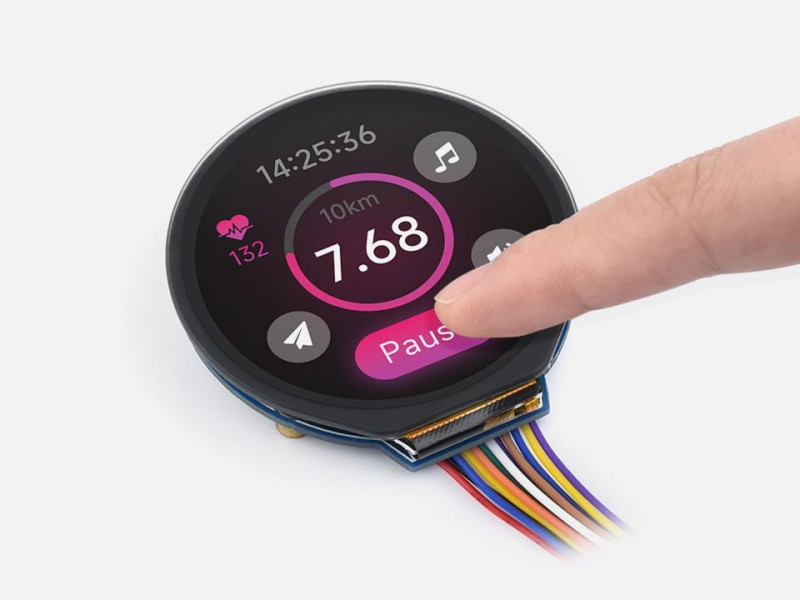

The 1.28-inch LCD display module with a touch panel is a compact and versatile solution for various projects such as a smartwatch. It utilizes an embedded GC9A01 driver and a CST816S capacitive touch control system, which ensures a clear and colorful image and quick touch response. Communication takes place via SPI and I2C interfaces, minimizing the number of required IO pins. The module is compatible with various control boards, such as Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, making it highly universal. Online programming resources and instructions are included with the module, which facilitates its integration and use.

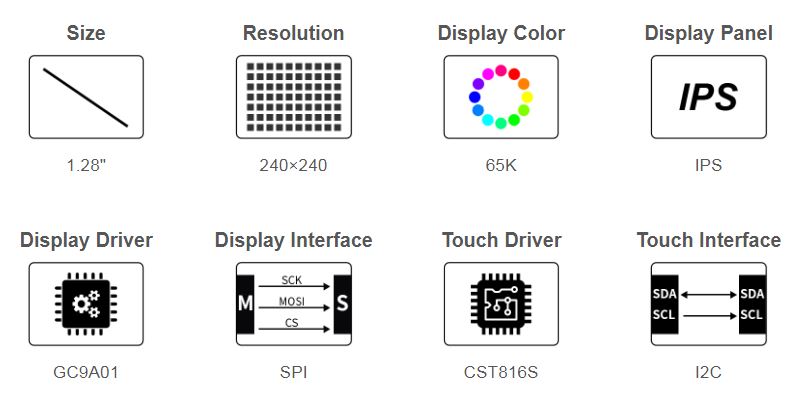

Specification:
- Size: 1.28"
- Resolution: 240 x 240
- Display colors: 65K
- Display panel: IPS
- Display driver: GC9A01
- Display interface: SPI
- Touch driver: CST816S
- Touch interface: I2C
- Operating voltage: 3.3V / 5V
- Touch type: capacitive
- Display size: Φ32.4mm
- Pixel size: 0.135 x 0.135 mm
- Module size: 39.89 x 38.50 x Φ38.50 mm
Product Features:
- High resolution and colorful image: 240x240 pixels, 65K colors guarantee a clear and colorful display effect.
- Quick touch response: Thanks to the high transmission touch screen and long life, it provides a quick response to touch.
- Built-in drivers: The module is equipped with a GC9A01 driver and a CST816S capacitive touch control system, ensuring smooth and efficient operation.
- Compatibility: The module works with control boards such as Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, making it extremely universal.
- Online resources: Online programming resources and instructions are included with the module, which facilitates its integration and use.

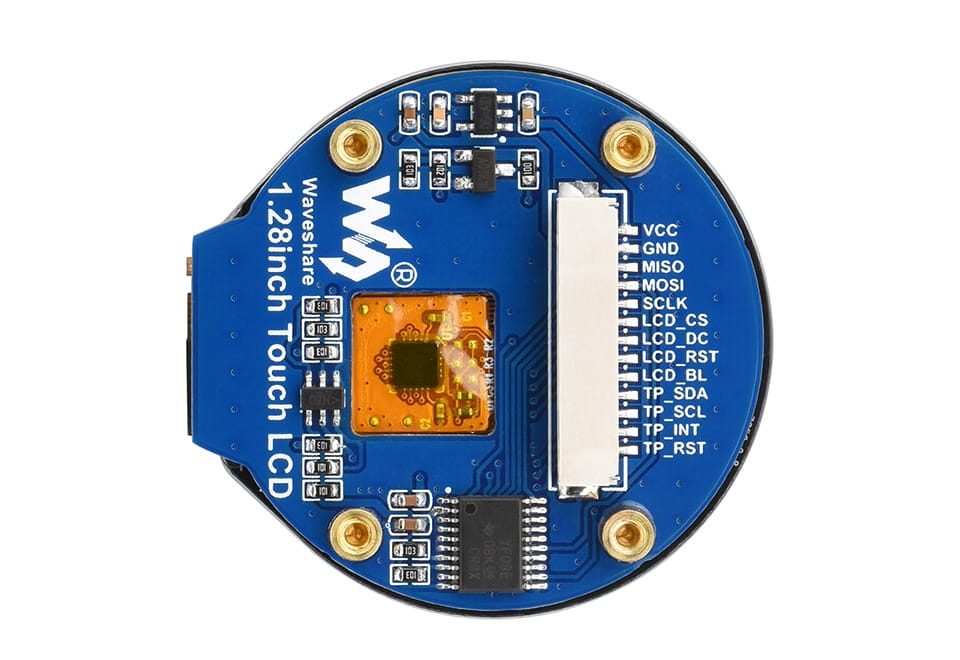

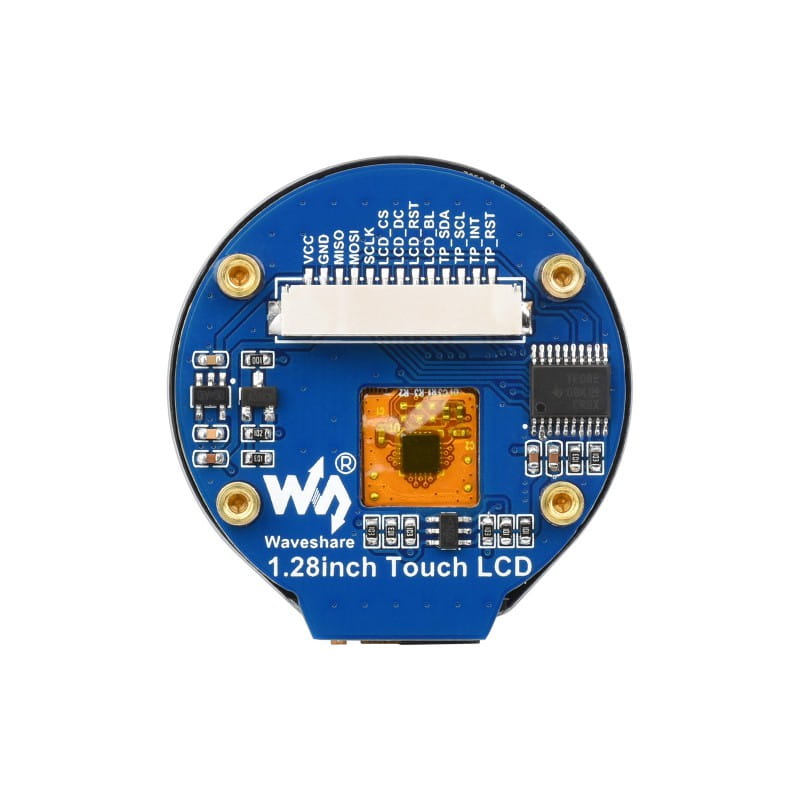

Control Interfaces :
- VCC Power Supply (3.3V / 5V input)
- GND Ground
- MISO SPI MISO pin
- MOSI SPI MOSI pin
- SCLK SPI Clock pin
- LCS_CS LCD Chip Select, low level active
- LCS_DC LCD Data/Command Select (high state for data, low for commands)
- LCS_RST LCD Reset, low level active
- LCS_BL LCD Backlight
- TP_SDA TP Data pin
- TP_SCL TP Clock contacts
- TP_INT TP Interrupt contacts
- TP_RST TP Reset, low state active
Touch Panel:

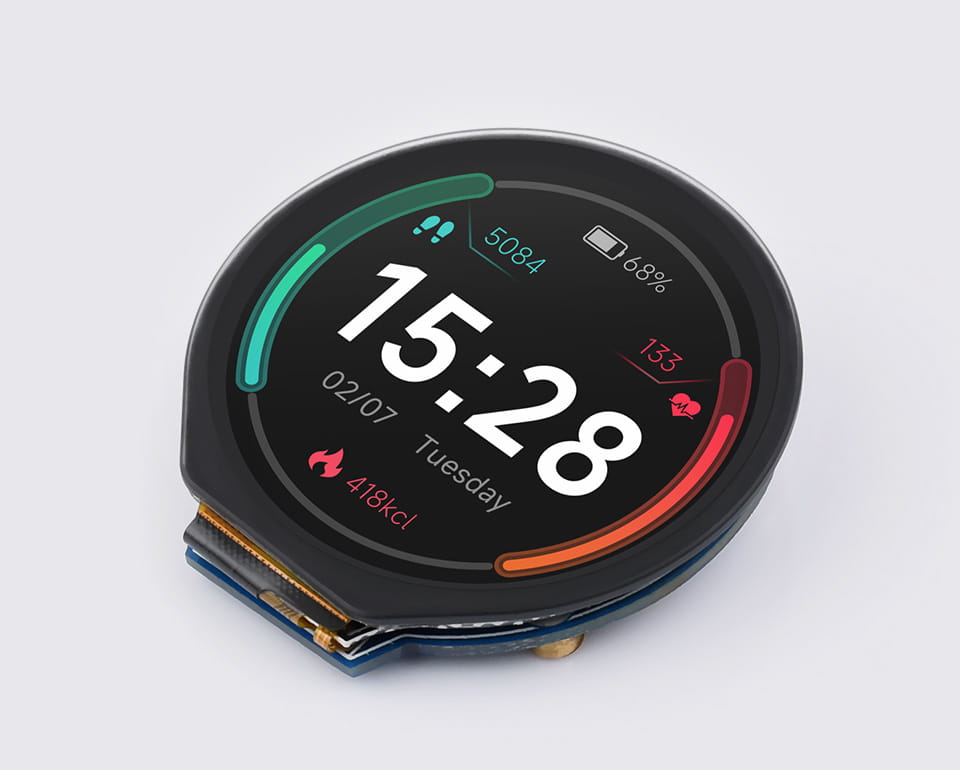

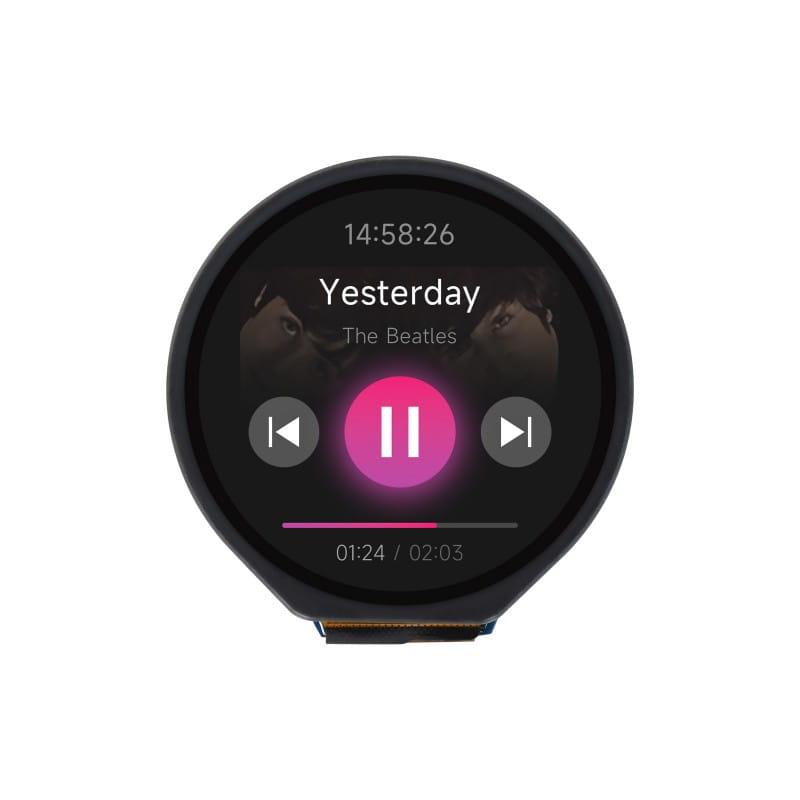

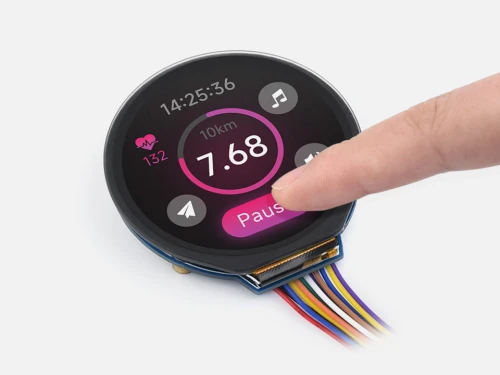

Presentation:
Dimensions:
The set includes:
- Capacitive LCD IPS 1.28" 240x240 display x1
- Cable x1
Wiki: 1.28inch_Touch_LCD
