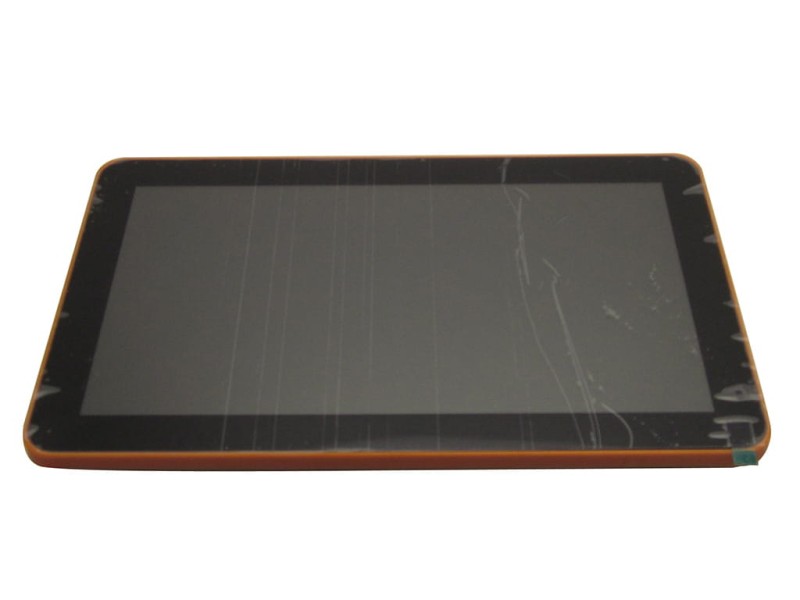

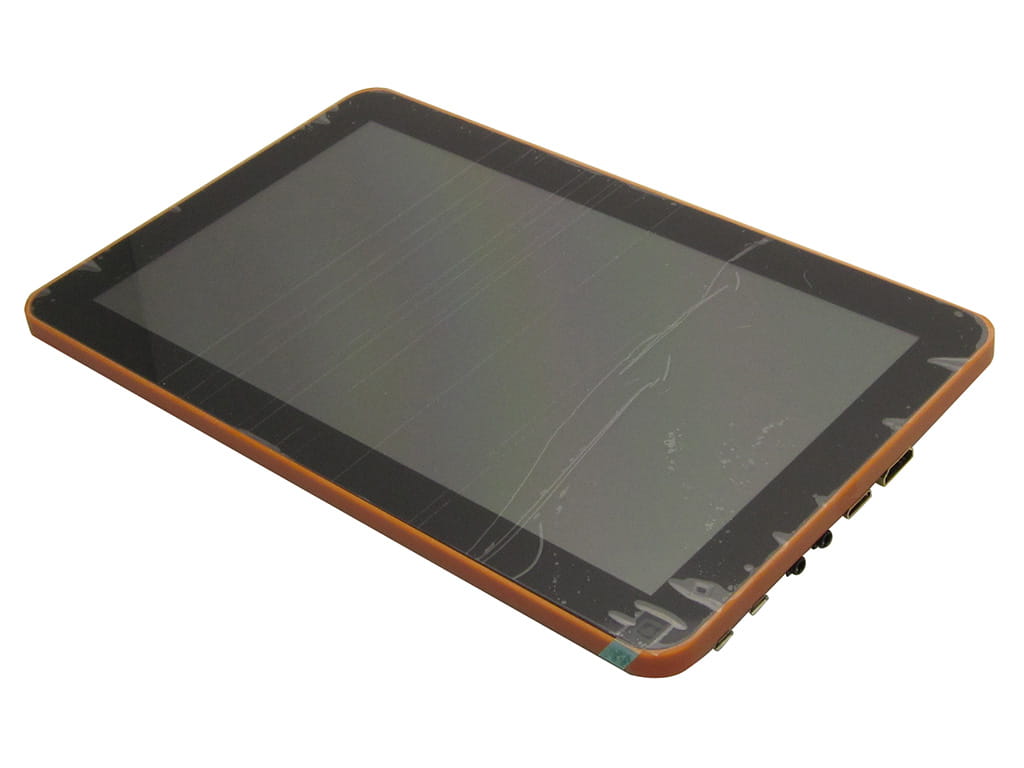

10.1 Inch LCD TFT 1024x600 Portable Monitor with Touch
・Kup teraz i zapłać za 30 dni
product unavailable
Description

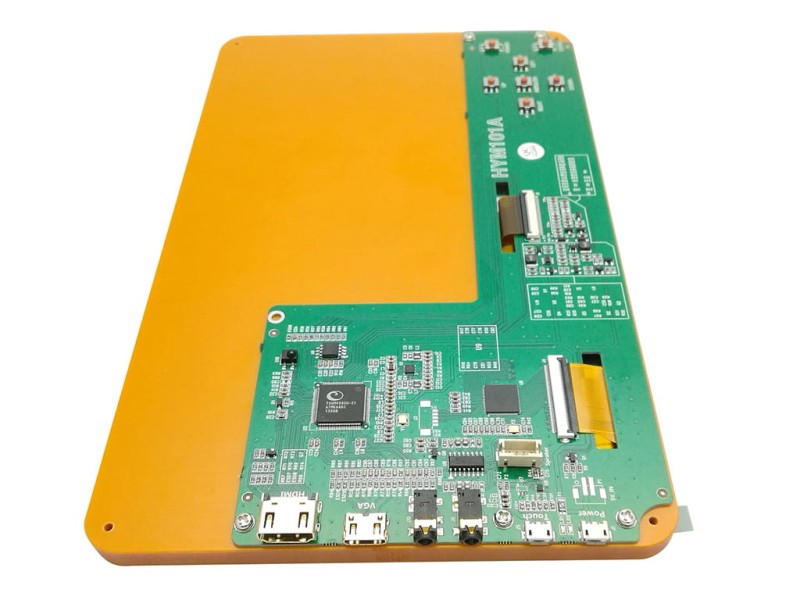

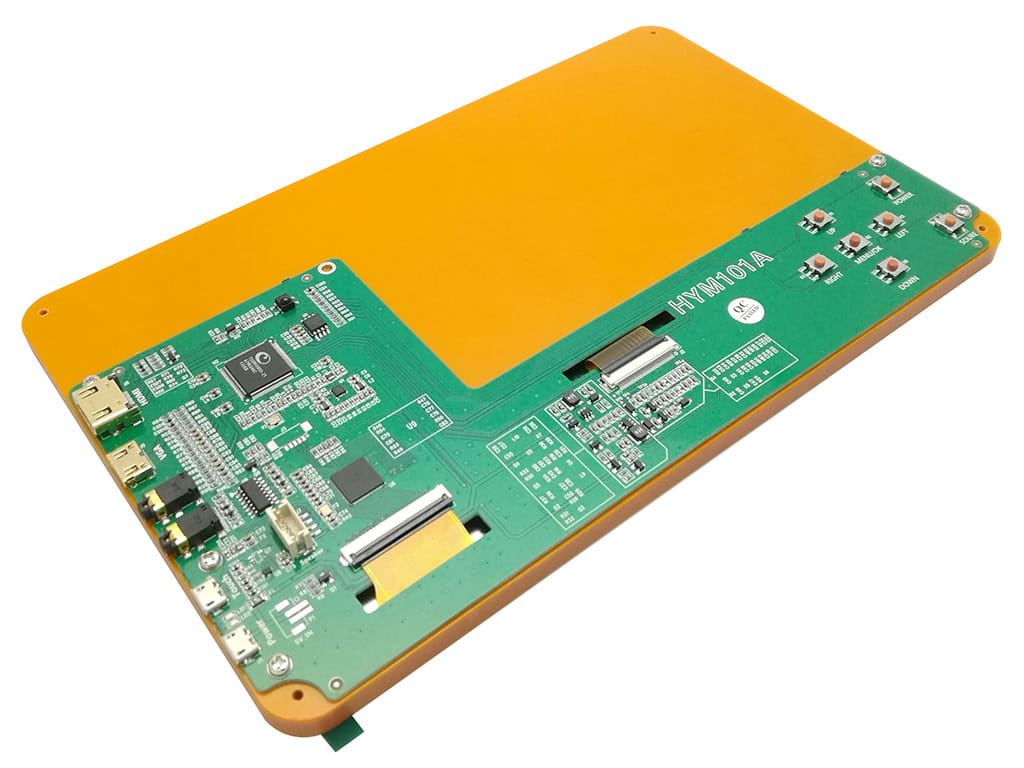

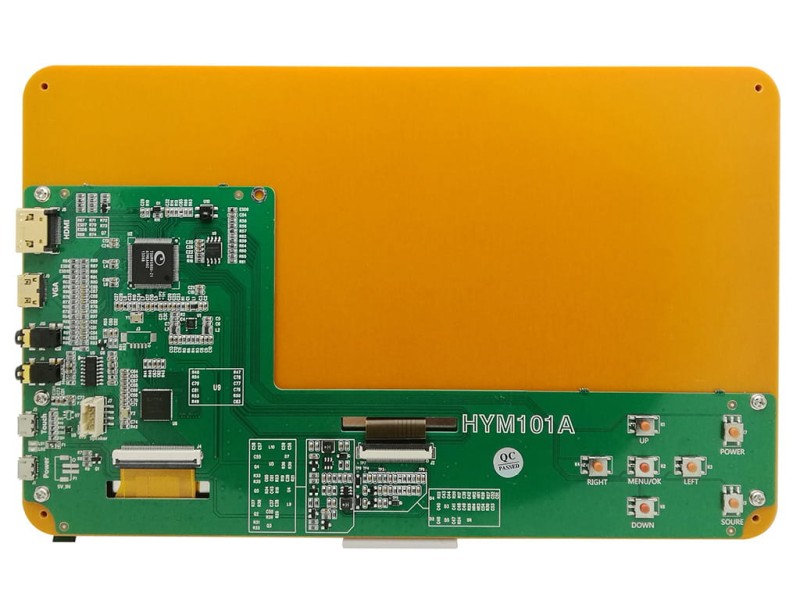

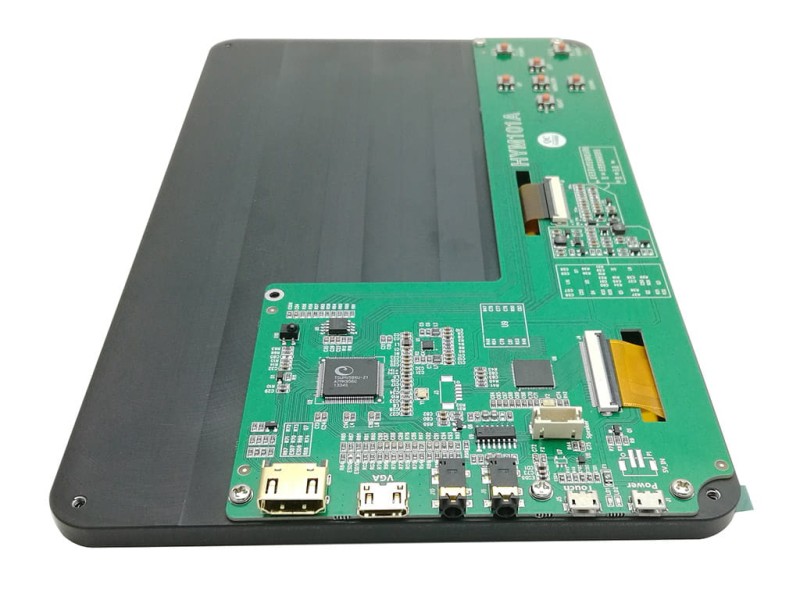

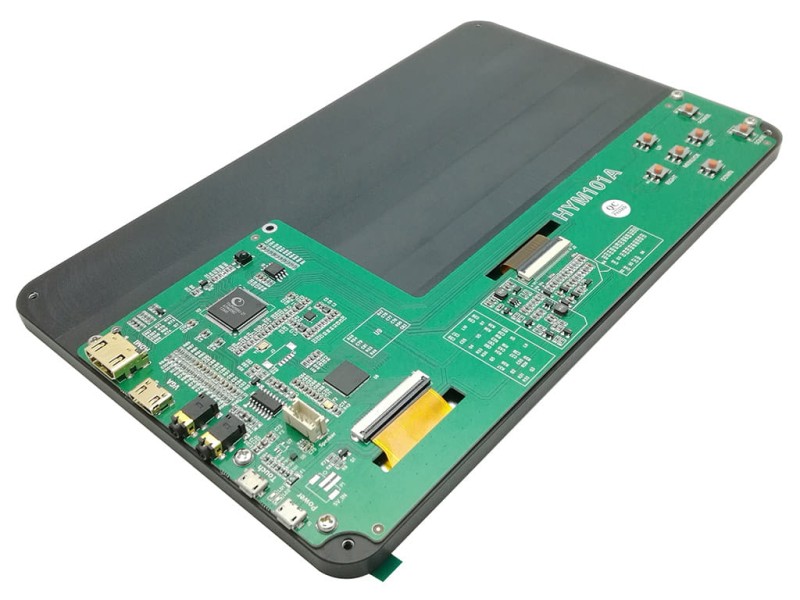

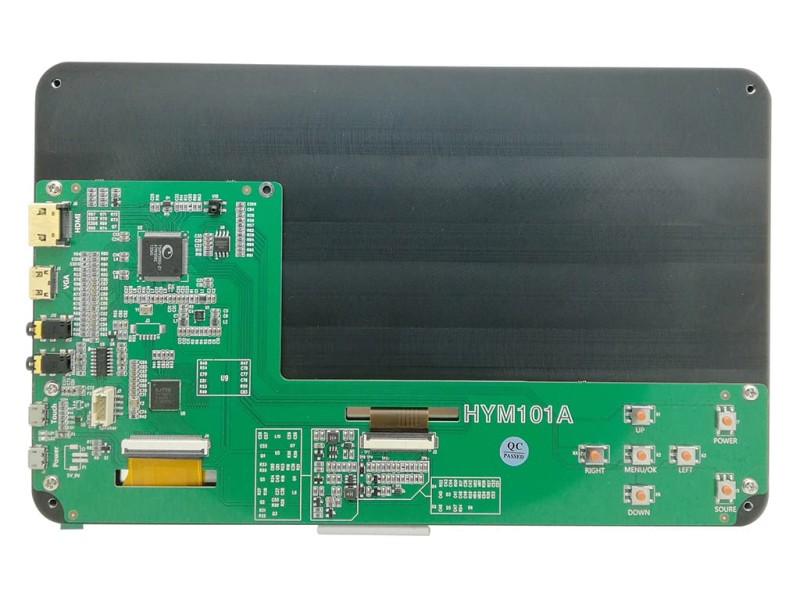

The 10.1 inch LCD Monitor has a resolution of 1024x600 pixels, which can brings you a subversive color experience, no splash screen and smear like. With the keys on the monitor back, you can choose control input interfaces by pressing the keys or use the remote control. It supports multiple video input interfaces such as HDMI, VGA, USB Multimedia. Besides, 5V/1A micro USB power supply allows a low power consumption, supports audio with external high-quality loudspeakers or headphone.
This LCD Monitor could be used in the Raspberry Pi PS3 PS4 WiiU Xbox360 windows system and so on, which can bring you a visual feast, also support with spacing mounting holes for general wall mount.
LCD Panel Specifications
| Screen diagonal (Inch/cm) | 10.1/25.65 |
| Display active screen size (cm) | 22.27×12.52 |
| Aspect ratio | 16:9 |
| Physical resolution | 1024×600 |
| Maximum showable resolution | 1920×1080 |
| Colours displayed | 16.7M |
| Brightness (cd/m2) | 320 |
| Contrast | 500:1 |
| Typical reaction time Tr/ Tf (ms) | 10/15 |
| Visual Angle horizontal/vertical | 120/120 |
| Backlight / Backlight Lifetime (hours) | LED / 20,000 |
Touch Panel Specifications
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows, Linux, Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etched) |
Product Specifications
| Weight | 0.7 kg |
| Appearance size | 260.1mm x 162.65mm X 15.4mm (Base 8mm + PCB 7.4mm) |
| Mounting Hole | 245 x 147.56mm (M3 screw hole) |
| Video input interfaces | HDMI, VGA |
| Color | black or orange |
| Working environment temperature | -10℃--+60℃ |
| Working power supply | 5V/1A micro USB |
| Audio Output | Headphone Jack 3.5mm & HDMI Audio |
| USB Interface | Micro USB 1.1 device for USB touch, USB 2.0 host for Multi-Media |
Package list
- HYM101A x 1

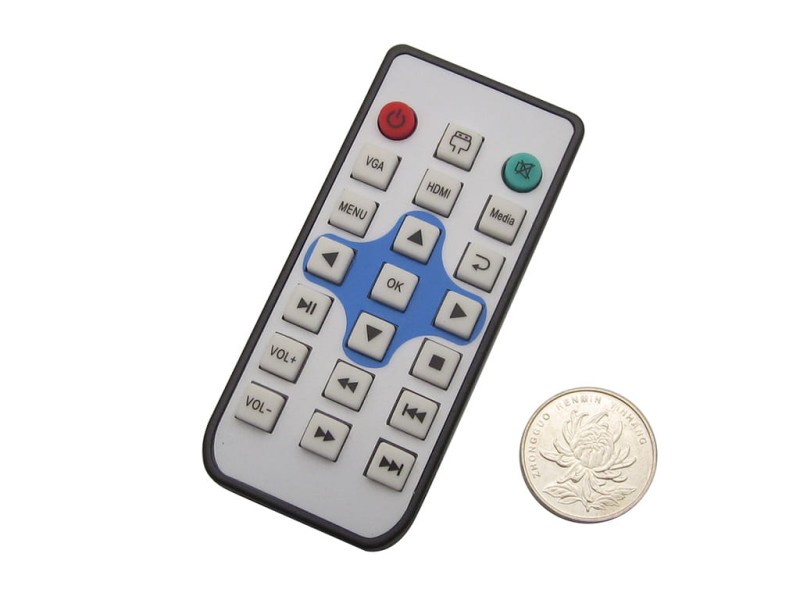

- Remote control x 1
- USB A Receptacle to Micro USB cable x1

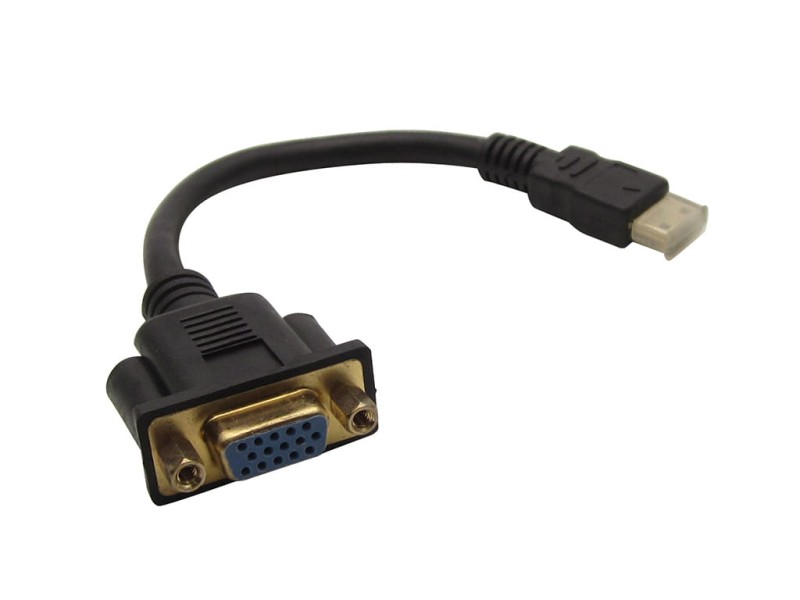

- MINI HDMI to VGA cable x 1
