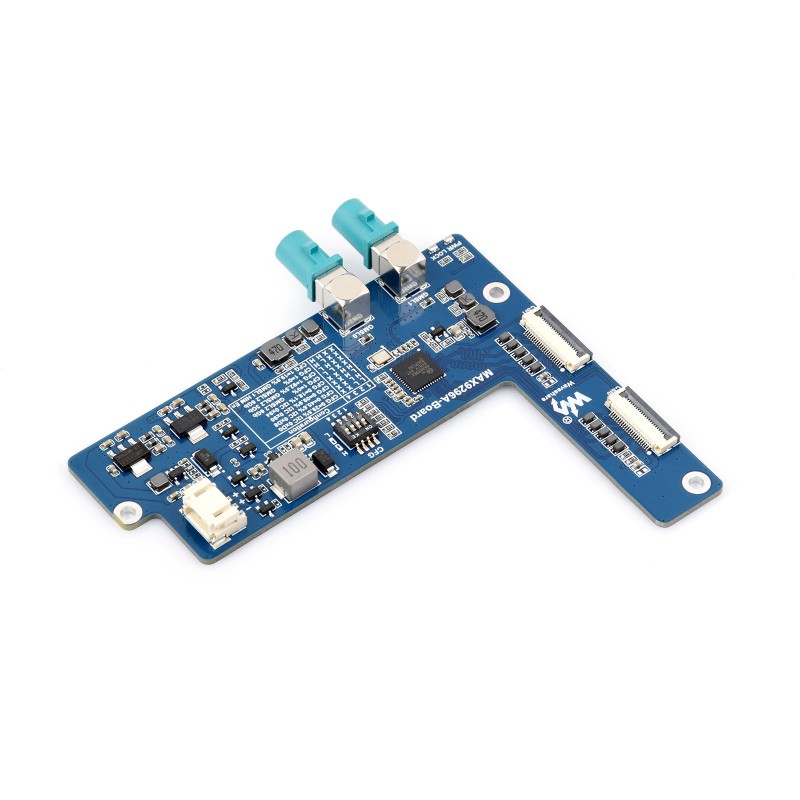

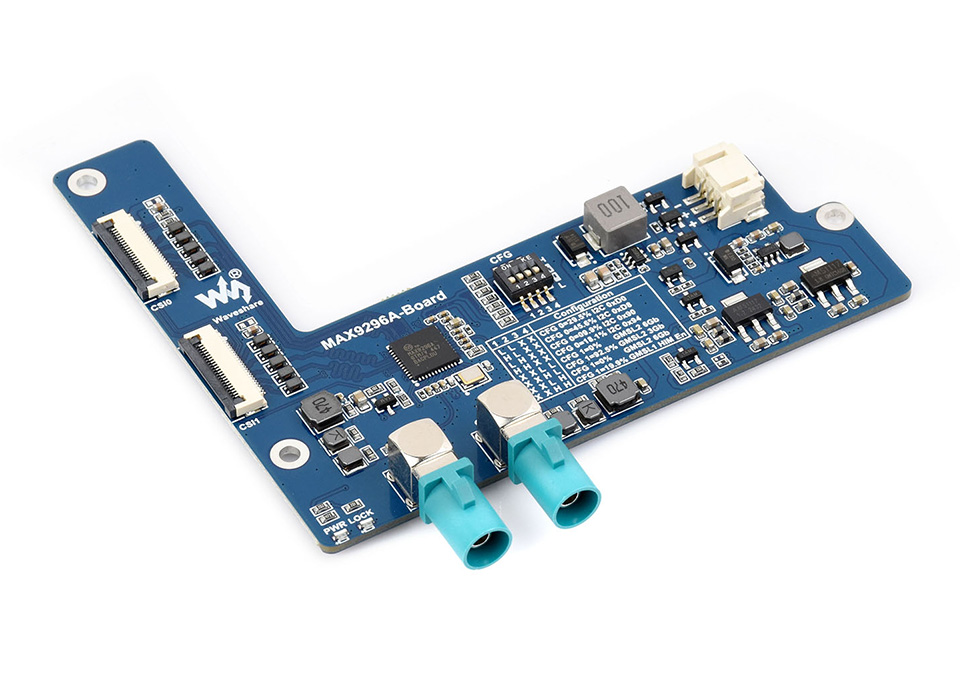

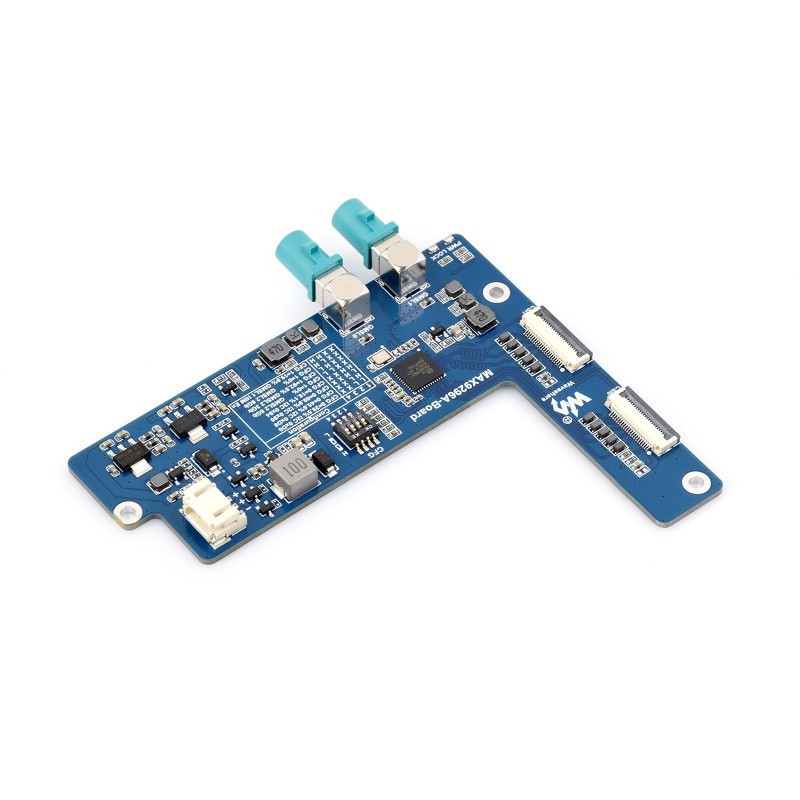

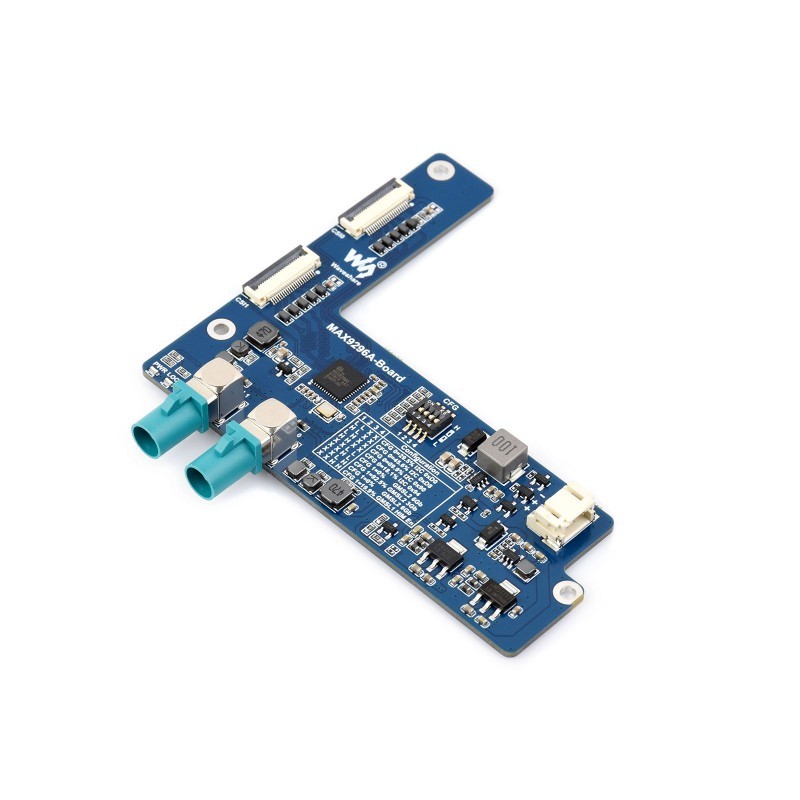

2-Channel GMSL Camera Adapter with MAX9296A Deserializer – for Raspberry Pi 5 and Jetson Orin
Advanced GMSL (Gigabit Multimedia Serial Link) camera adapter module equipped with the high-performance MAX9296A deserializer. It enables the connection of two GMSL cameras to popular platforms: Raspberry Pi 5 and Jetson Orin Nano / NX kits. Supporting high-speed, low-latency serial transmission, this module is ideal for autonomous driving systems, machine vision, smart monitoring, and industrial applications.
Key features:
- Supports connection of two GMSL cameras (e.g., ISX031)
- Integrated MAX9296A deserializer from Maxim (ADI)
- Full compatibility with Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX
- Compatible with GMSL1 and GMSL2 protocol interfaces (software configuration)
- Long-distance signal transmission with high noise immunity
- Low latency video transmission – crucial for real-time systems
- 5V power supply
GMSL Technology – High Bandwidth and Range
GMSL (Gigabit Multimedia Serial Link) is a technology designed to transmit high-bandwidth multimedia data. It allows the transmission of HD video, audio, and control data over a single cable (coaxial or twisted pair) over significant distances while ensuring high electromagnetic interference resistance.

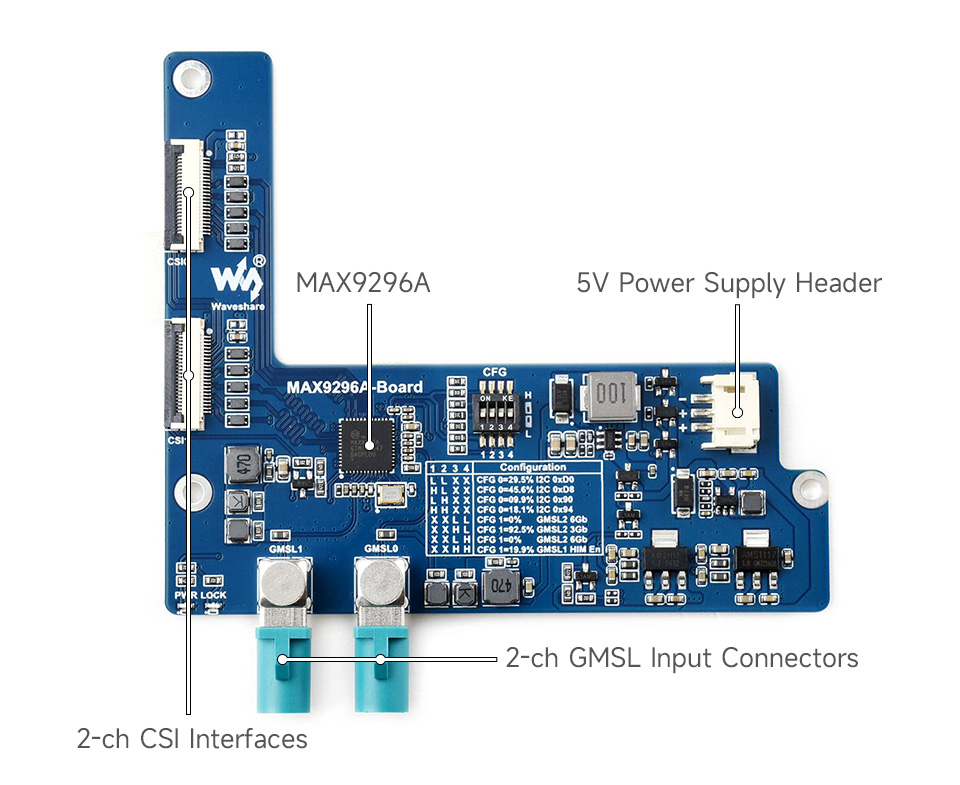

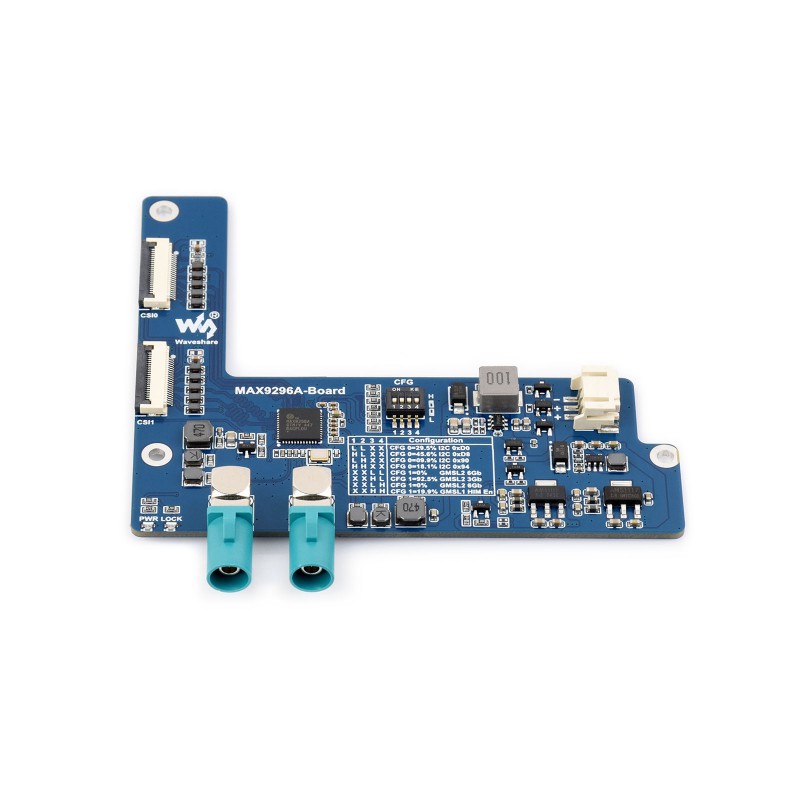

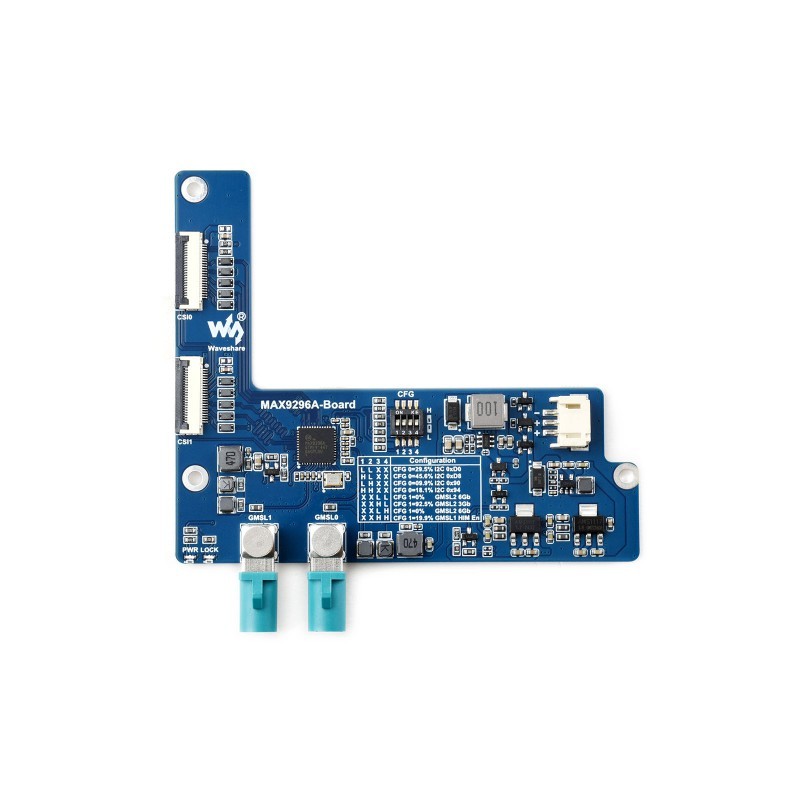

Board Layout and Elements
The module is equipped with professional FAKRA Z connectors (camera input) and standard 22-pin CSI connectors (host output).

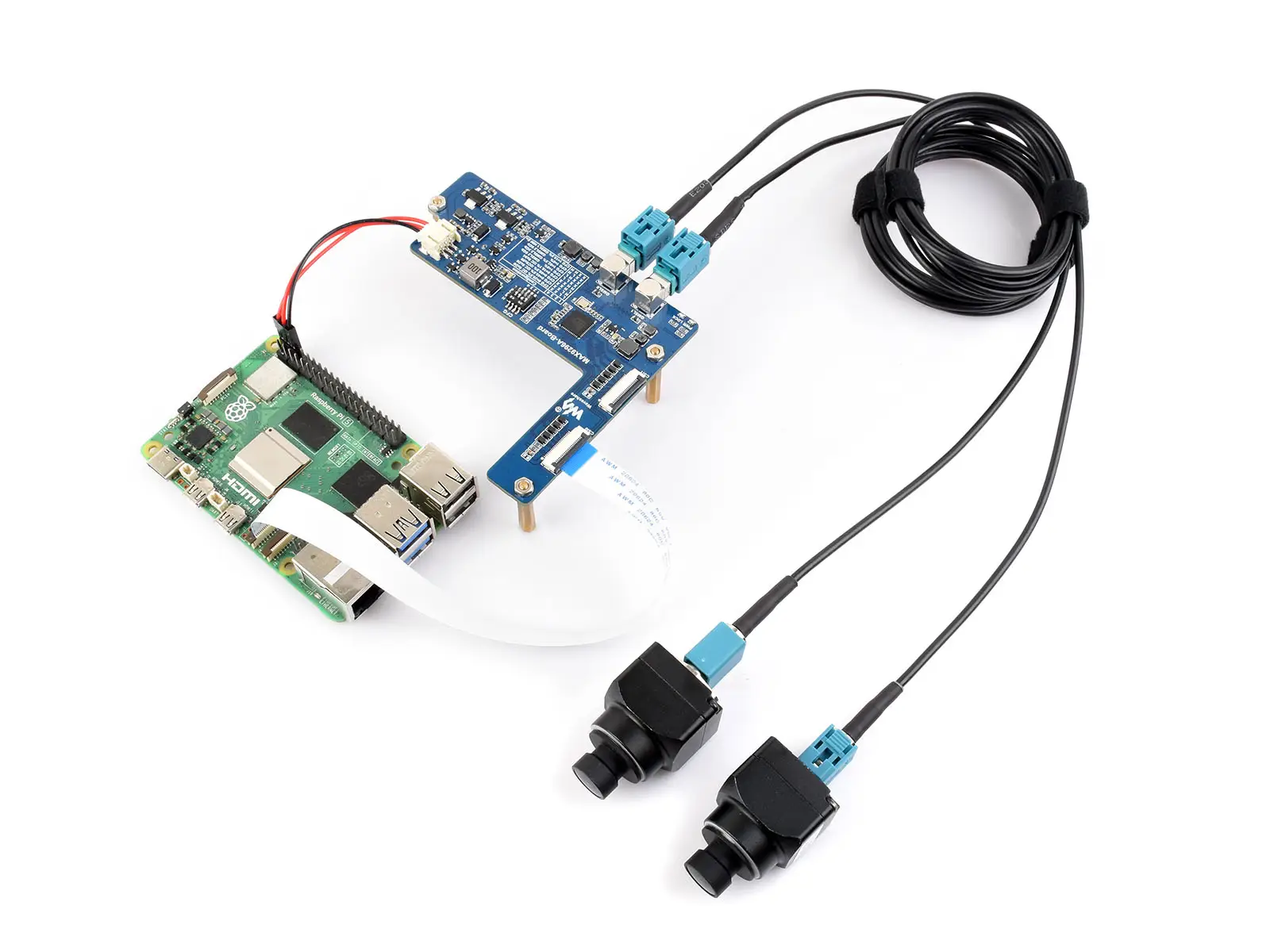

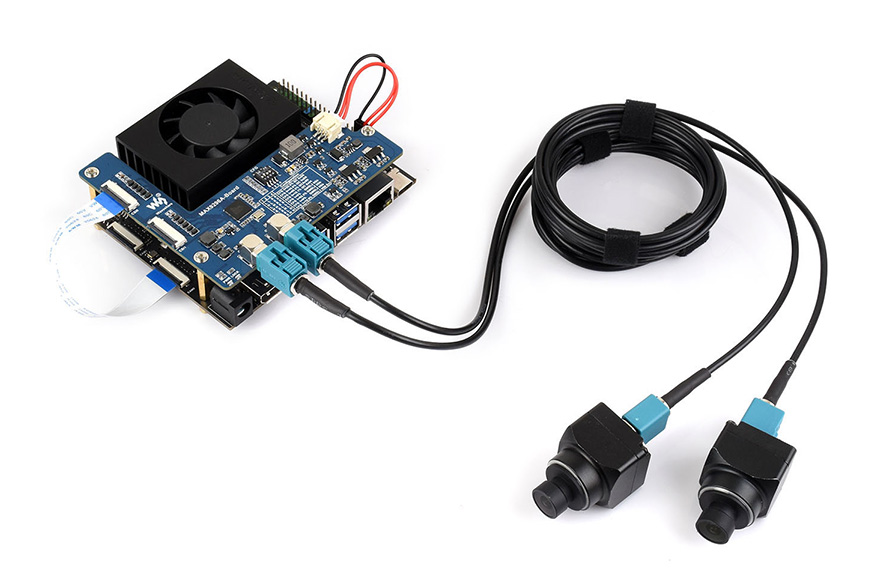

Application Examples
Perfect solution for integrating advanced vision systems with single-board computers.
Technical Specification:
- Deserializer: MAXIM (ADI) MAX9296A
- Input (Cameras): 2 × MATE-AX FAKRA Z connector
- Output (Host): 2 × 22PIN CSI connector
- Supported cameras: GMSL2 (compatible with GMSL1), e.g., ISX031
- Compatible platforms: Raspberry Pi 5, Jetson Orin NX / Nano Kit
- Supported serializers: MAX9295, MAX96717, MAX96705 and others
- Power supply: 5V

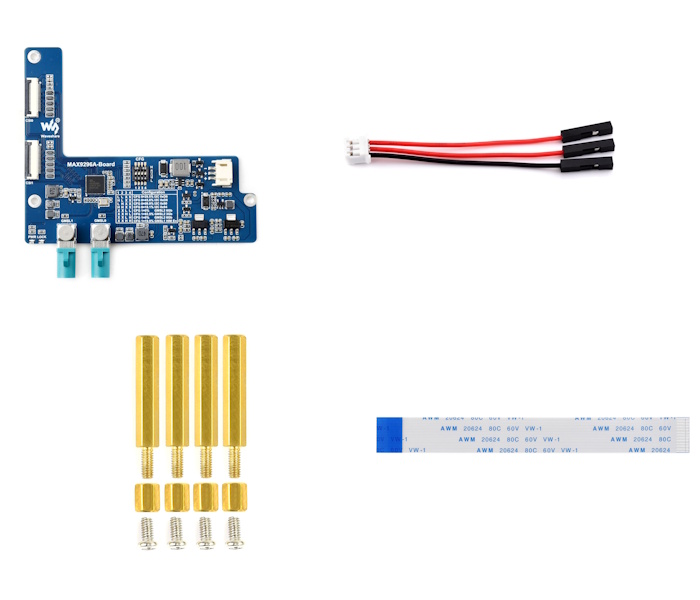

Kit Contents
- MAX9296-GMSL-DESER-MODULE ×1
- FFC cable 22PIN (~100mm) ×2
- PH2.0 3PIN cable ×1
- Screw set ×1
Note: Jetson Orin kit and cameras shown in the photos are not included.
