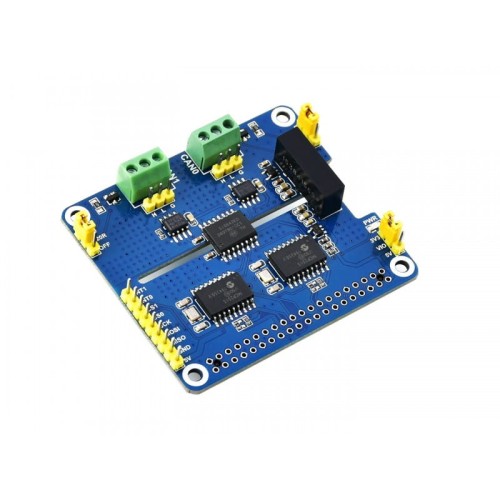

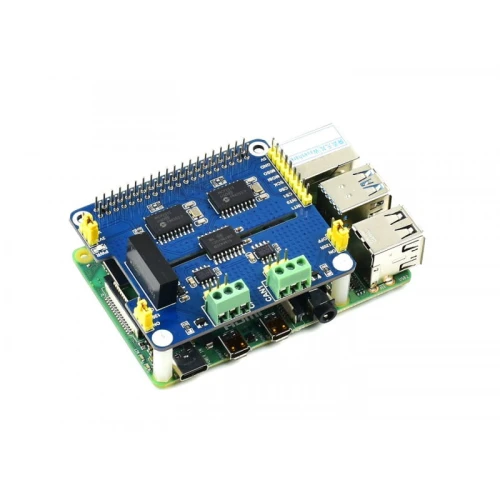

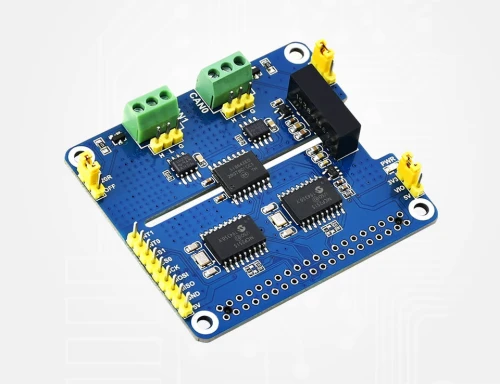

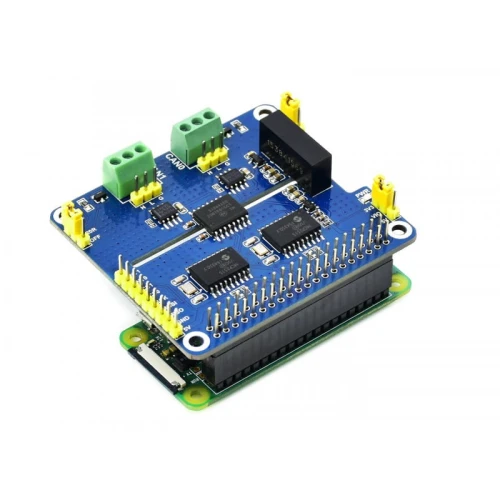

2-Channel Isolated CAN Bus Extension for Raspberry Pi
This extension has been specially designed for Raspberry Pi users who need stable and secure two-channel communication over the CAN bus. Thanks to the MCP2515 and SN65HVD230 chips and the isolation of digital signals, this module is driven by high quality and performance.
Product features:
- 2-channel CAN communication provides optimum conditions for data transmission
- Power supply isolation ensures stabilisation of the isolated voltage, eliminating the need for an additional interface power supply

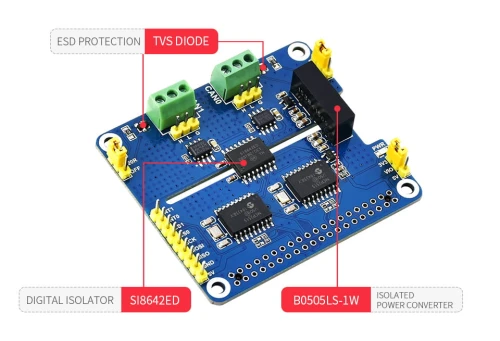

- Isolation of digital signals provides greater security, stability and noise immunity
- Installed TVS diodes provide protection against electrostatic discharge and surges
- Built-in 120Ω termination resistors adapt to different settings

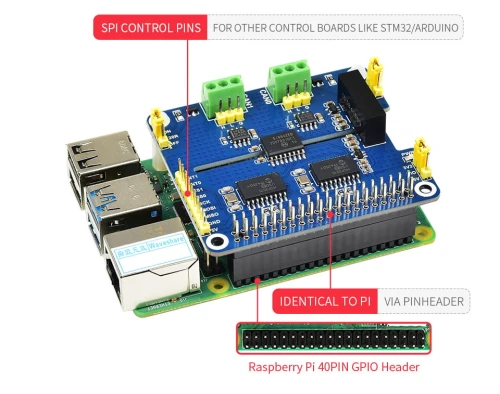

- Additional SPI connector enables interfacing with other systems

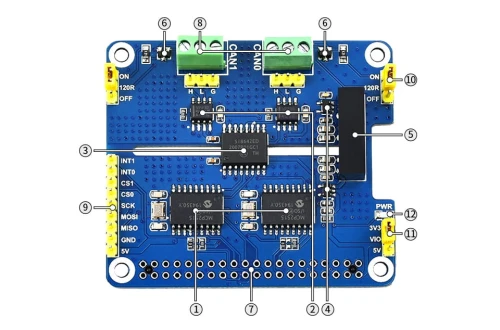

What you will find in the kit:

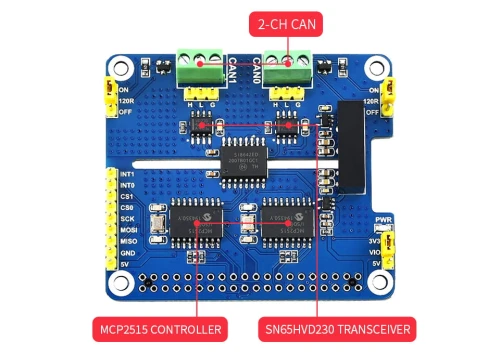

- CAN controller MCP2515
- CAN transceiver SN65HVD230
- Digital isolator SI8642ED
- Power supply RT9193-33
- Power supply isolation module B0505LS-1W
- TVS diodes SM24CANB

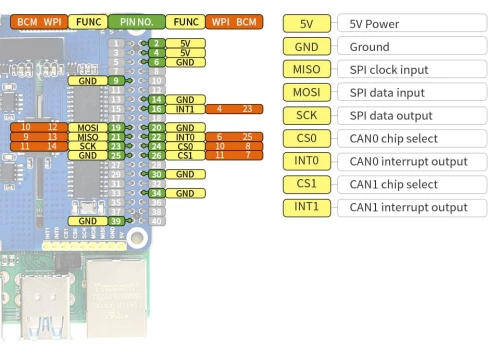

- Raspberry Pi standard GPIO connector 40PIN

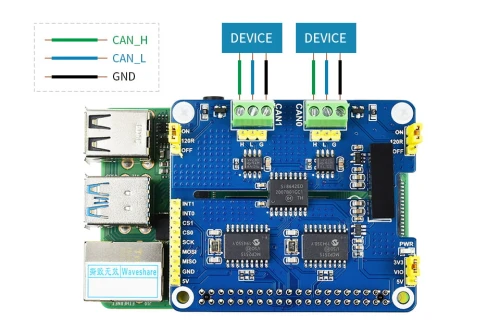

- CAN bus connector
- SPI interface connector for use with other microprocessor modules

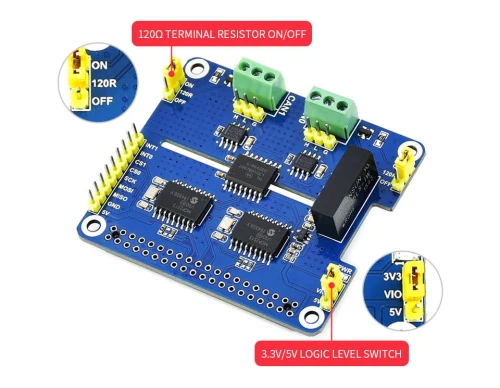

- Choice of 120Ω terminating resistors
- Voltage level selection of digital signals 3.3V/5V
- Power supply signalling
Specification:
- MCP2515 CAN bus controller
- Supply voltage: 5V
- CAN bus transceiver SN65HVD230
- Digital signal voltage levels: 3.3V/5V
- SPI control bus

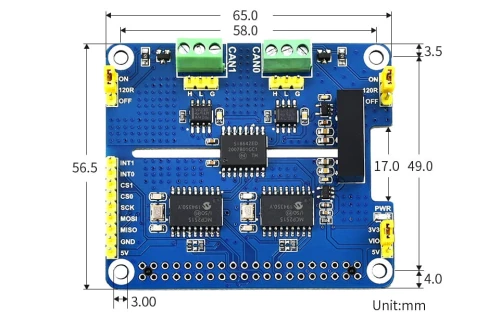

- Dimensions: 65 × 56.5 (mm)
With the functionality and reliability of this 2-channel isolated CAN bus extension for Raspberry Pi, you will be able to successfully develop your Raspberry Pi-based projects and applications.
Wiki: 2-CH_CAN_HAT
