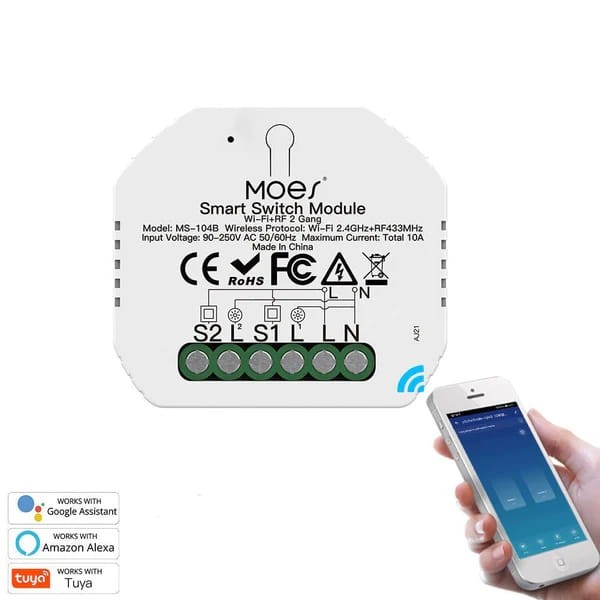

2-channel WiFi+RF in-box relay with 433MHz Tuya radio remote control operation
product unavailable
Description
A two-channel relay controlled via Wifi that offers convenient control via the Tuya app and a 433MHz radio remote control.
Thanks to this state-of-the-art technology, you can control your device via the TUYA Smart app on Android or iOS devices. In addition, the app allows you to program weekly schedules and automatically control your device.
The relay uses the cloud for control, which means you can control the device from anywhere. All you need is your phone to access the internet and the relay to be connected to a Wifi network.
The Tuya app also provides the ability to create scenarios and automatic control. For example, by adding a motion sensor, you can create a simple automation that turns on lights when motion is detected in a room and much more.
Moes MS-104B Wifi Controlled Relay Specifications:
- Works with dual light switches
- Works with mono and bistable key switches
- Supply voltage: 110-230V AC
- Maximum current drawn by the load: 2x150W for LED bulbs, 2x1500W for incandescent bulbs
- Control from anywhere in the world
- Creation of timetables and automatic control
- Communication: WiFi 2.4GHz, range 30 to 50m
- Radio communication: 433MHz - fixed-code remote controls supported
- Device dimensions: 47x52x18mm
- Operating temperature: 0 - 50°C
To use this module, it is necessary to connect the L and N supply lines. If there are only three wires in the current configuration of the two-button light switch, this means that there is no suitable installation to fit this relay.

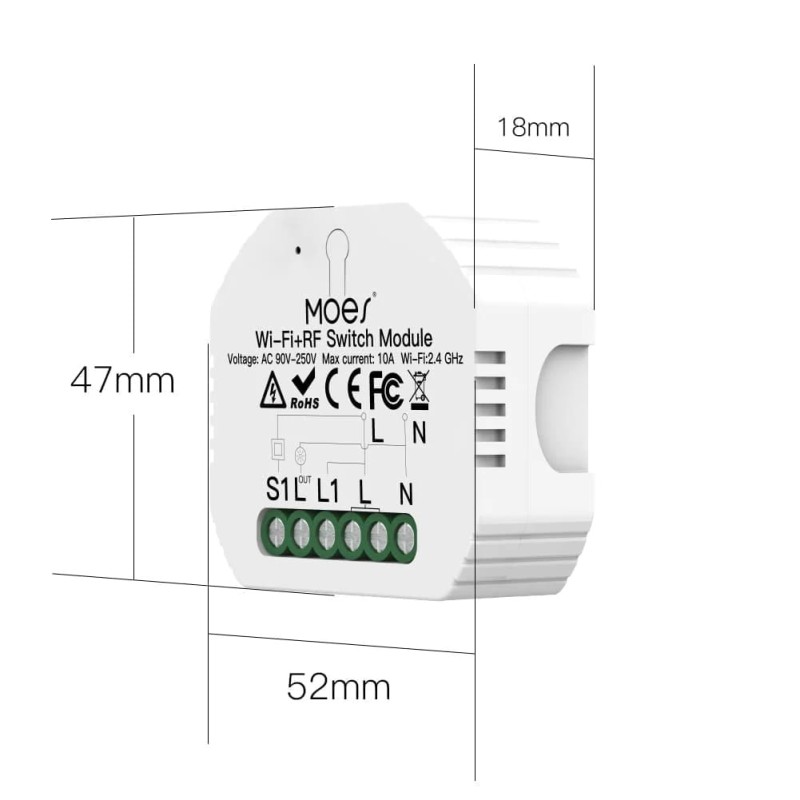

Dimensions of the Moes MS-104B relay
Thanks to the compact size of this relay, you can easily mount it in a deep box under the light switch. In addition, a bracket for DIN rail mounting in the control cabinet is included.
Kit includes:
- Dual WiFi controlled relay
- Bracket allowing the relay to be mounted on a DIN rail
- Operating instructions
