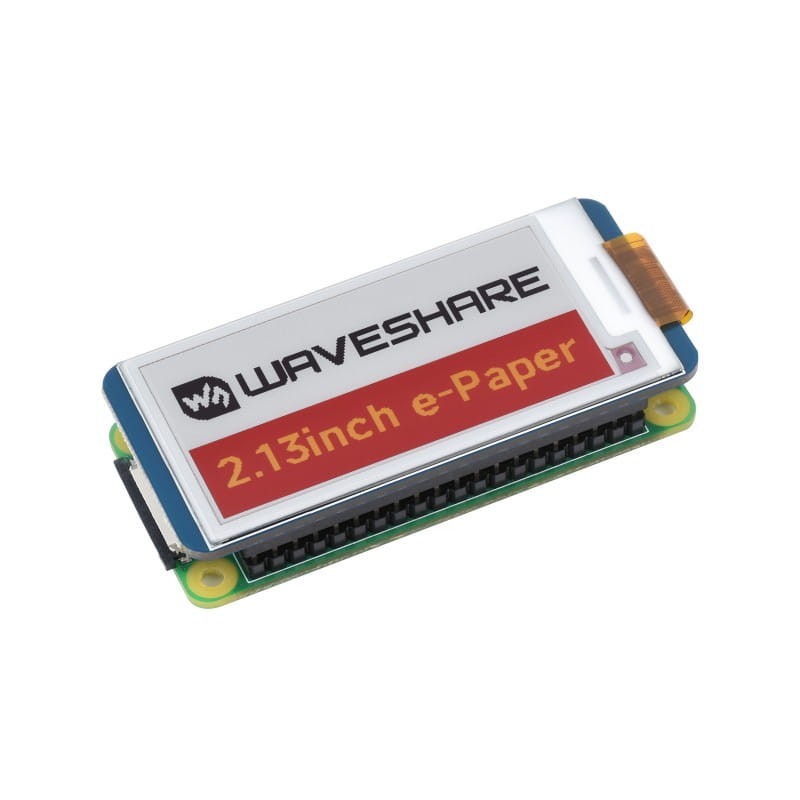

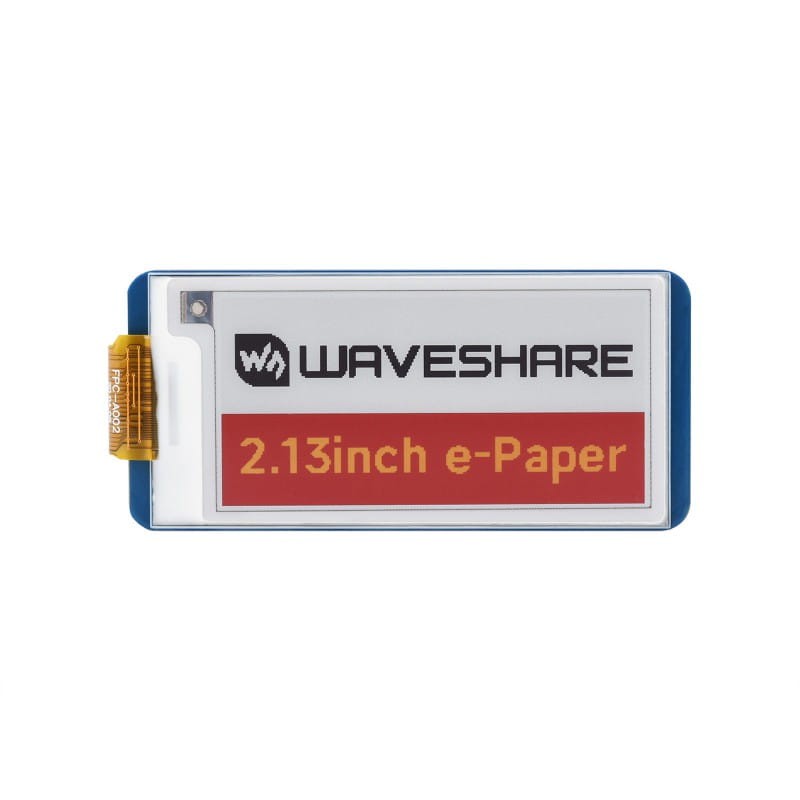

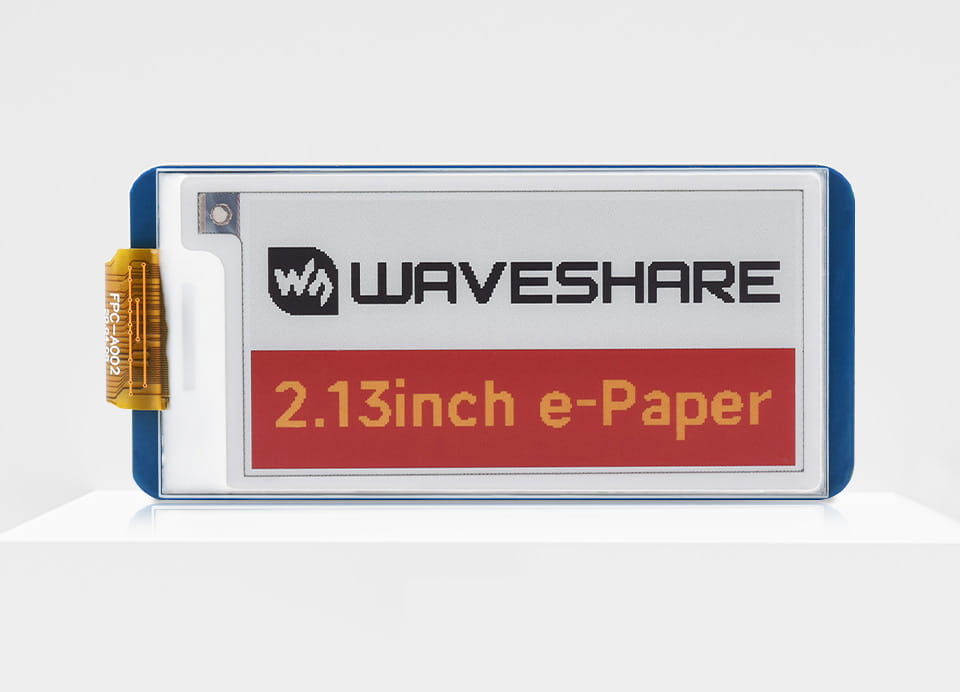

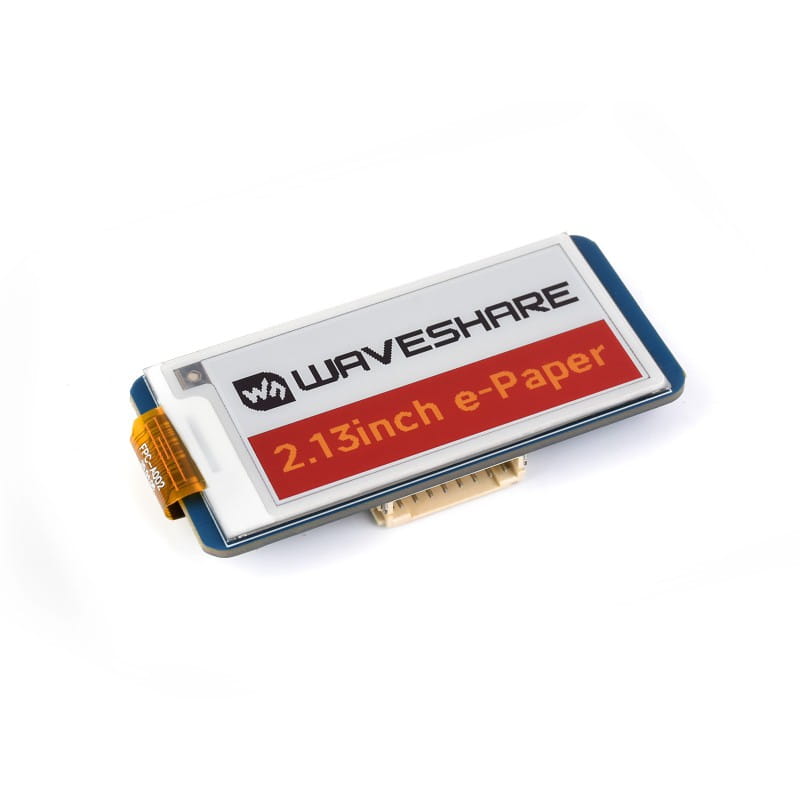

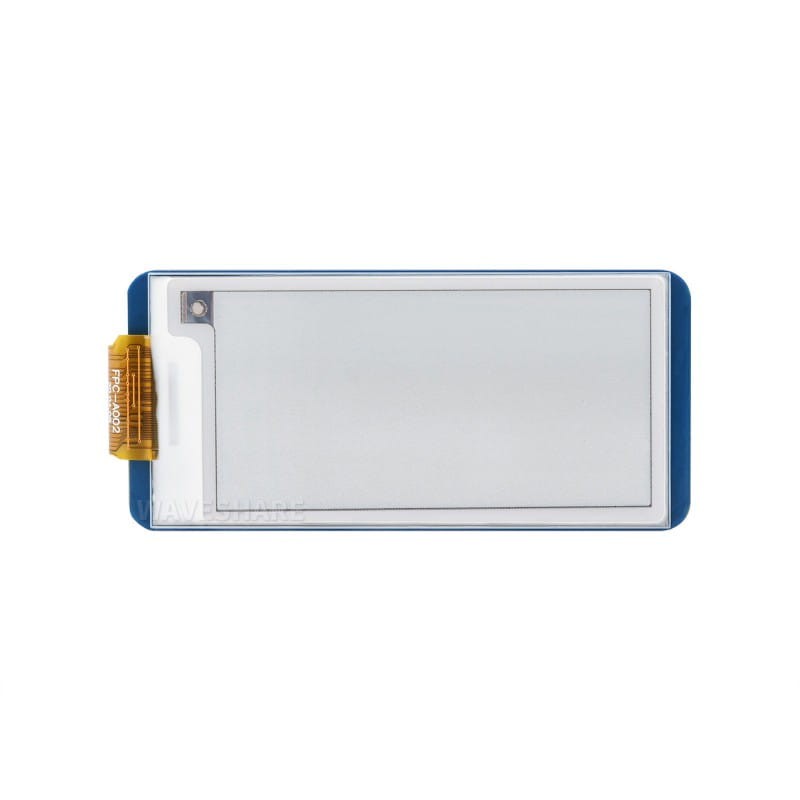

2.13 inch E-Paper Display HAT (G) – 250x122, Red/Yellow/Black/White, SPI
A 2.13-inch E-Paper display HAT (G) – characterized by low power consumption, wide viewing angle, and a paper-like effect that doesn't require power to maintain the image. Ideal for price tags, shelf labels, industrial indicators, and many other applications.
Key features:
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

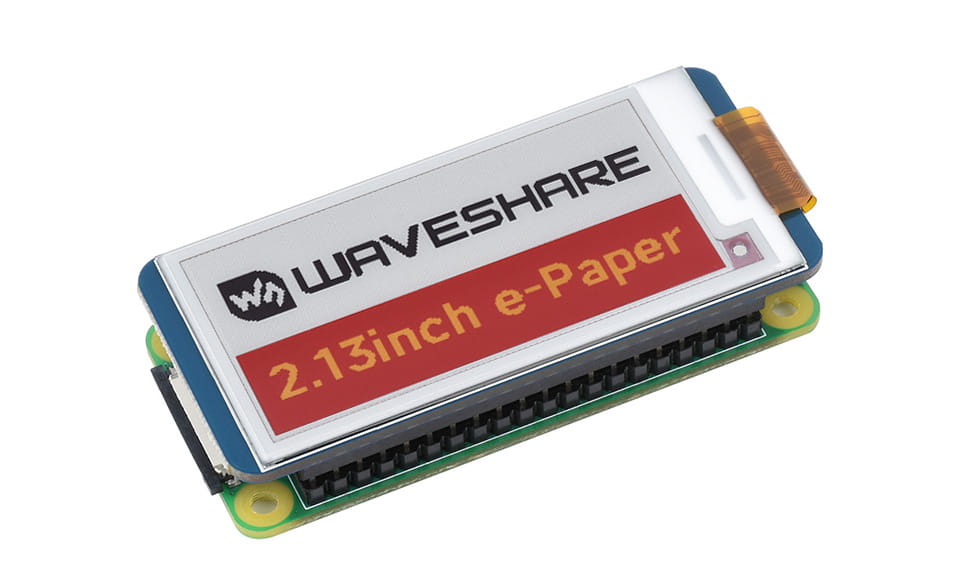

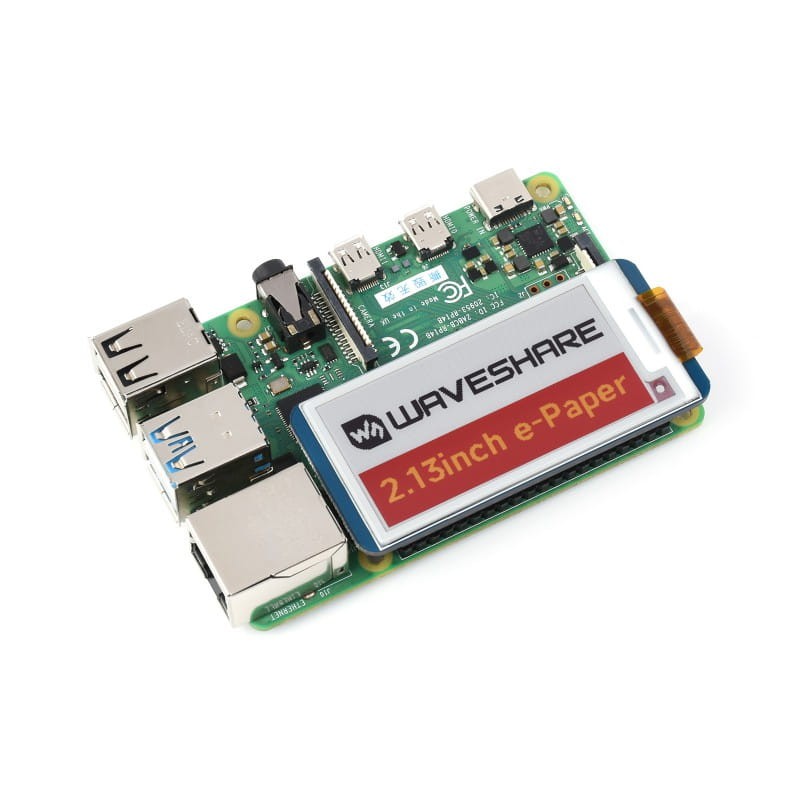

Standard Raspberry Pi 40PIN GPIO Header
Compatible with Raspberry Pi series boards and Jetson Nano.

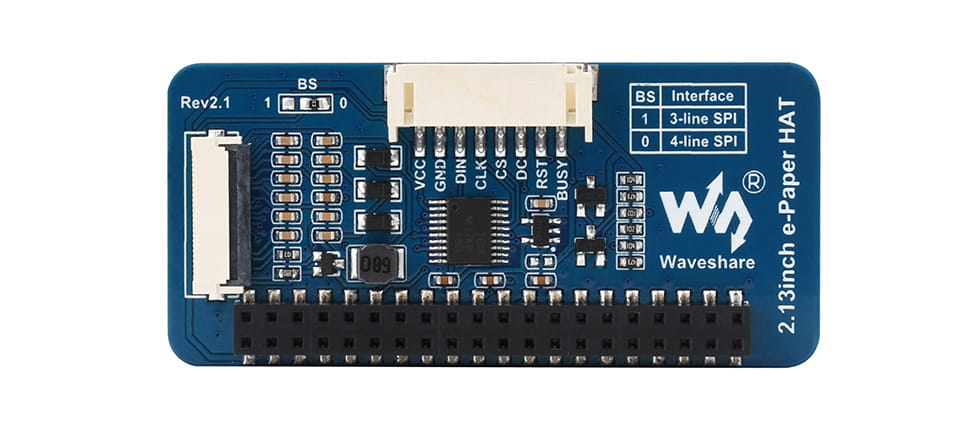

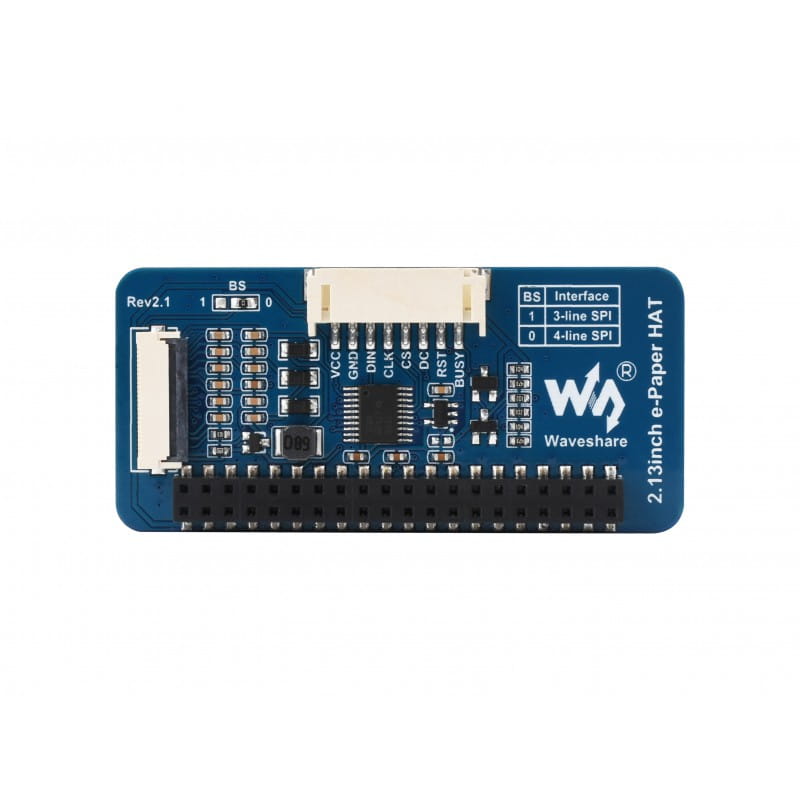

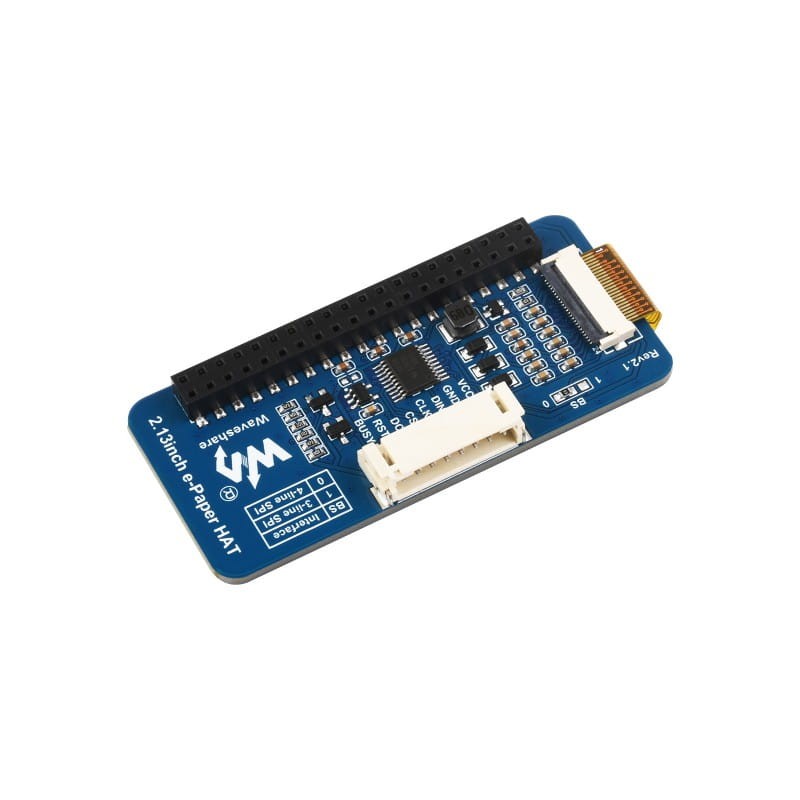

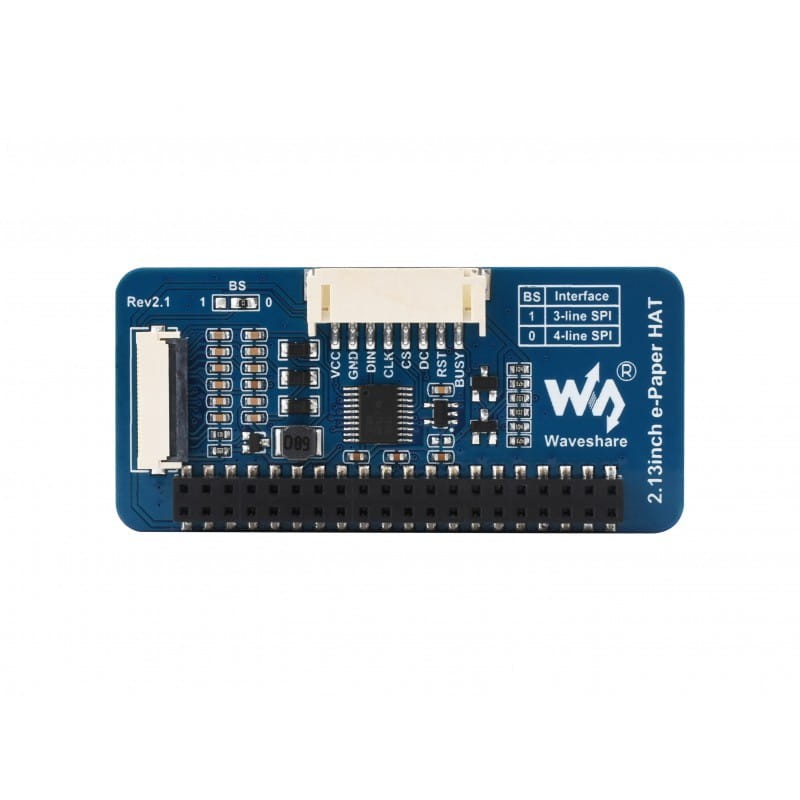

Onboard SPI Control Interface
For use with controller boards like Arduino/STM32.
| PIN | Description |
|---|---|
| VCC | Power (3.3V / 5V input) |
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCK pin |
| CS | SPI chip select (active low) |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset (active low) |
| BUSY | Busy status output pin |

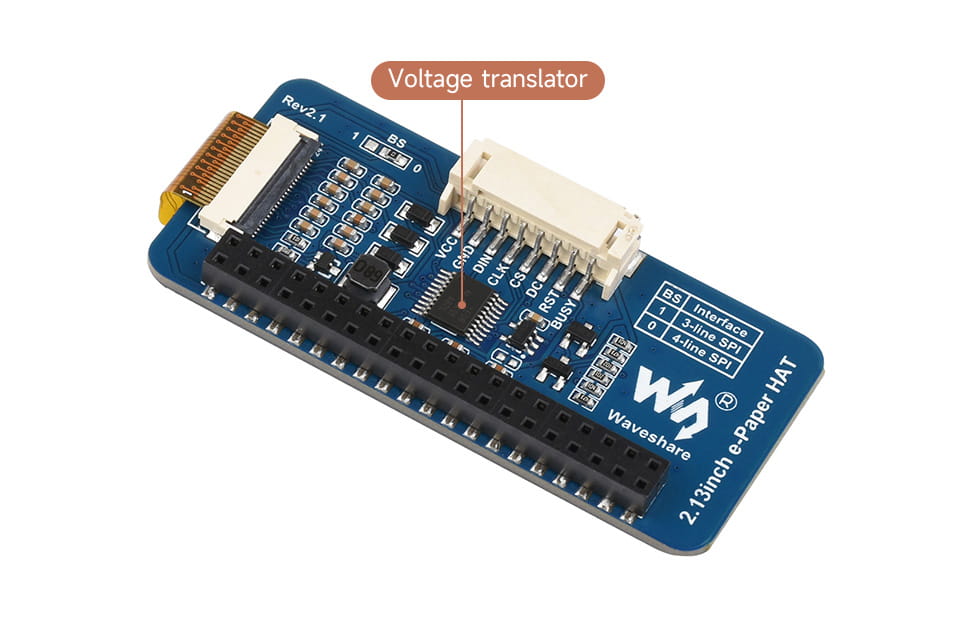

Onboard Voltage Translator
Compatible with 3.3V / 5V MCUs.

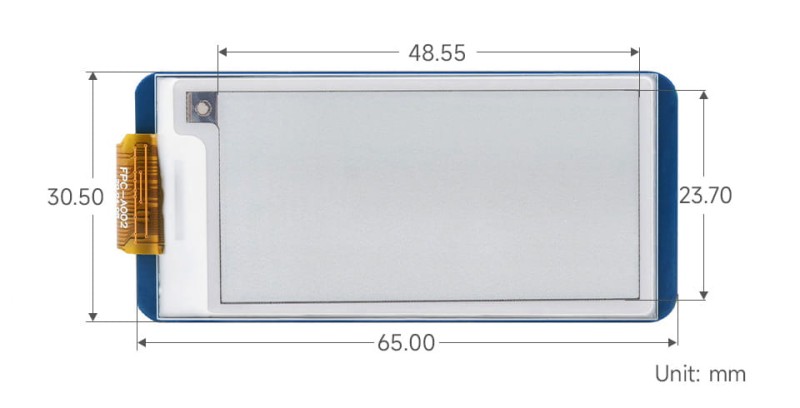

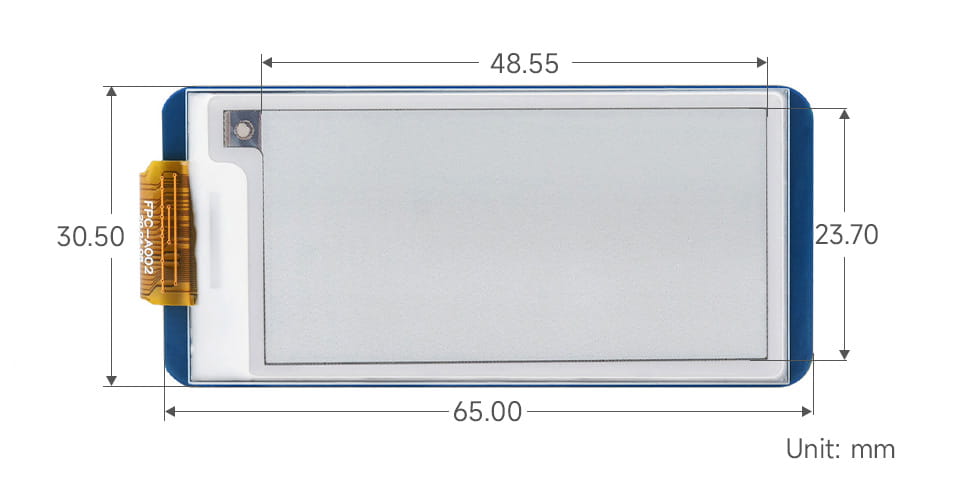

Outline Dimensions
Technical Specifications:
- Operating voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimensions: 65 × 30.2 mm
- Display size (active area): 48.55 × 23.70 mm
- Dot pitch: 0.1943 × 0.1942 mm
- Resolution: 250 × 122 pixels
- Display colors: Red/Yellow/Black/White
- Grey scale: 2
- Full refresh time: 25 s
- Refresh power: 26.4 mW (typ.)
- Standby current: <0.01uA (almost 0)
- Viewing angle: >170°
- Weight: 0.016 kg

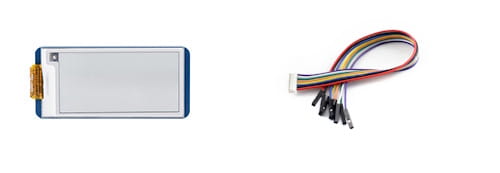

Kit Contents
- 2.13 inch E-Paper HAT (G) x1
- PH2.0 8Pin cable 20cm x1
Wiki: www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(G)
