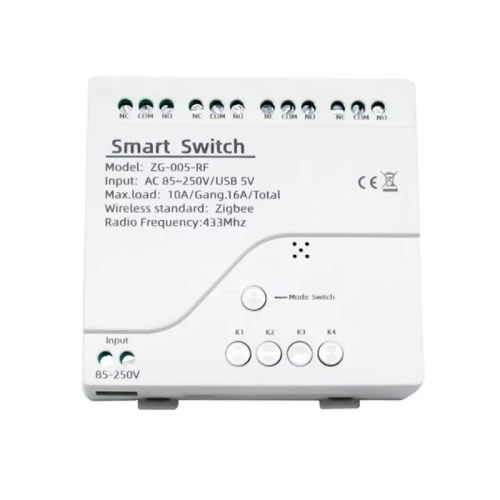

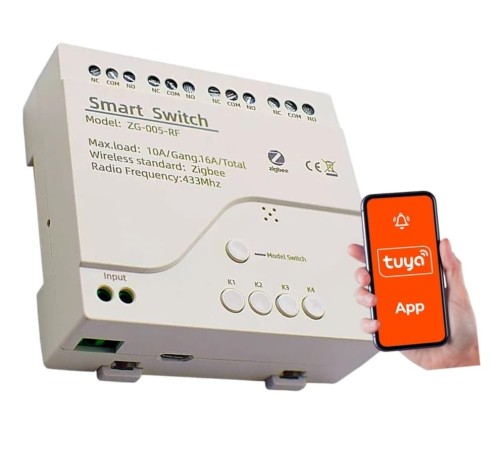

4-channel Zigbee 3.0 relay + Tuya remote control
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
A 4 channel Zigbee 3.0 + RF 433MHz controller with voltage free outputs compatible with Tuya, Smart Life software and with all its capabilities.

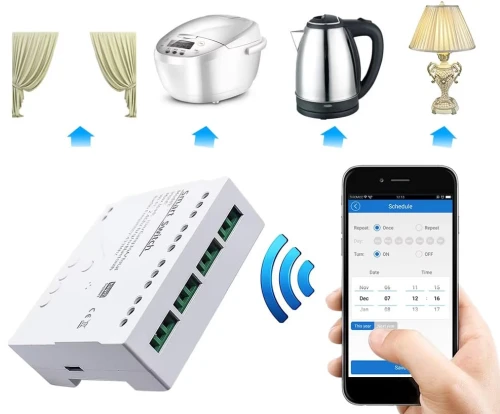

The main purpose of the module is to add intelligence to the devices you already have. The small dimensions and 230V or USB 5V voltage make it easy to install in target devices such as garage doors, gate controllers, motor controllers, heating cookers, roller shutters.
The controller can operate in one of three modes:
- Normal - i.e. each relay can be independently switched on and off
- Impulse - impulse control, the relay after switching on will automatically switch off after 1s. so called impulse control used for gate control
- Link (interlock) - this function causes only one of the four relays to be switched on at a time, switching on one relay automatically switches off the other, a function used when controlling roller shutters and motors. Switching on this function automatically disables the impulse control function.
The mode is selected using the "Mode Switch" button on the device board.
Technical parameters of the module:
- Supply voltage: 5V DC, 85-250 AC
- Zigbee 3.0 communication
- Control by fixed-code 433MHz RF remote control
- Voltage-free outputs
- 4 relays with outputs: NC,NO,COM

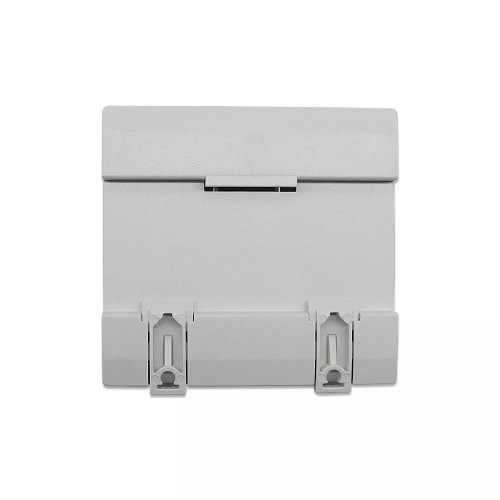

- Module dimensions: 81x76x28mm
- A Zigbee 3.0 Tuya gateway is required to operate the module
Module dimensions:
When you buy you receive:
- 4 channel Zigbee 3.0 + RF433MHz controller with voltage free outputs working with Tuya application, Smart Life
The radio remote control is not included.
The controller requires a connection to a Zigbee 3.0 gateway for operation
Adding to the Tuya, Smart Life app
Which application the switch will work with depends on the ZigBee 3.0 gateway used.
For the Tuya app:
Once connected to the power supply, the controller confirms that it is ready for pairing by flashing the red LED, at this point we launch the Tuya application and carry out the process of adding the device in the zigbee gateway module.
If the controller has already been paired before and you want to put it into pairing trim, hold down the "K1" button for about 10s until the red LED starts blinking.
Examples of remote controls from our range that match the controller described:
Adding radio remote controls:
Hold down the selected pairing button K1,K2,K3 or K4 until the blue LED flashes once, release the button and at this point press the button on the remote control.
Deleting radio remote controls:
Hold down the selected pairing button K1,K2,K3 or K4 for approximately 10s, the deletion of the remote controls will be confirmed by a rapid flashing of the blue LED.
Compatibility of the ZG-005-RF controller with Sonoff gateways, e.g. ZB Bridge-P:
The controller is not compatible with a SOnoff gateway.
