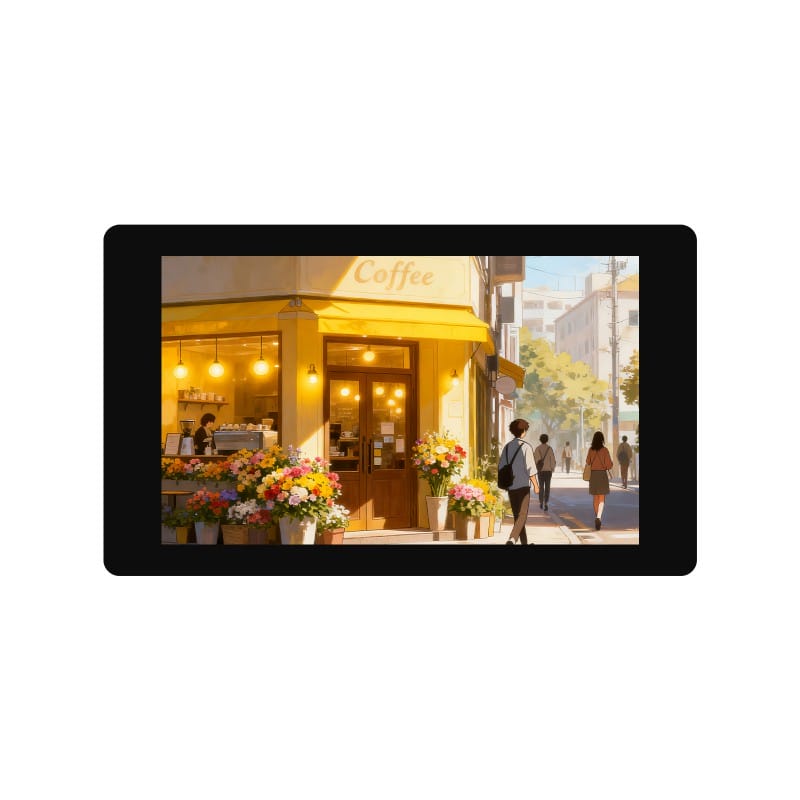

4.3" IPS DSI 480x800 Touchscreen for Raspberry Pi and ESP32
A compact, capacitive touchscreen with a diagonal of 4.3 inches, offering a bright and clear image on an IPS matrix with a resolution of 480×800 pixels. The module uses a high-speed MIPI DSI interface, ensuring smooth screen refresh (up to 60 Hz) and precise 5-point touch support. Thanks to the aluminum housing and fully laminated tempered glass panel, the product is a reliable solution for designing HMI panels based on Raspberry Pi, ESP32-P4 devices, or RK series chips.
Key features:
- 4.3" IPS matrix with a resolution of 480×800 pixels and a wide viewing angle of 170°.
- 5-point capacitive touch with tempered glass of 6H hardness.
- Full lamination (Optical Bonding) improving image clarity.
- High-speed MIPI DSI interface with a refresh rate of 60 Hz.
- Software-controlled backlight brightness adjustment.

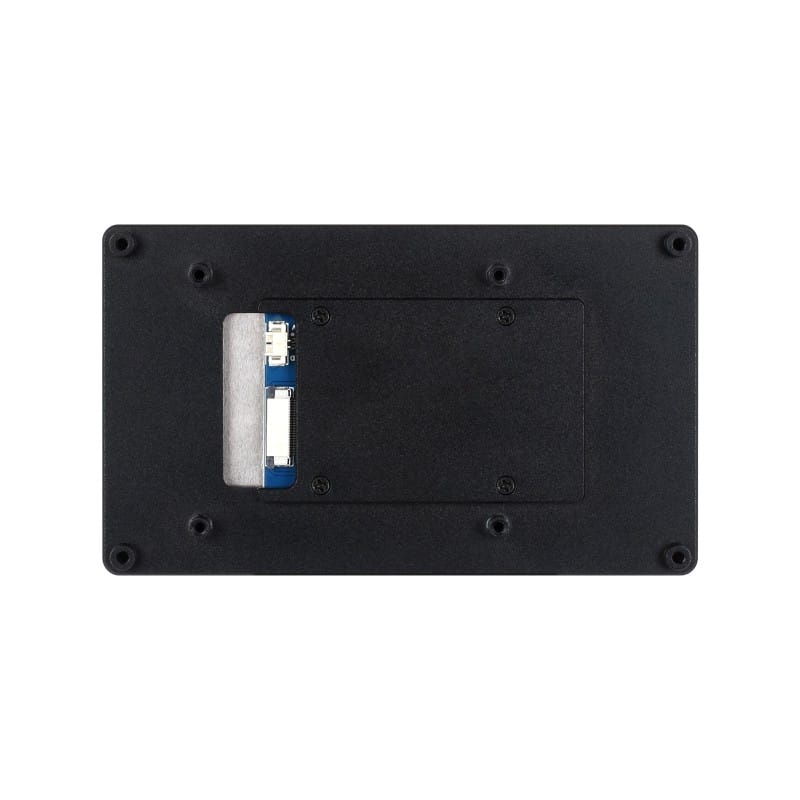

- Solid aluminum housing that acts as a passive cooling system.
Compatibility and system support
- Raspberry Pi: Native support for Raspberry Pi OS with 5-point touch (default portrait orientation with the option to change to landscape via software).
- ESP32-P4: Full support for programs with a graphical user interface (GUI) implemented using the LVGL library.
- RK Series (RK3506 / RK3576): Compatibility with systems such as Buildroot, Debian, Ubuntu, and Android.
Connection examples
Visual and touch communication is carried out using FFC or DSI ribbons (depending on the hardware platform). Power supply 5V is most conveniently provided via the GPIO pins of the microcontroller or single-board computer.
Dimensions and interfaces
Technical specification
- Resolution: 480 × 800 pixels
- Contrast: 1000:1
- Brightness: 500 cd/m²
- Video interface: MIPI 2-lane
- Display driver (IC): ST7701S
- Touch controller (IC): GT911
- Supply voltage: 5.0 V (typical)
- Current consumption: approx. 200 mA
- Operating temperature: from 0°C to 60°C
- External dimensions: 116.50 × 68.90 mm
- Screen active area: 93.60 × 56.16 mm
Kit contents
- Display module 4.3-DSI-TOUCH-A
- MIPI DSI communication ribbon (12 cm)
- MX 1.25 2PIN to 2.54 3PIN cable (110 mm)
- FFC ribbon 22PIN (~200 mm, opposite contacts)
- FFC ribbon 22PIN (~100 mm, opposite contacts)
- MX 1.25 2PIN to MX 1.25 4PIN cable (~150 mm)
- Set of mounting elements (standoffs / screws)
