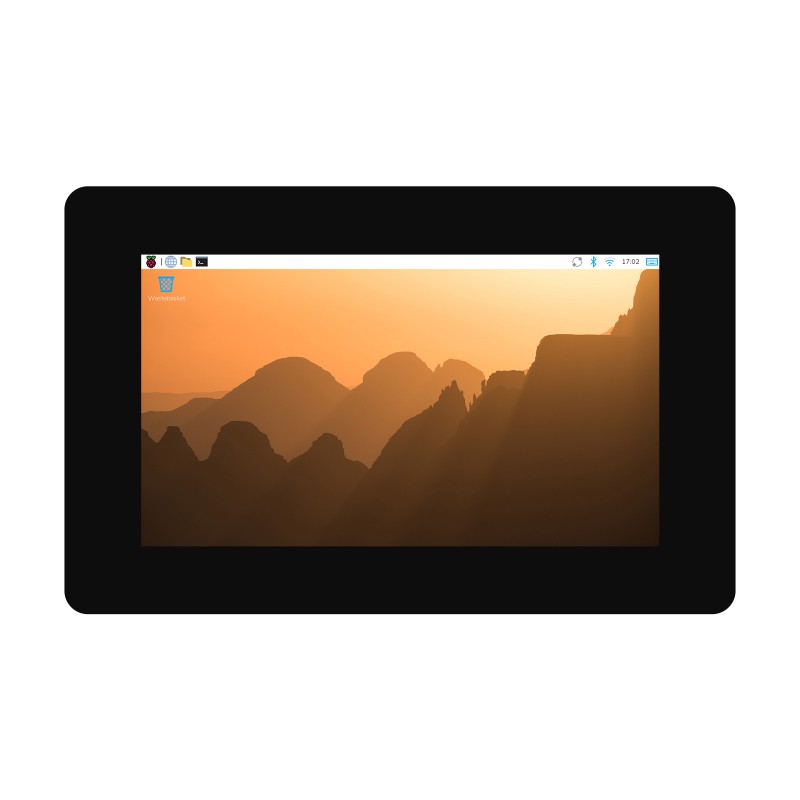

5" DSI 720x1280 IPS Waveshare 5-DSI-TOUCH-B touchscreen display
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
5" DSI 720×1280 IPS Touch Display - Optical Bonding, Tempered glass
High-quality 5-inch IPS display with a resolution of 720×1280 and a DSI interface, featuring full lamination (Optical Bonding) and 6H tempered glass. The device offers 5-point capacitive touch, software-controlled brightness, and a slim design with a thickness of only 8 mm. It works perfectly with platforms such as Raspberry Pi, ESP32-P4, and RK35xx series chips.
Key features:

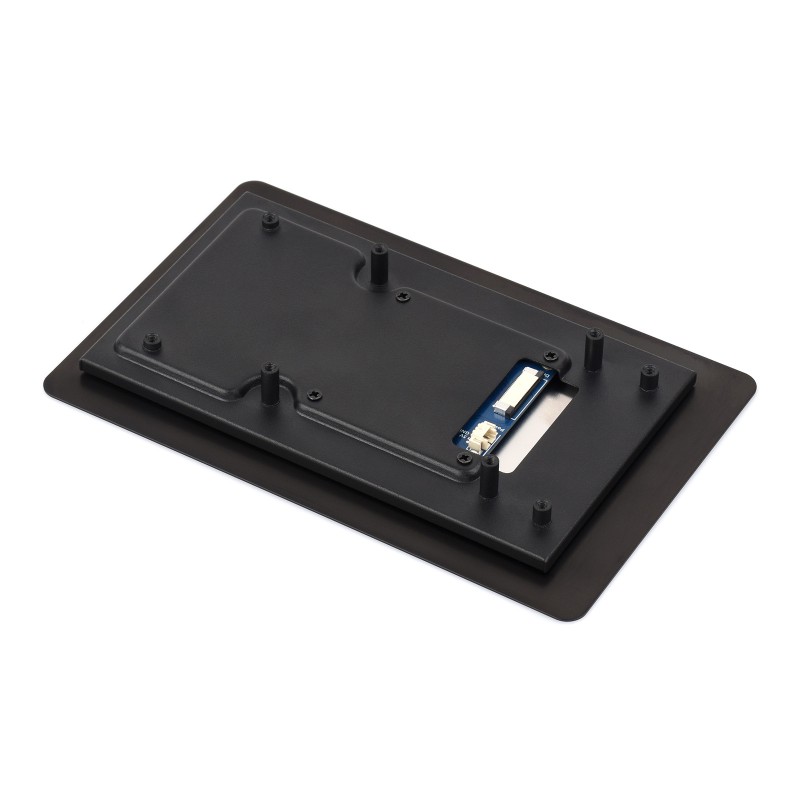

- IPS screen with a hardware resolution of 720×1280 and a viewing angle of 178°.
- 5-point capacitive touch protected by tempered glass with a hardness of 6H.
- Optical Bonding technology for better contrast and image clarity.
- DSI interface with a refresh rate of up to 60Hz.
- HX8394 display driver chip and GT911 touch controller.

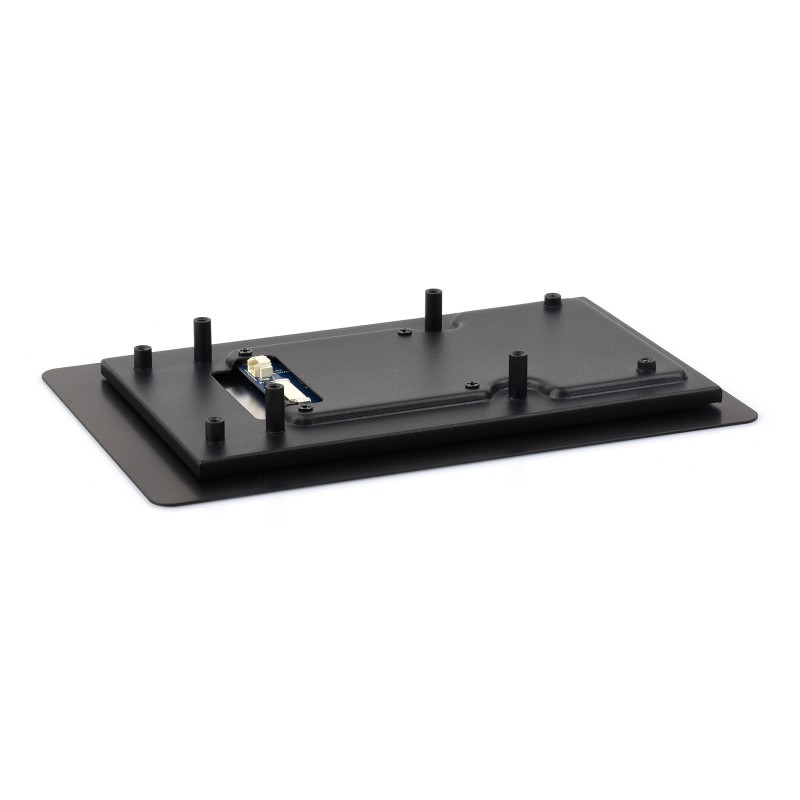

- Aluminum back casing for passive cooling and durability.
- Extremely slim design – the total thickness of the module is only 8 mm.
- Possibility of software control of backlight brightness.
Important information: Starting the display with a Raspberry Pi minicomputer requires making changes to the config.txt file. Detailed configuration instructions are available on the manufacturer's Wiki page.
Wide system compatibility
The module is designed to work with the most popular development platforms:
- Raspberry Pi: Support for Raspberry Pi OS, 5-point touch.

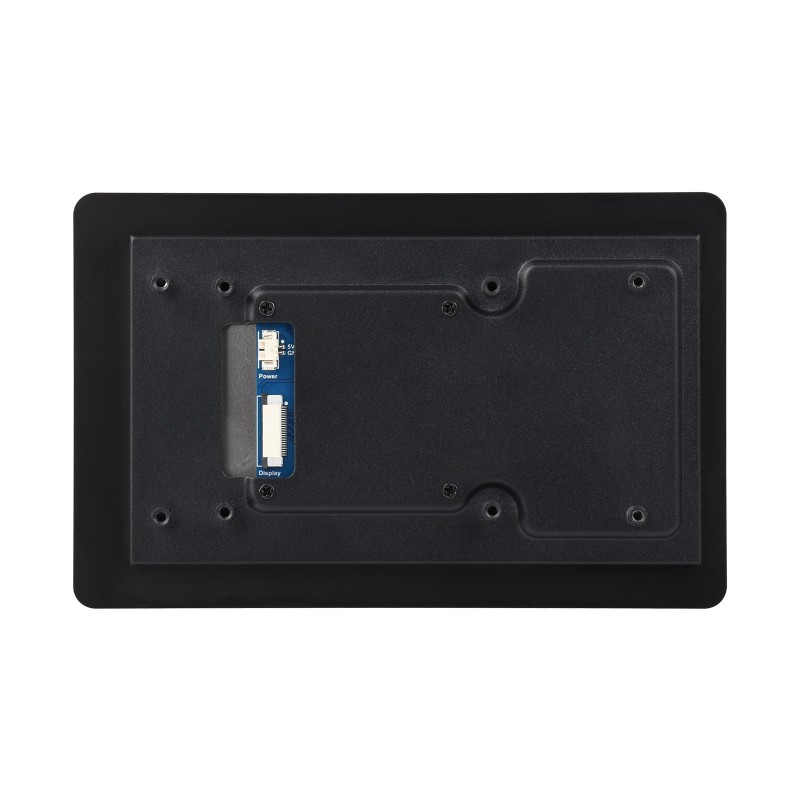

- ESP32-P4: Support for LVGL graphics programs.
- RK3506 / RK3576: Support for Buildroot, Debian, Ubuntu, and Android systems.
Connection examples

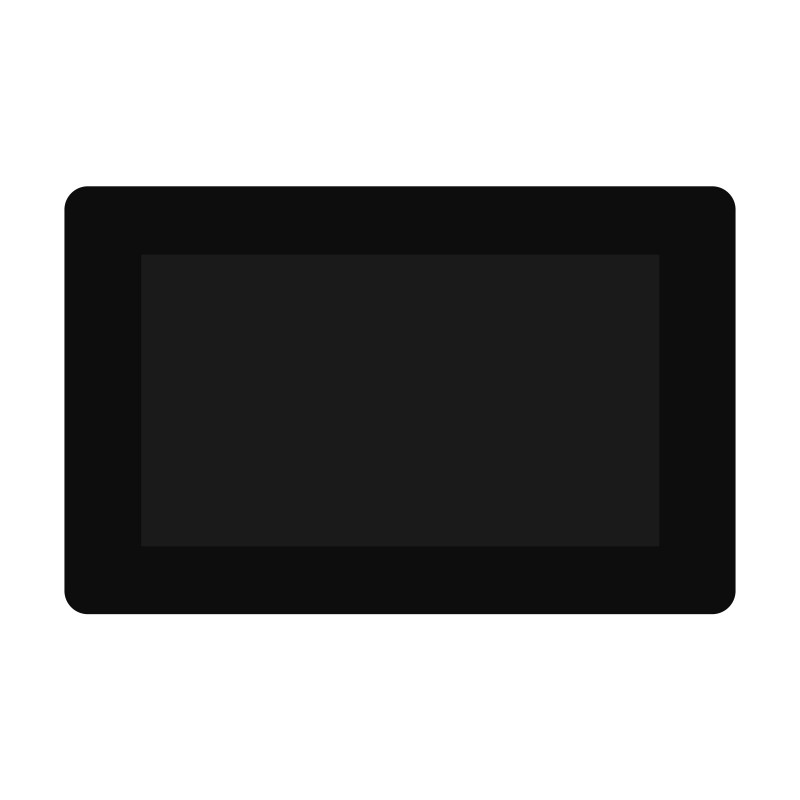

For Raspberry Pi 5, use an FFC cable and power the LCD via GPIO pins 5V. For Raspberry Pi 4B and the ESP32-P4-Module-DEV-KIT, the connection is made via dedicated DSI ribbons and power from the GPIO section.
Technical specification
- Diagonal: 5 inches
- Resolution: 720 × 1280 px
- Matrix type: IPS
- LCD controller: HX8394
- Touch controller: GT911
- Interface: DSI (MIPI)
- Thickness: 8 mm
- Glass hardness: 6H
- Cooling: Passive (aluminum)
- Refresh rate: 60Hz
Display interface
External dimensions
Kit contents
- 5-DSI-TOUCH-B display
- MIPI-DSI-Cable 12cm
- MX 1.25 2PIN to 2.54 3PIN cable
- FFC 22PIN ~200mm cable
- FFC 22PIN ~100mm cable
- MX1.25 2PIN to MX1.25 4PIN ~150mm cable
- Set of mounting standoffs
