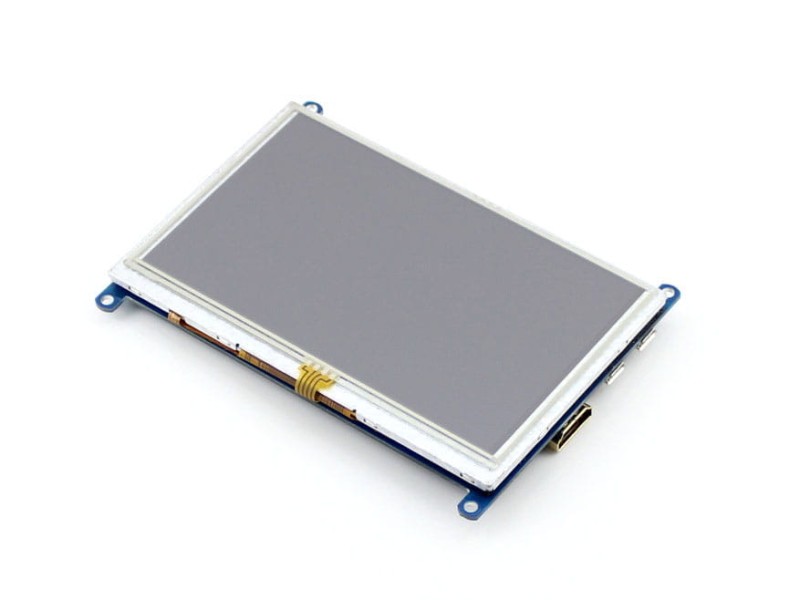

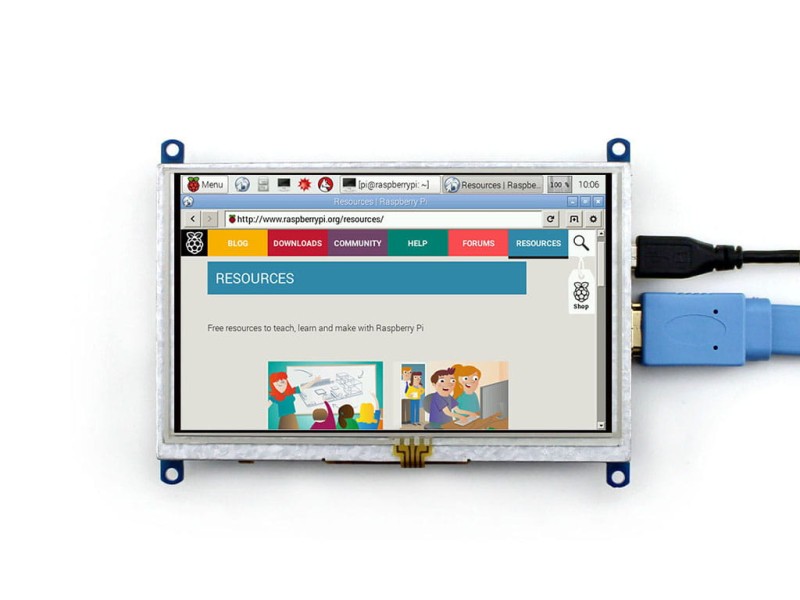

5inch HDMI LCD (B)
product unavailable
Description
Features
- 800×480 high resolution, touch control

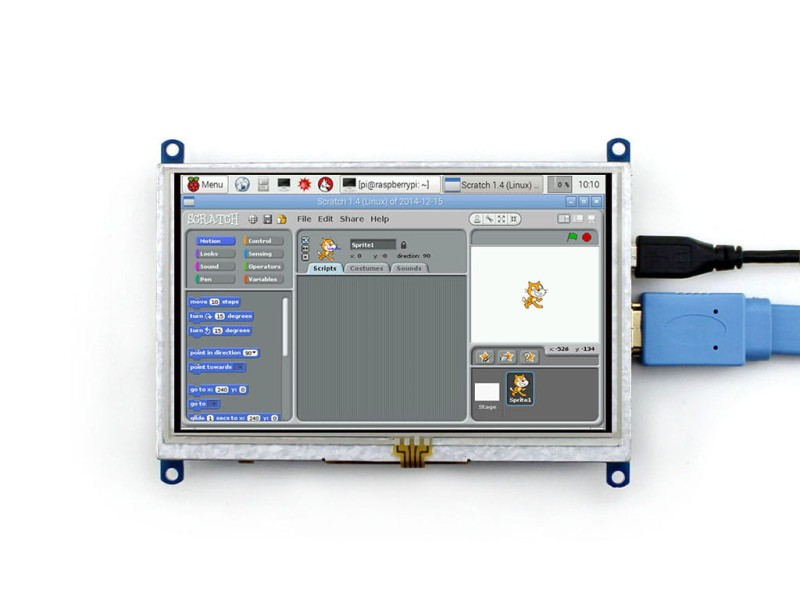

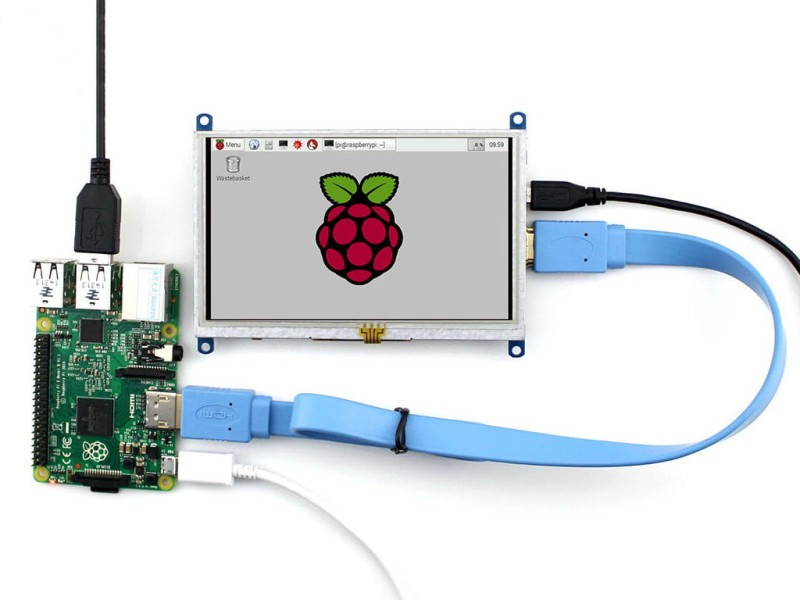

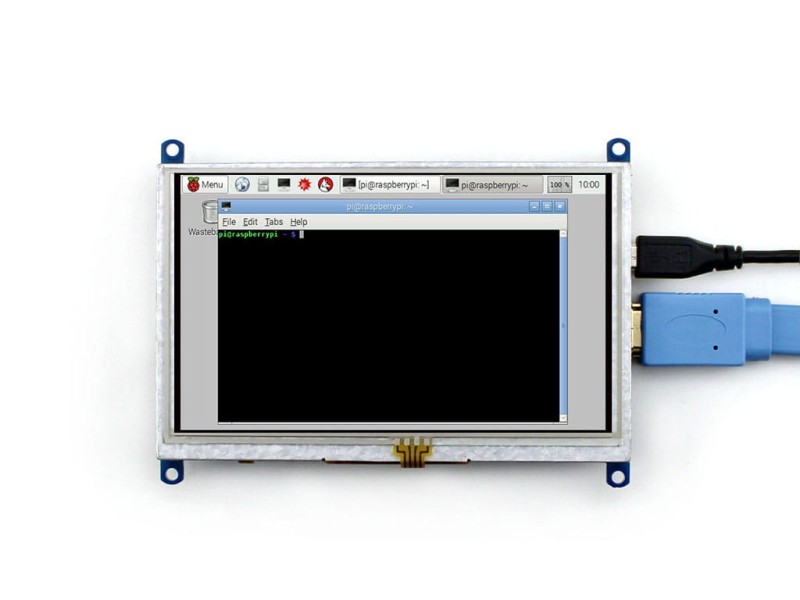

- Supports Raspberry Pi, and driver is provided (works with custom Raspbian directly)
- Supports BB Black, comes with related images like : Angstrom, Android4.2.2
- Supports Banana Pi / Banana Pro, comes with related images like : Lubuntu, Raspbian

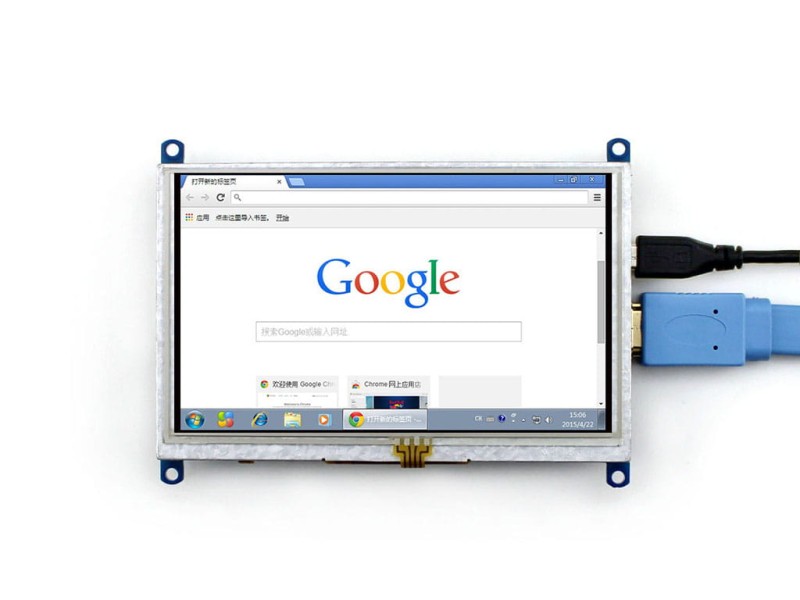

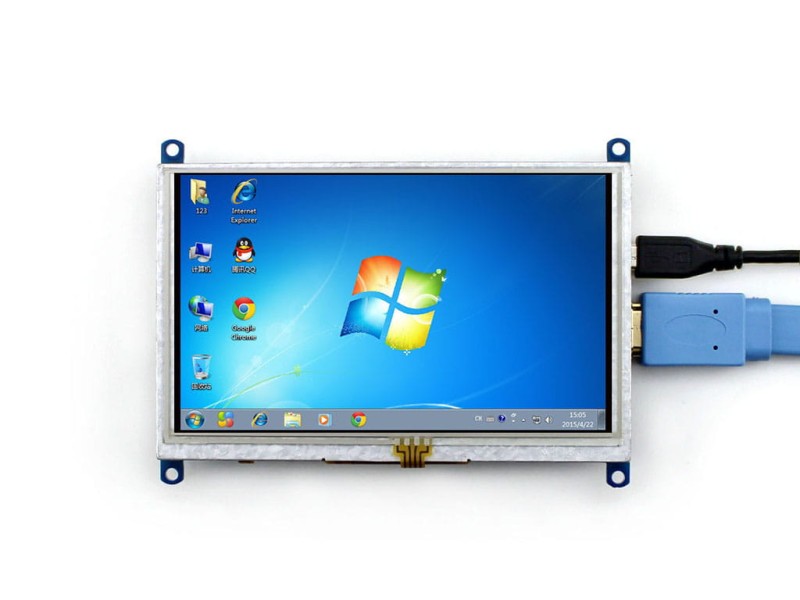

- Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen (touch function is unavailable in this case)

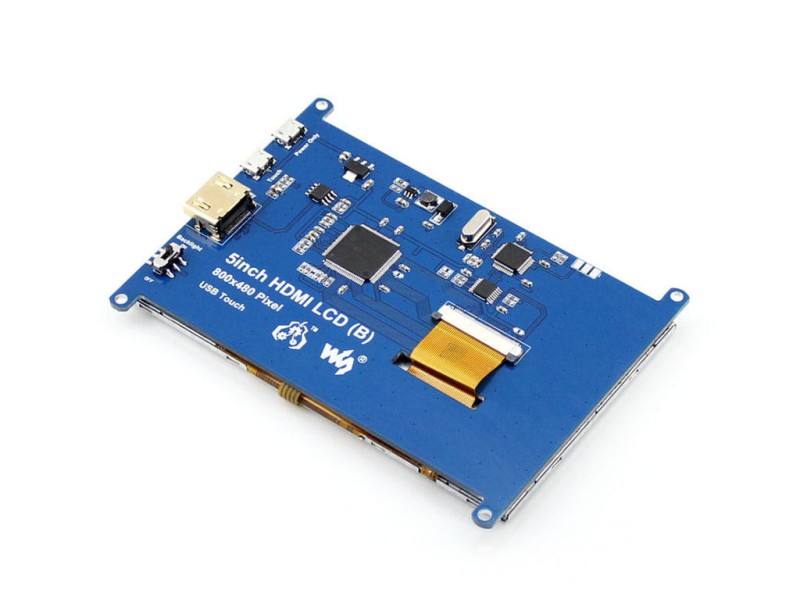

- HDMI interface for displaying, USB interface for touch control
- Back light control to lower power consumption

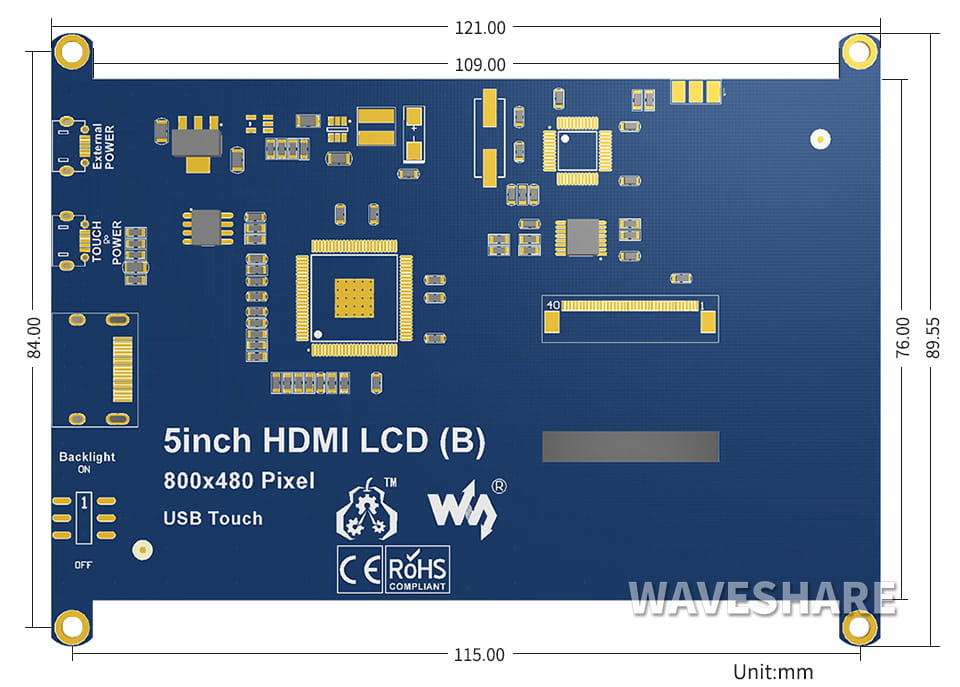

External Dimension
Package Contains
- 5inch HDMI LCD (B) x 1
- HDMI cable x 1
- Touch pen x 1
- USB type A plug to micro B plug cable x 1
- RPi screws pack (4pcs) x 1
- DVD × 1
Selection Guide
Part Number | Resolution | LCD Interface | Touch Panel Interface | Dimension | How you feel | Feature |
---|---|---|---|---|---|---|
3.2inch RPi LCD (B) | 320x240 | I/O | I/O | As the Pi | ★★ (well, unable to see the whole desktop, we tried the best...) |
Cheap |
3.5inch RPi LCD (A) | 320x480 | I/O | I/O | As the Pi | ★★★☆ (displays more) |
High cost performance |
4inch RPi LCD (A) | 320x480 | I/O | I/O | 95mm x 61mm | ★★★★ (displays more, and better enough) |
IPS screen |
5inch HDMI LCD | 800x480 | HDMI | I/O | 121mm x 78mm | ★★★★☆ (greater than greater) |
High definition |
5inch HDMI LCD (B) | 800x480 | HDMI | USB | 121mm x 76mm | ★★★★☆ (greater than greater) |
High definition, supports various systems |
