6-channel ZigBee relay module 3.0 16A DIN Tuya Home Assistant PN6
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

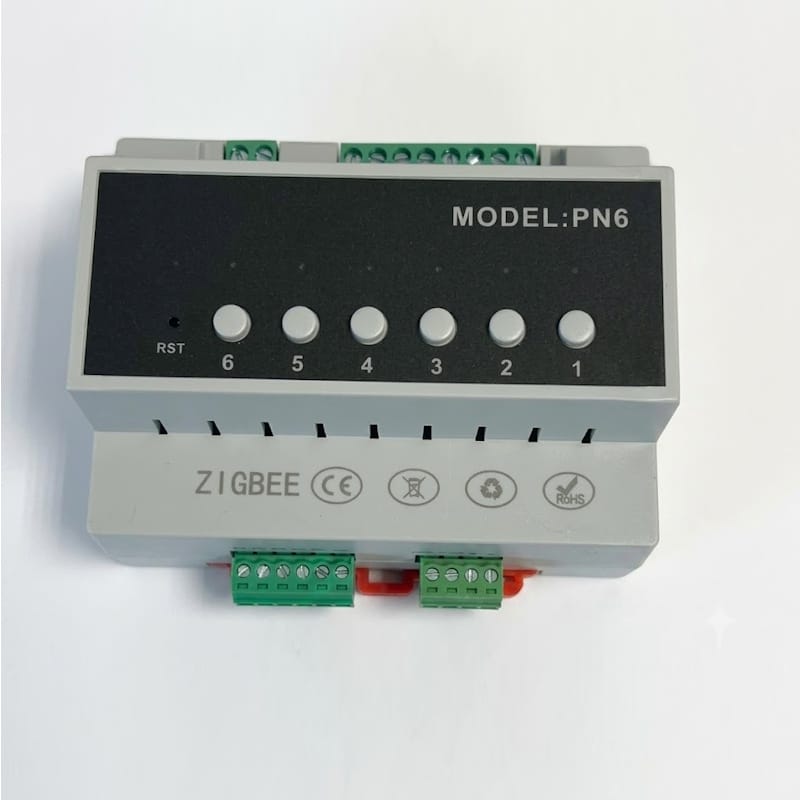

6-channel ZigBee relay module 3.0 for DIN rail Tuya / Home Assistant
The 6-channel ZigBee relay module is a versatile device designed to control the power supply of peripheral devices such as lighting, roller shutters, projectors, cameras, or advanced conference systems. Thanks to full compatibility with the Tuya Smart ecosystem and integration with Home Assistant, the controller serves as an excellent foundation for expanding a smart home and building automation, offering support for up to 16A per channel.
Key features:
- 6 independent relays 16A with built-in buttons for manual control.
- Two power supply modes for the module: 230V AC or 12V DC.
- Full compatibility with the Tuya Smart app (scene creation, remote control).
- Integration with Home Assistant (native support via zigbee2mqtt as ZSVIOT PN6).
- Support for standard monostable (bell) and bistable wall switches.

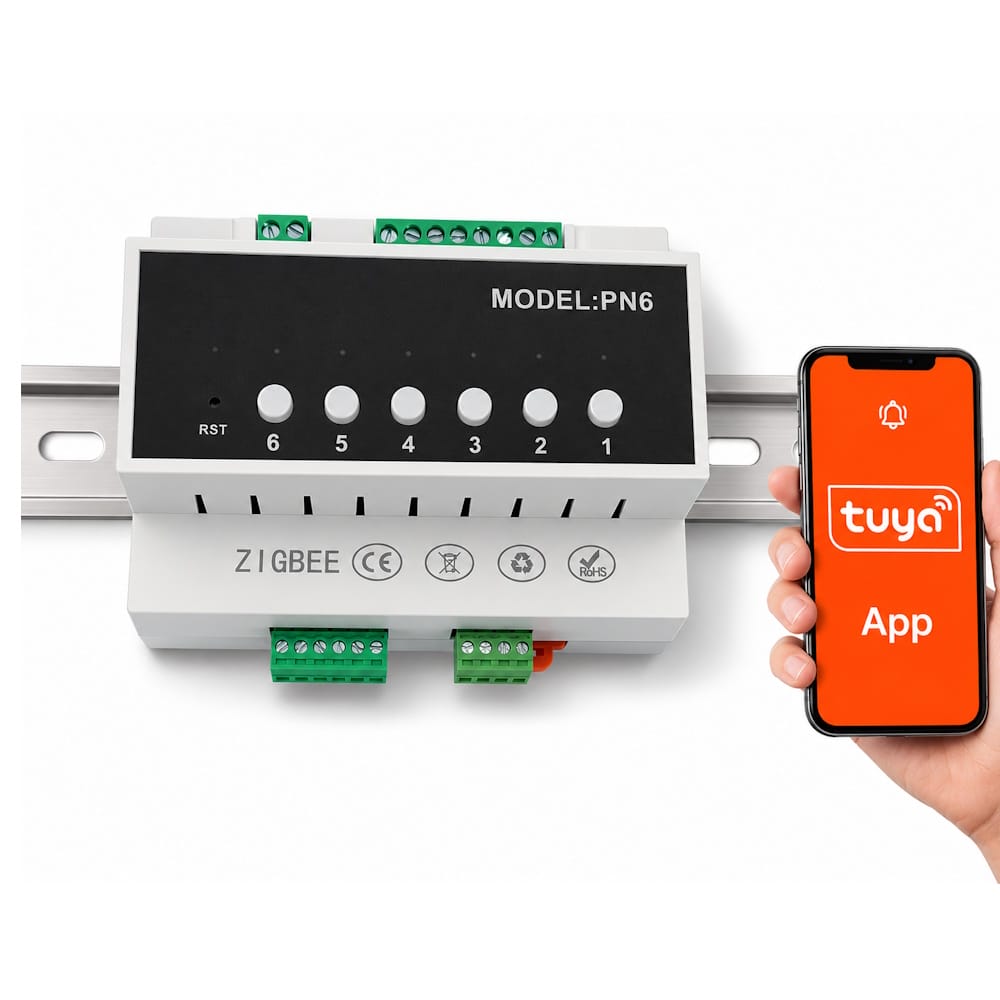

- Convenient and secure mounting on a standard DIN rail.
Requirements and wireless connectivity
For the controller to work properly a ZigBee gateway is required 3.0 (e.g., Tuya compatible). Communication based on the ZigBee standard ensures operational stability and the building of a Mesh network. The module is supported by zigbee2mqtt, which makes it ideal for projects based on Home Assistant.
Flexible connection and power options
The device is distinguished by exceptional configuration flexibility, adapting to the characteristics of the electrical installation:
- 230V AC power supply: Standard connection diagram where mains voltage 230V is applied to the relay outputs. Ideal for classic lighting control or roller shutter motors.
- 12V DC power supply (isolated circuits): In this mode, the module is powered by a 12V DC power supply. This allows for controlling devices operating at completely different voltages (e.g., 24V AC solenoid valves for garden irrigation control).
Technical specification
- Connectivity protocol: ZigBee 3.0 (built-in antenna)
- Ecosystem: Tuya Smart / Smart Life
- External integration: Home Assistant (zigbee2mqtt as ZSVIOT PN6)
- Number of supported circuits: 6
- Relay load capacity: 16A per channel
- Module power supply: 230V AC or 12V DC
- Mounting type: DIN rail 35mm
- Manual interface: Buttons for each channel on the front of the housing
- Status indicators: LEDs (channel and power status)
- Additional interfaces: 6 control inputs for external wall switches
Set contents
- 6-channel ZigBee relay module for DIN rail
