ESP32-P4-WIFI6 development module with 7" HMI touch display
HMI module based on the high-performance ESP32-P4 (RISC-V) microcontroller with a 7-inch capacitive IPS touch screen with a resolution of 720 × 1280. The board is a fully integrated solution – it features a built-in 5MP front camera, Wi-Fi 6 and BLE 5 communication module, as well as dual microphones and an audio system.
Key features:
- High-performance ESP32-P4 microcontroller with 32-bit RISC-V architecture.
- IPS display 7" (720 × 1280) with a tempered glass panel and precise 10-point touch.
- Built-in 5MP front camera (OV5647).
- Wi-Fi 6 and Bluetooth 5 (LE) thanks to the built-in ESP32-C6 module.
- Integrated audio system with dual microphone (hardware echo cancellation) and support for an external speaker.
- Built-in memory: 32MB PSRAM integrated into the chip and additional 32MB Nor Flash on the board.
- Extensive peripheral interfaces: USB 2.0 OTG HS, microSD (TF) card slot, MIPI-CSI connectors.
- Advanced security features: Secure Boot, Flash encryption, TRNG, and hardware cryptographic accelerators.
- Durable metal back housing for easy heat dissipation and mounting.
Integrated 5MP front camera
The module is equipped with a high-quality OV5647 sensor (1/4 inch) with a 72.9° field of view, located in the front part of the frame. It allows for capturing static images at a resolution of up to 2592 × 1944 pixels and video recording (including 1920 × 1080p @ 30fps). It provides an excellent base for projects related to video doorbells, face recognition, or monitoring.
Extensive audio path and excellent cooling
On board is an advanced ES8311 audio codec connected to a dedicated ES7210 echo cancellation chip. Together with the dual microphone array, the board guarantees high-quality recorded sound and effective ambient noise suppression. The entire electronics assembly is covered by a solid, fully metal housing that acts as a large heatsink and ensures stable operation even during intensive use of the P4 processor.
Board layout
- ESP32-P4 core: integrated ESP32-P4NRW32 and 32MB of Nor Flash memory
- ESP32-C6-MINI-1U-H8 module: SDIO interface protocol, extending communication with Wi-Fi 6 / Bluetooth 5 (LE)
- MIPI CSI interface: 15PIN connector (pitch 1.0mm) for connecting a MIPI camera (2-lane)
- 4PIN solder pads (pitch 2.54mm): for flashing the ESP32-C6 module firmware
- Speaker connector: pitch 1.25mm, 2PIN
- Touch panel connector
- DSI display connector
- ES8311 audio codec chip: low-power chip for audio encoding and decoding
- ES7210 echo cancellation chip: chip with echo cancellation algorithm, improving sound recording precision
- TF (microSD) card slot: SDIO interface protocol 3.0
- Battery connector (Batt): JST 1.25mm, 2PIN
- Board-to-Board signal transmission interfaces: for FPC cable 16PIN (pitch 0.5mm)
- Board-to-Board power and ground interfaces: for adapter cable 4PIN (pitch 1.25mm)
- Built-in microphones: dual microphone array

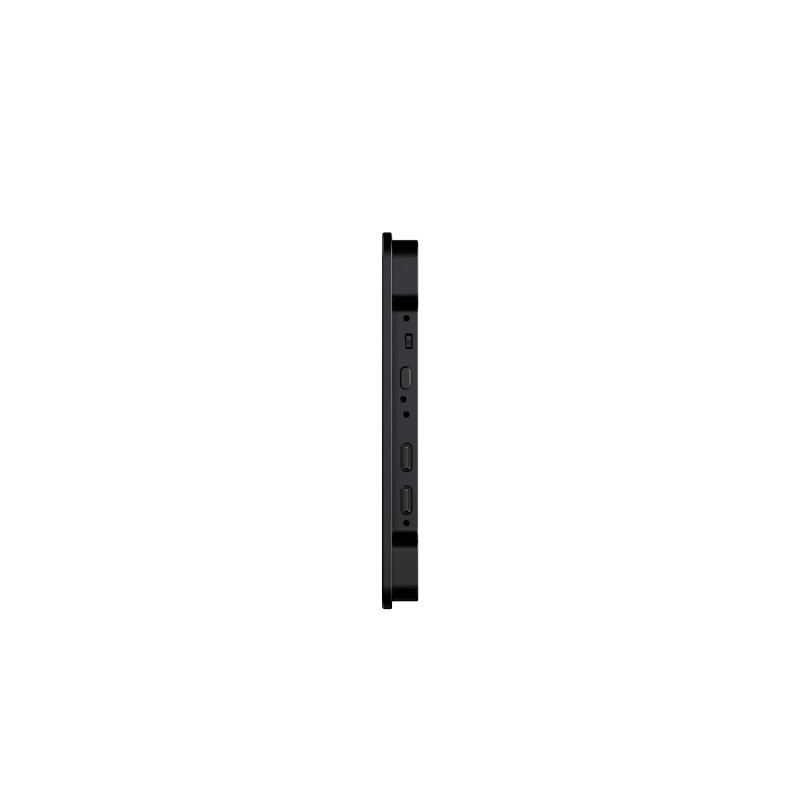

- USB TO UART port (Type-C): for power, programming, and debugging
- USB OTG port (Type-C): support for USB OTG 2.0 High Speed interface
- ON/OFF power switch
- BOOT button: press while powering on or resetting to enter firmware flashing mode
- RESET button
- Two-color PWR & Charge indicator: power and battery charging indicator
- 40PIN connector
PIN headers and dimensions
Technical specification
- Screen diagonal: 7 inches (IPS)
- Resolution: 720 × 1280 pixels
- Brightness: 450 cd/m²
- Viewing angle: 170°
- Display driver: ILI9881C
- Touch driver: GT9271 (10-point)
- Operating temperature: 0°C ~ 60°C
- Camera sensor: OV5647 (CMOS 1/4")
- Camera resolution: 5MP
- Aperture / Focal length: F2.4 / 3.89 mm
- Field of view (FOV): 72.9°
- Distortion: < 1.5%
- Depth of field (DOF) range: 20 cm ~ ∞
- Video resolution: up to 1080p @ 30 fps
Kit contents
- ESP32-P4-WIFI6-Touch-LCD-7 x1
- Mounting hardware kit (4 pieces of clips) x1
- Screw set x1
- Power cable 2PIN (~80 mm) x1
